Fluid Diagrams

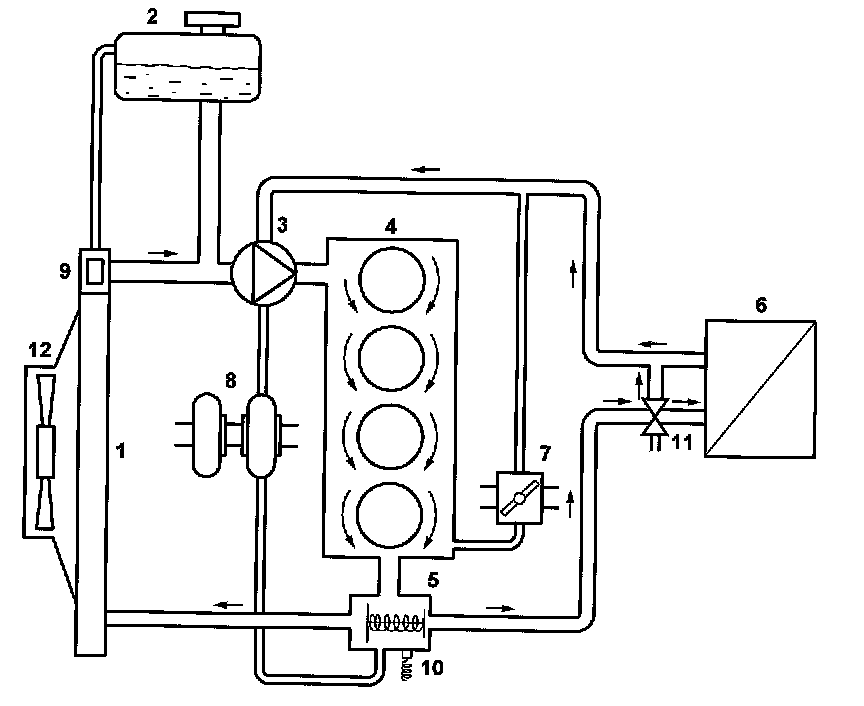

Cooling system diagram
1. Radiator
2. Coolant reservoir
3. Coolant pump
4. Engine
5. Thermostat housing
6. Heat exchanger, cabin
7. Throttle body
8. Turbocharger
9. Oil cooler (aut. only)
10. Engine temperature sensor
11. Shut-off valve
12. Radiator fan
