Grounding Point G7
Grounding Point G7
Location:
On side of intake manifold to cylinder 4.

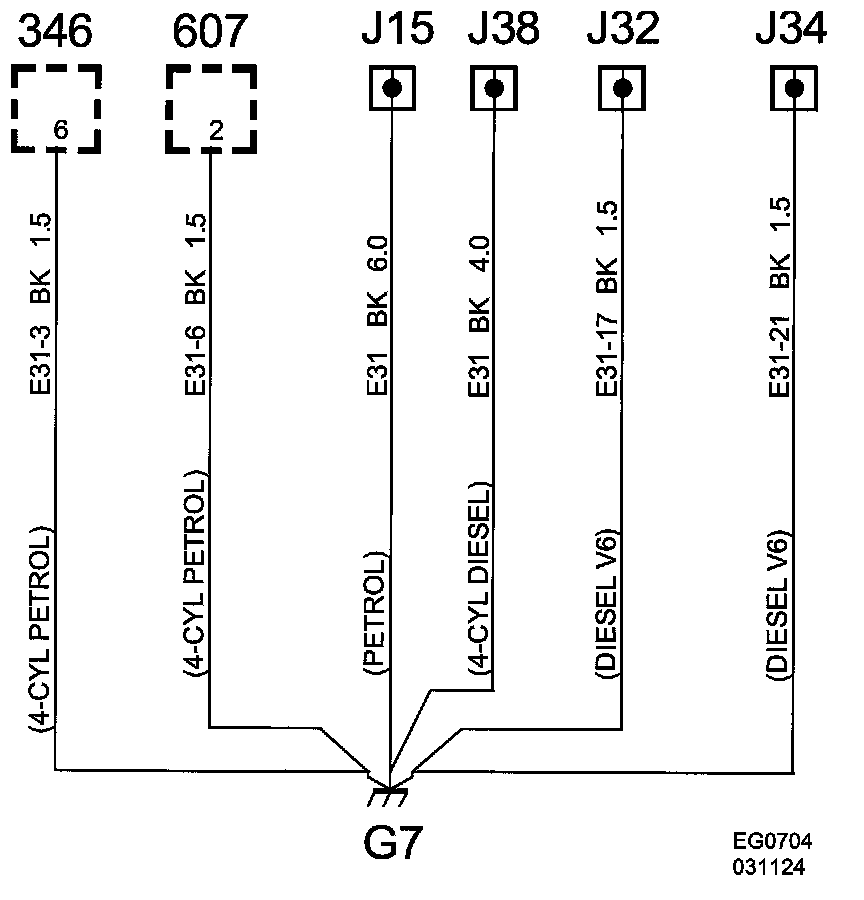

Grounding Point G7, 4-cyl. Petrol:

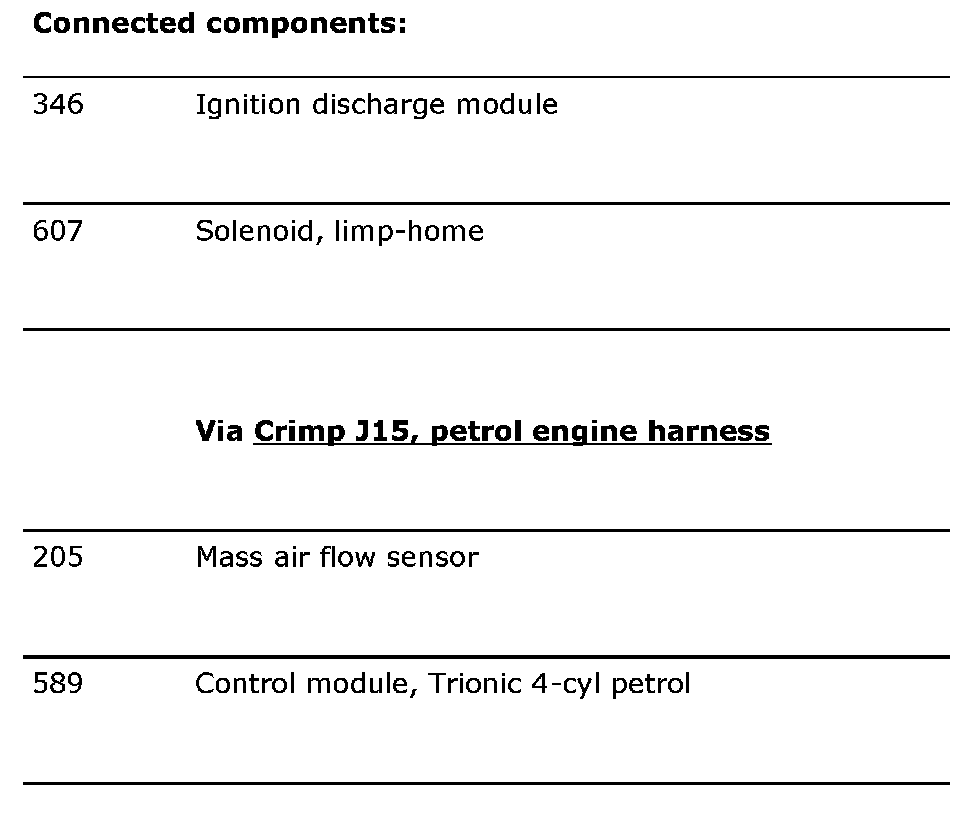

Connected Components:
