Grounding Point G46 (Wagon Only)
Grounding Point G46 (Wagon Only)
Location:
On side panel by filler cap opening.

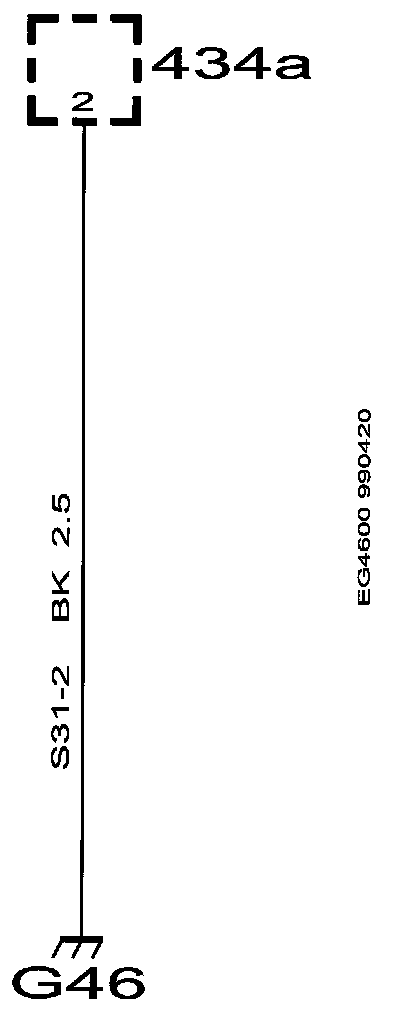

Grounding Point G46 (5D Only):

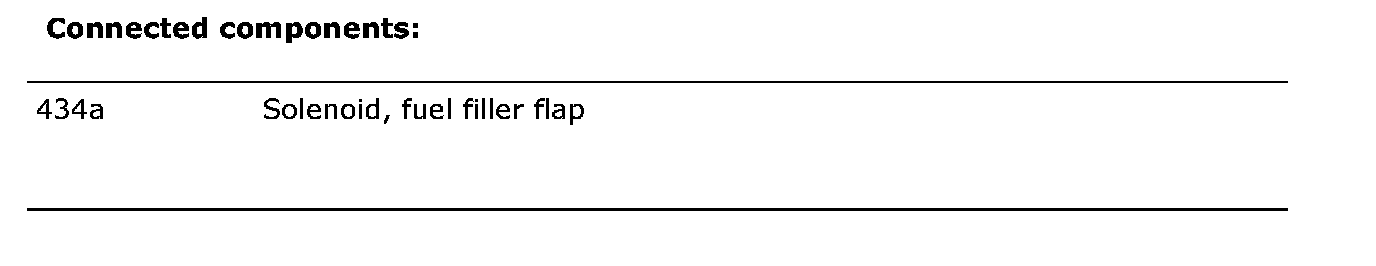

Connected Components:
