Grounding Point G44 (Sedan Only)
Grounding Point G44 (Sedan Only)

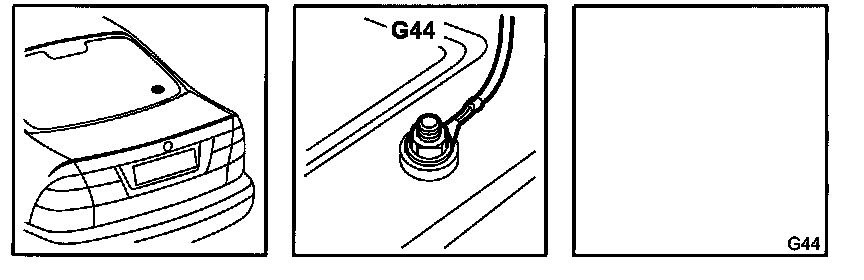

Location:
Above the parcel shelf by the right-hand speaker.

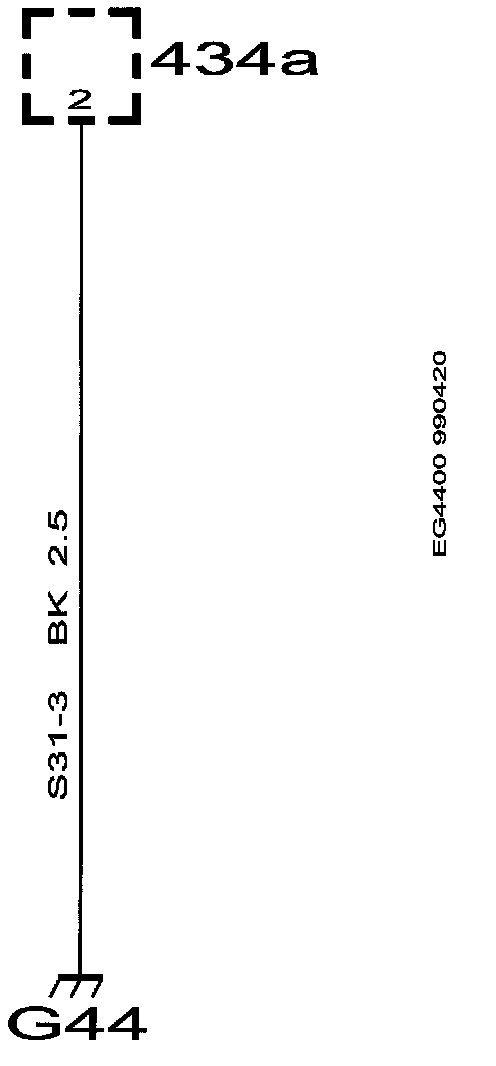

Grounding Point G44 (4D Only):

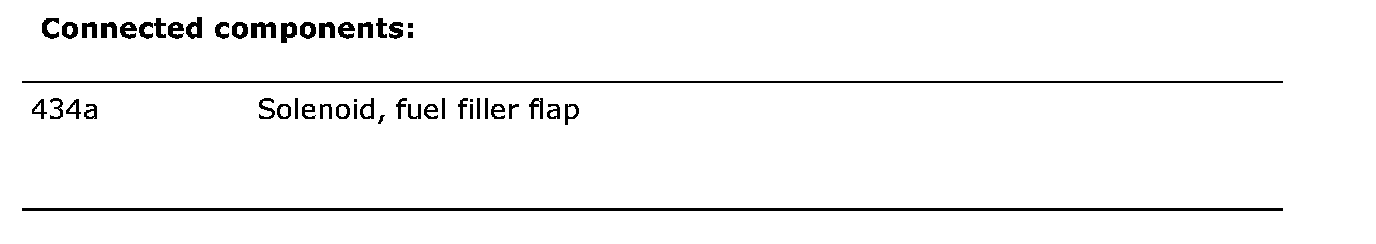

Connected Components:
