Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Grounds >> Grounding Point G31

Grounding Point G31

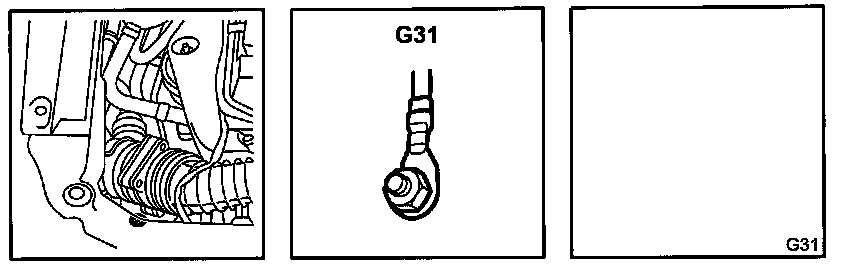

Location: On the RH structural member behind the headlamp.

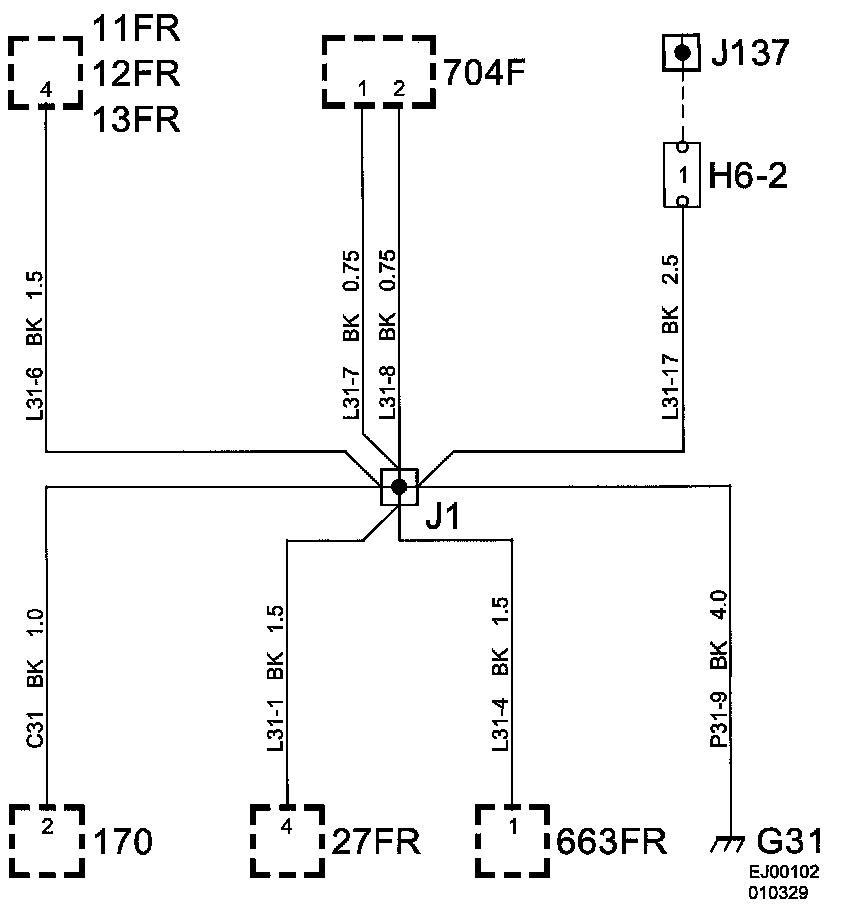

Grounding Point G31:

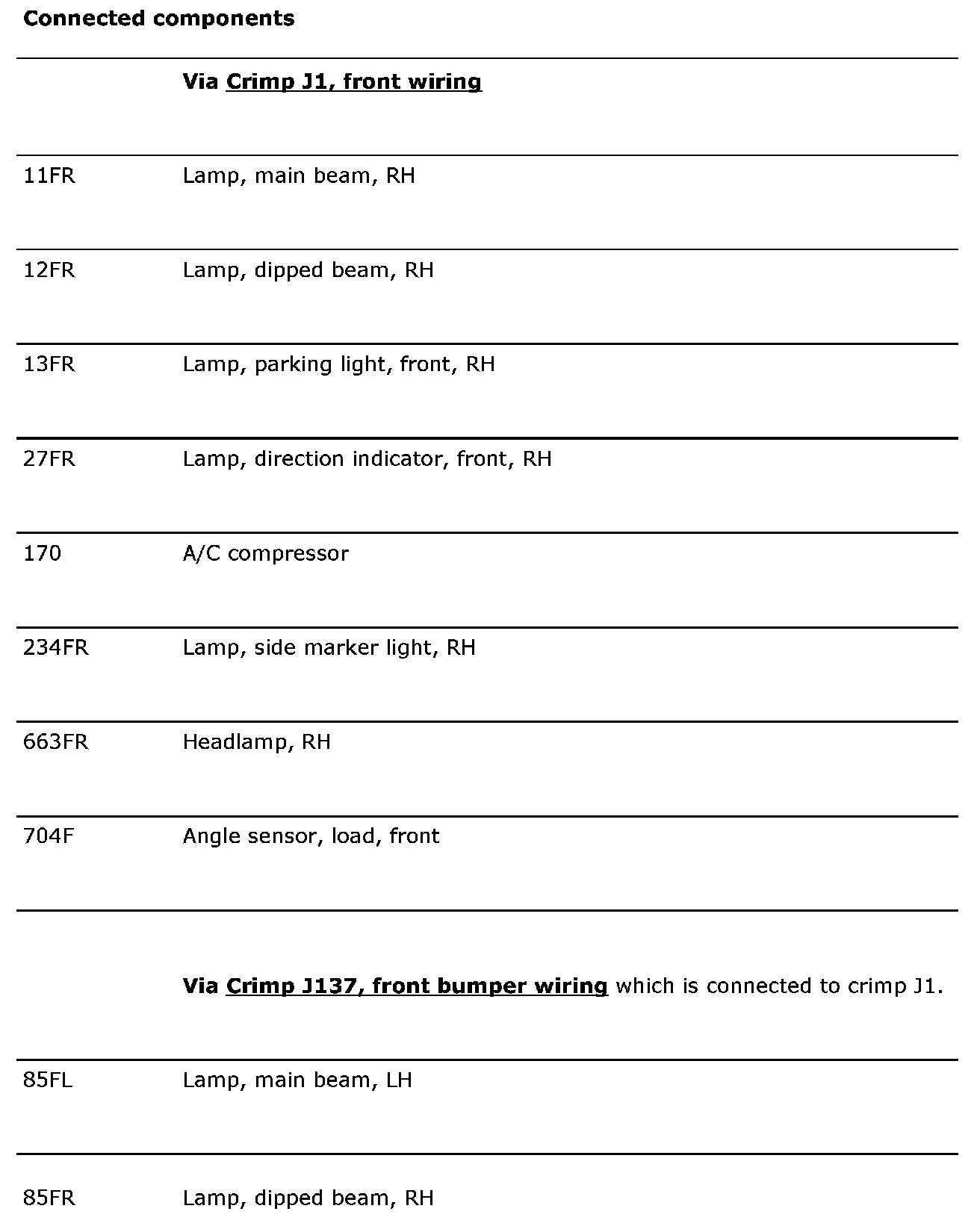

Connected Components:
