Trionic T7 Engine Management System (Part 2/4)

Trionic T7 Engine Management System (Part 2/4):

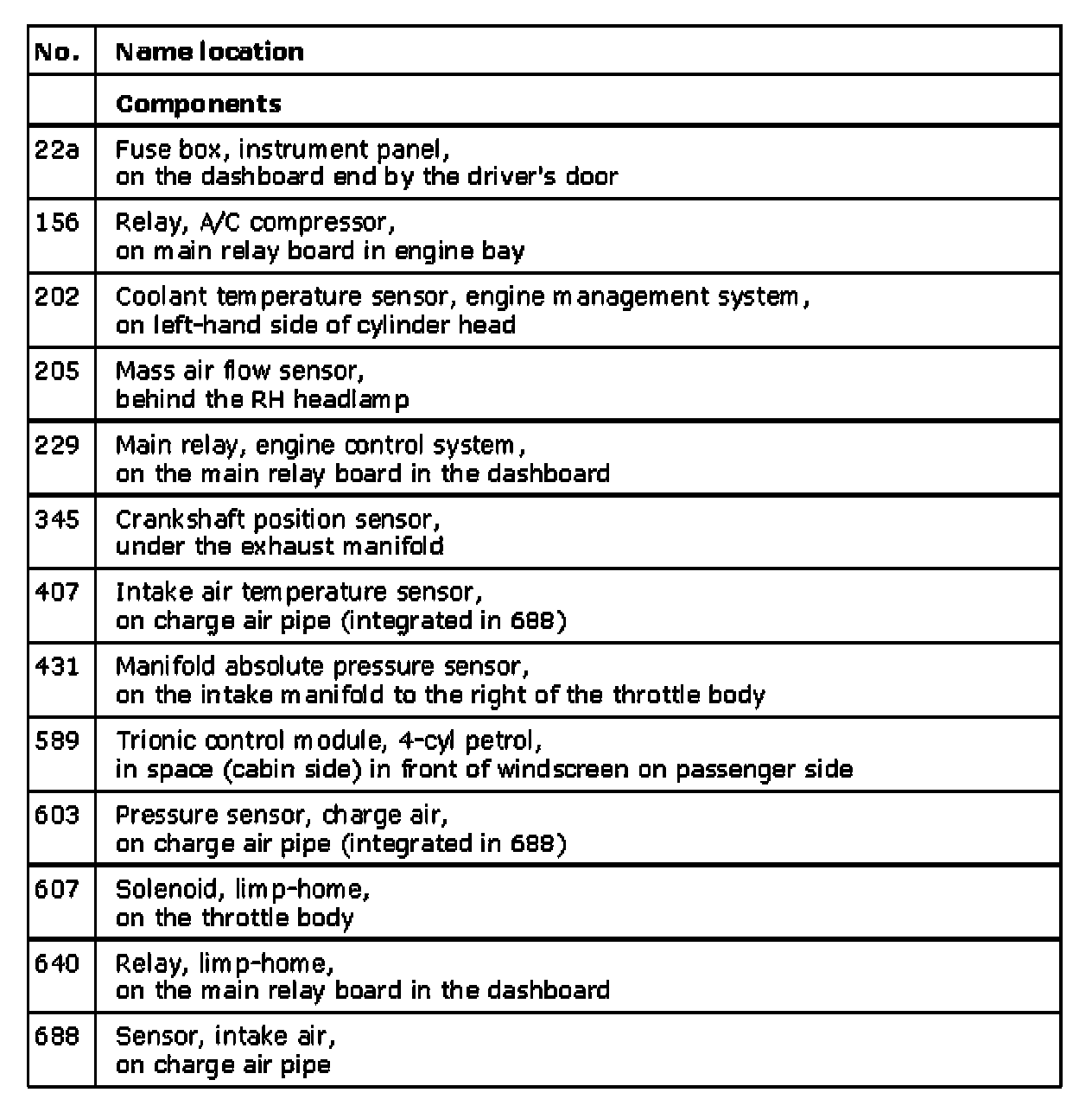

List Of Components (Part 1):

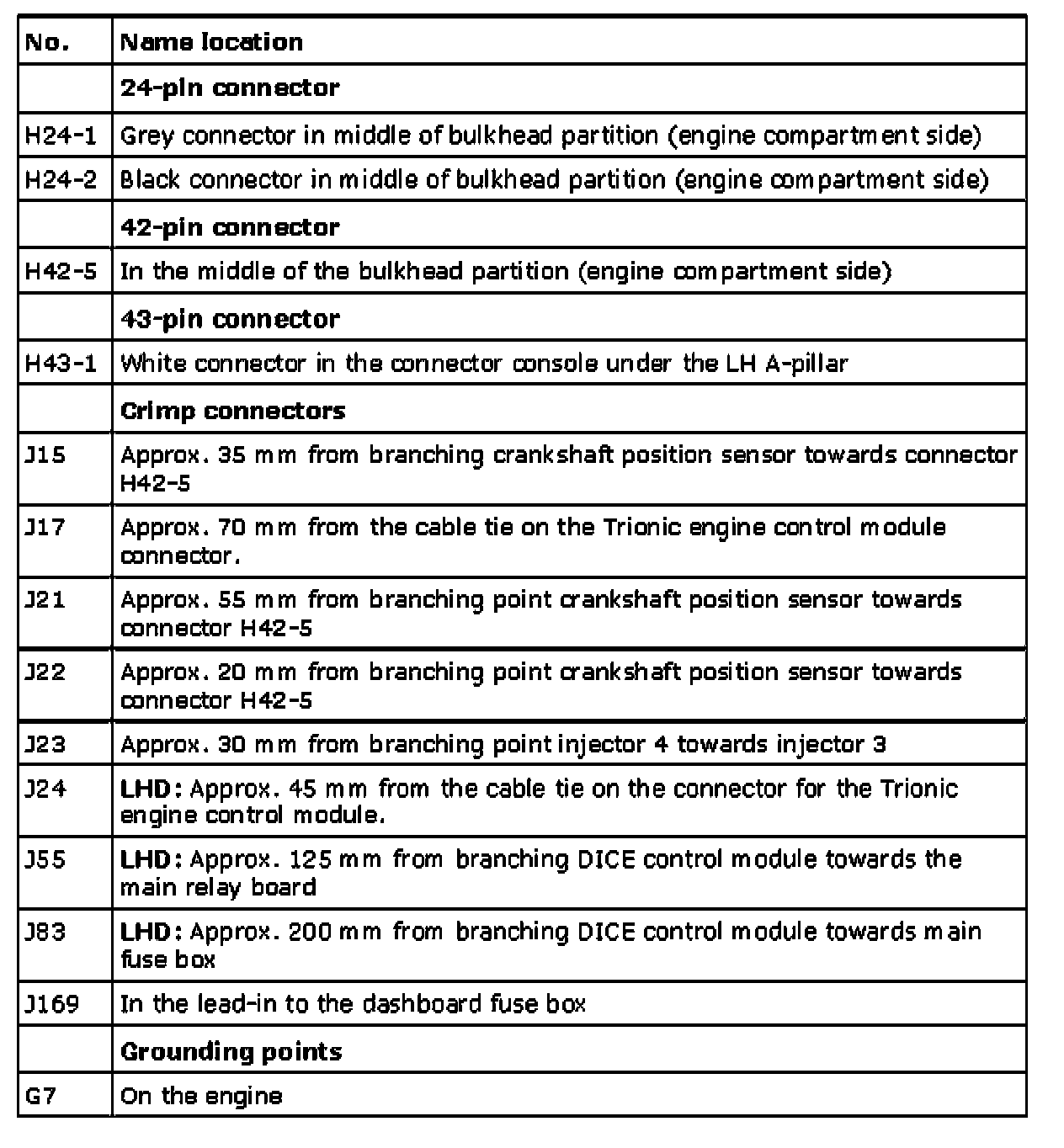

List Of Components (Part 2):

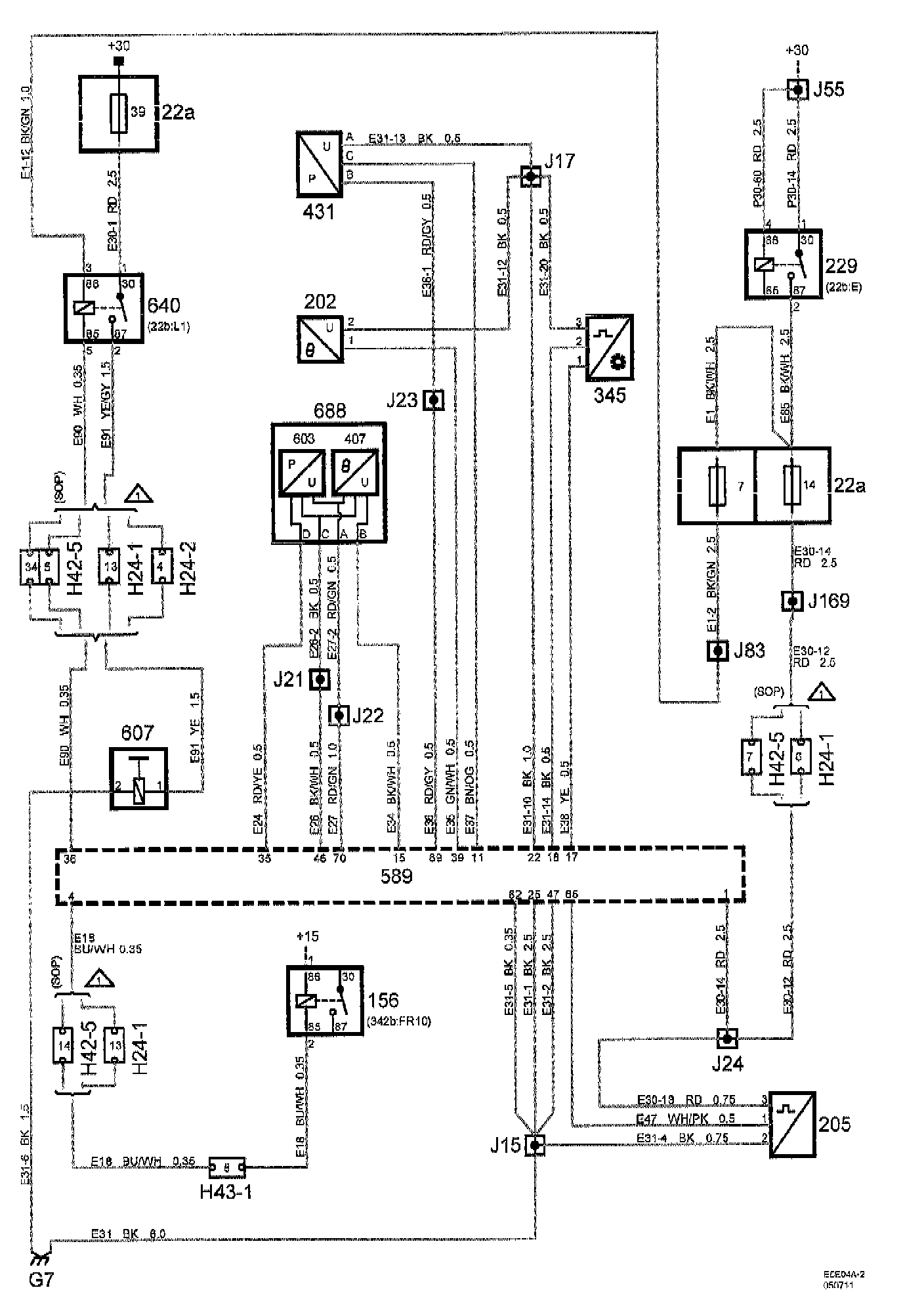

Note: The designation SOP on the wiring diagram refers to the Start Of Production, the triangle with the 1 inside refers to the 1st revision.

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
