Control Assembly, HVAC

Automatic Climate Control (ACC)







1. Seat ventilation
2. Heated seats
3. Passenger Presence System (PPS)

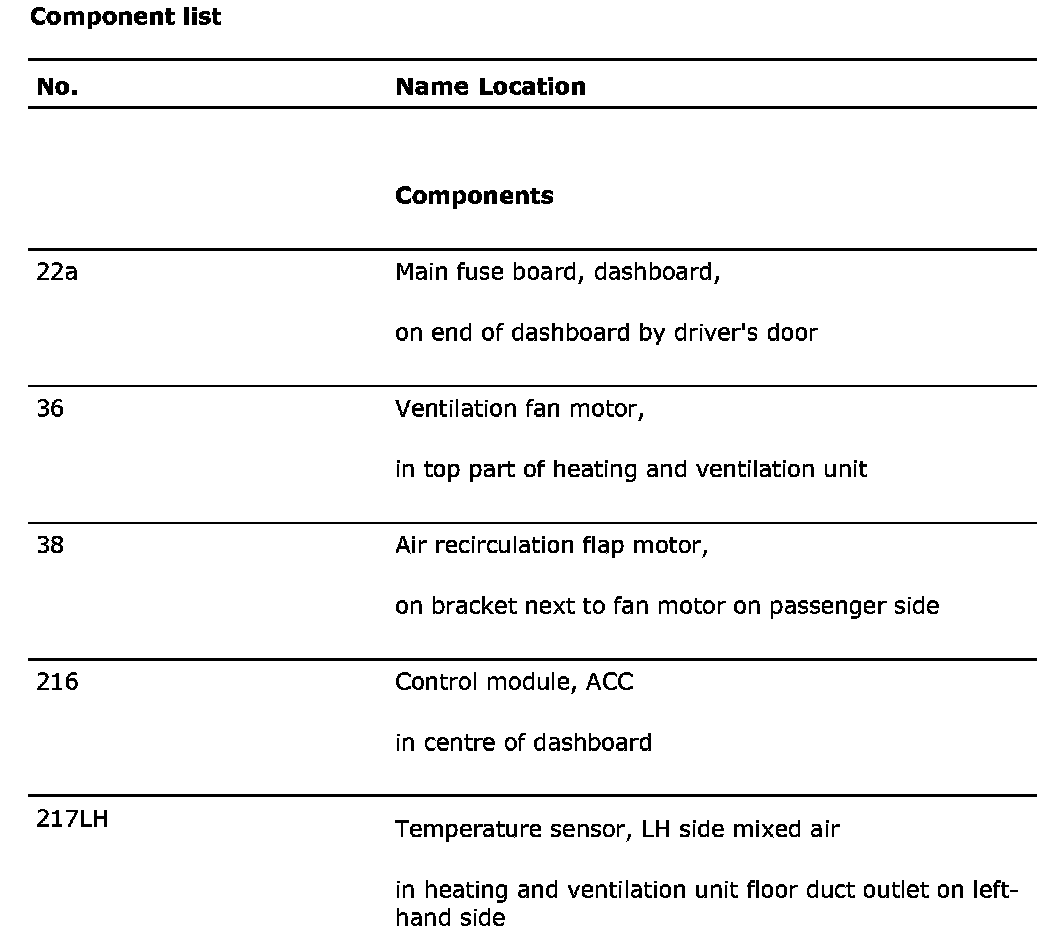

Component List (Part 1):

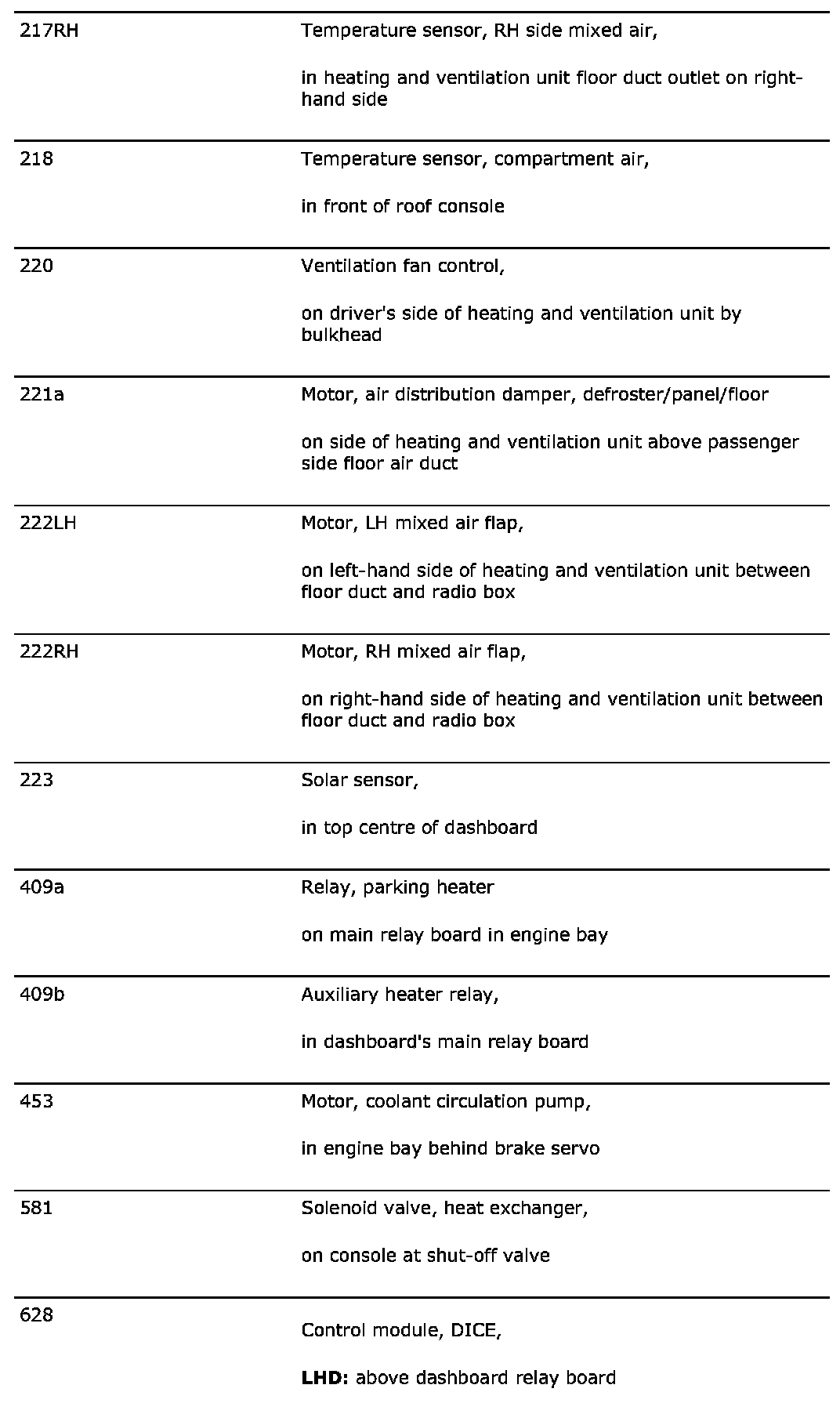

Component List (Part 2):

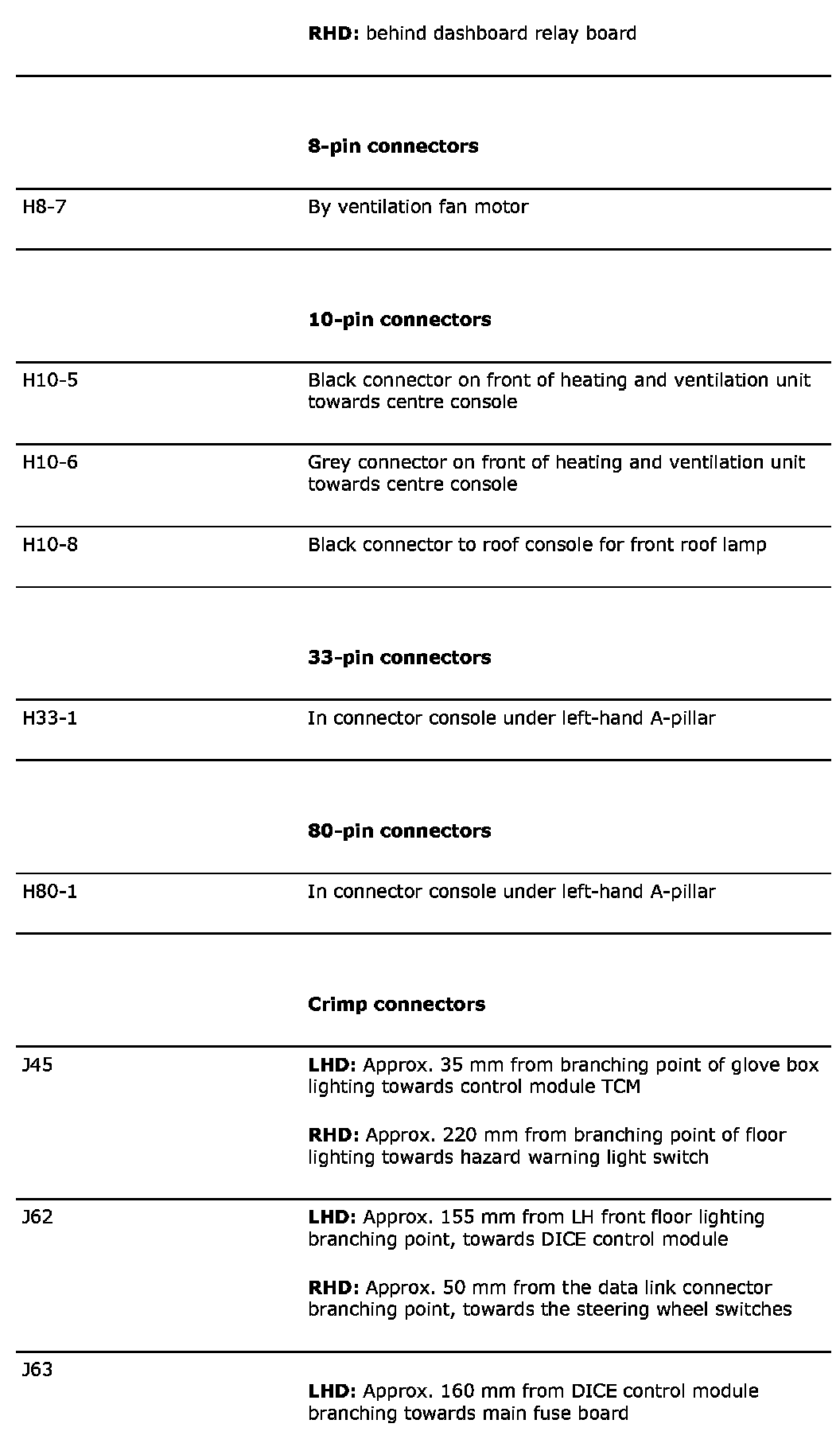

Component List (Part 3):

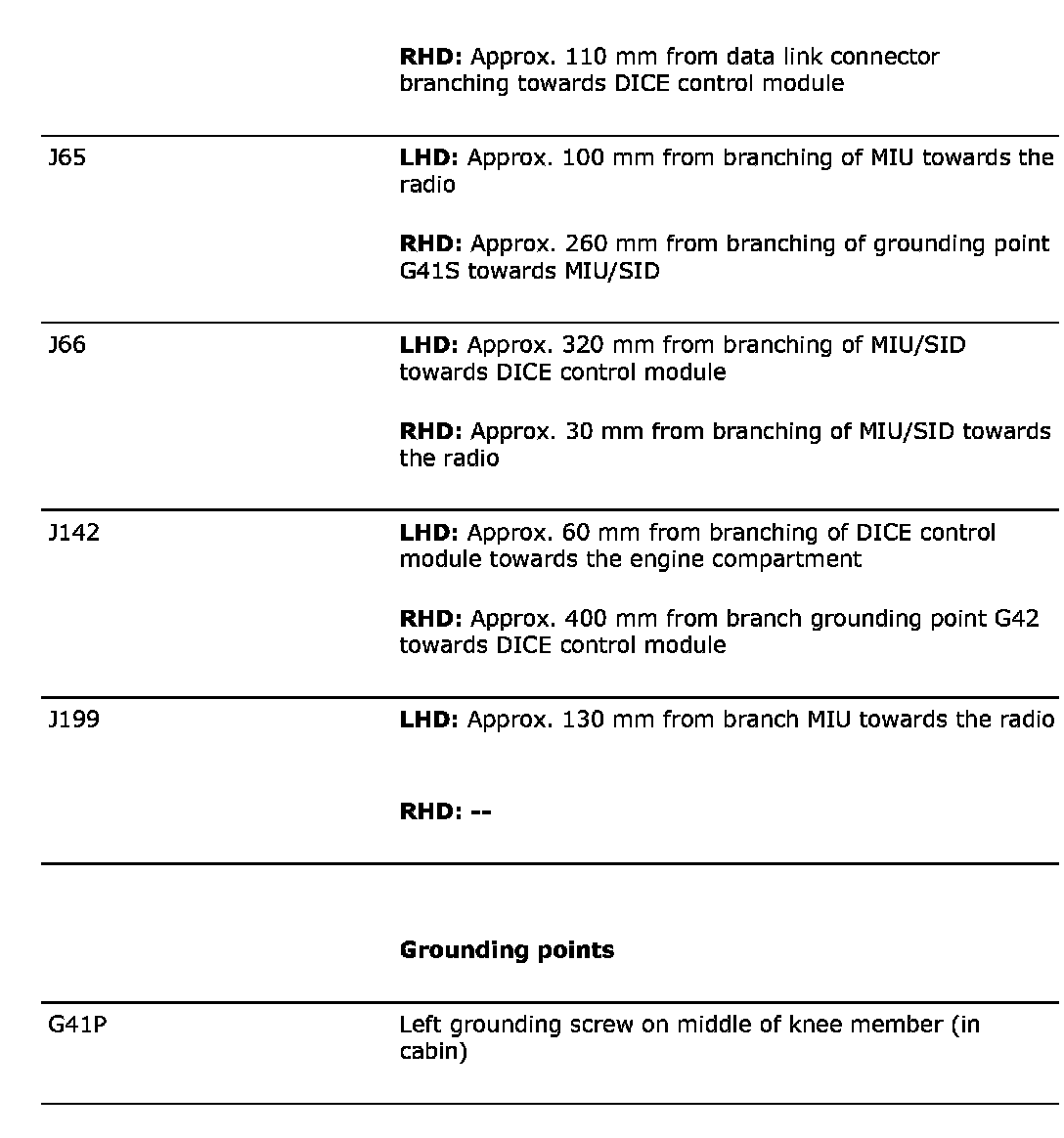

Component List (Part 4):
