Automatic Headlamp Beam Adjustment, Xenon Headlamps

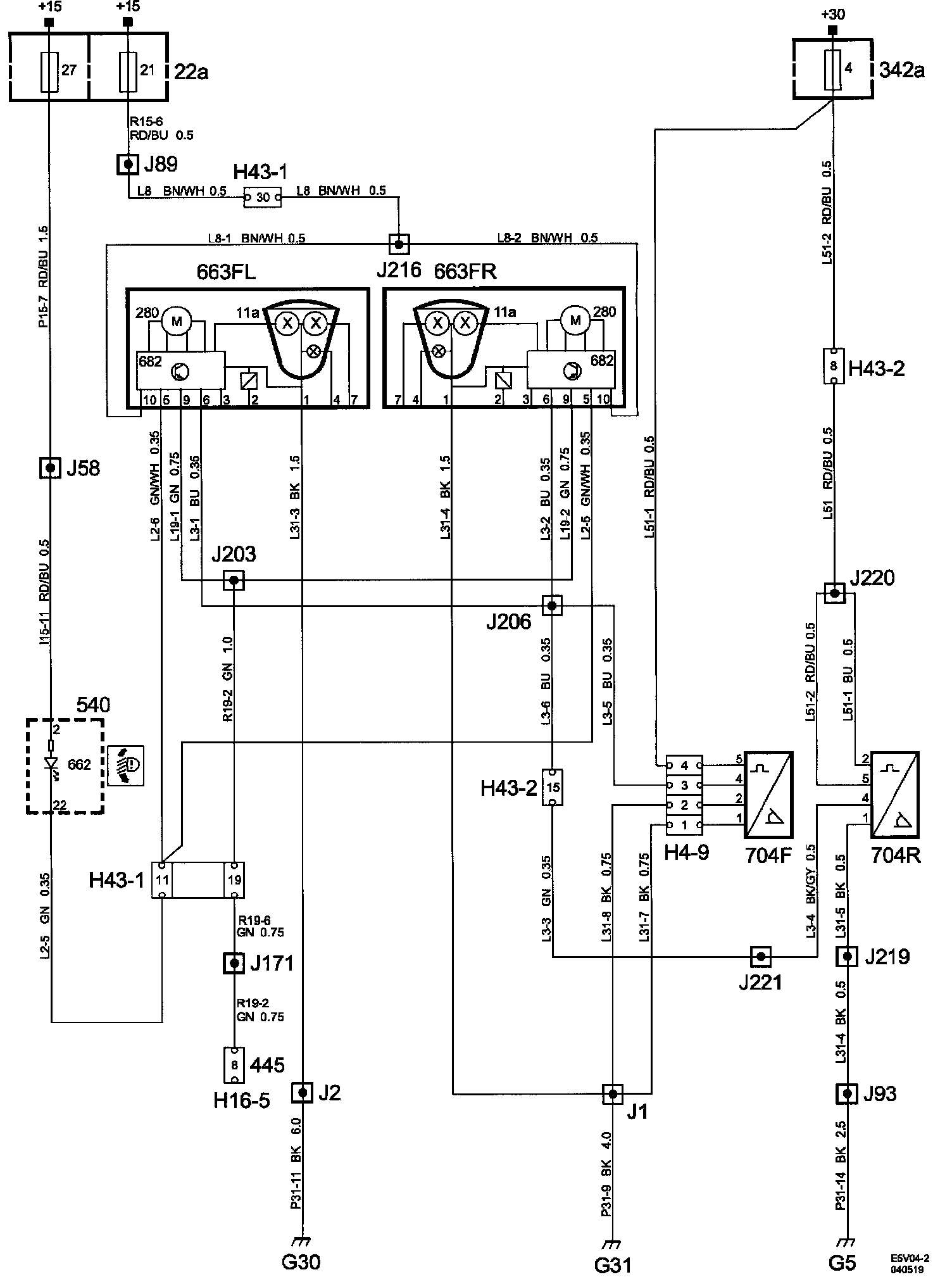

Automatic Headlamp Beam Adjustment, Xenon Headlamps:

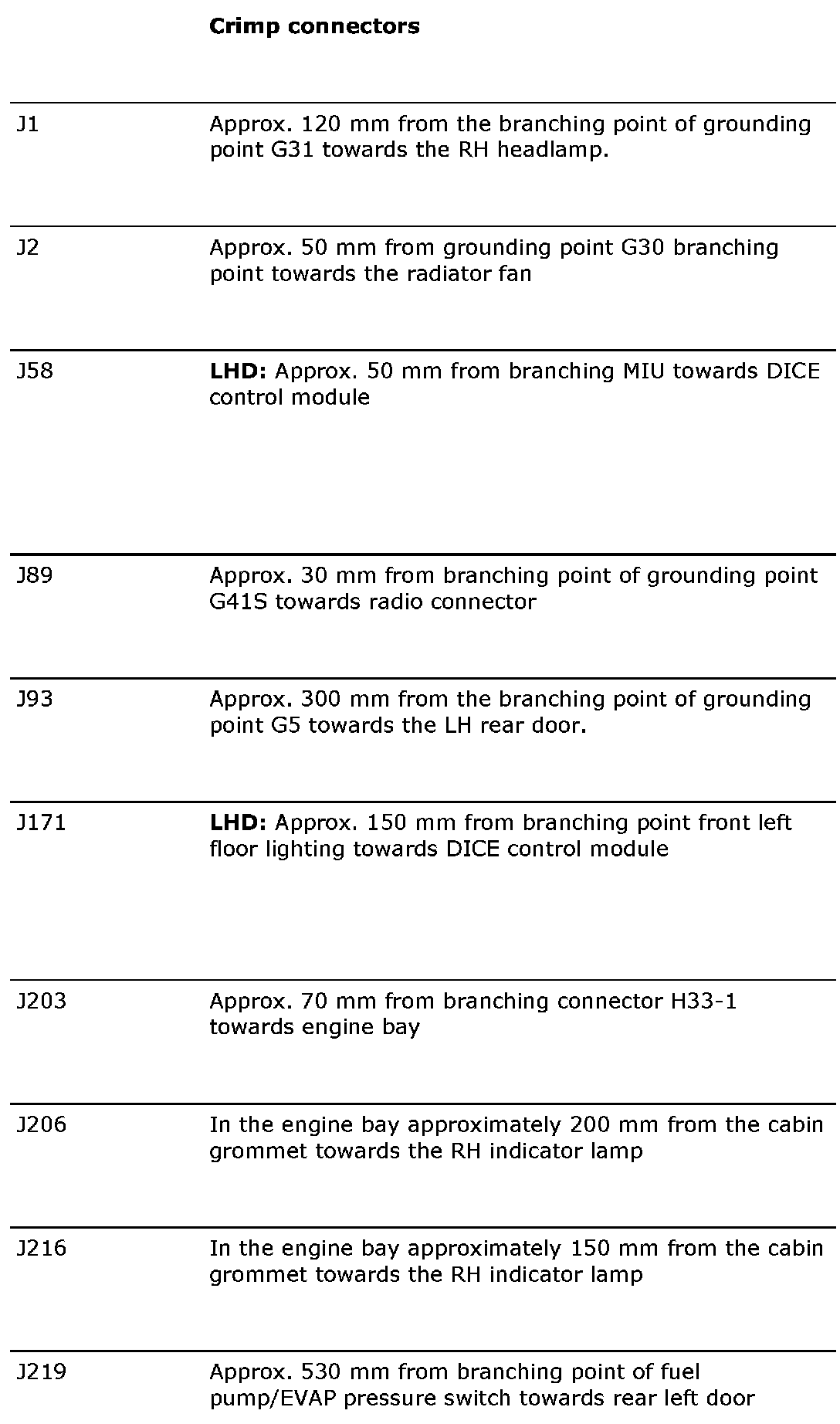

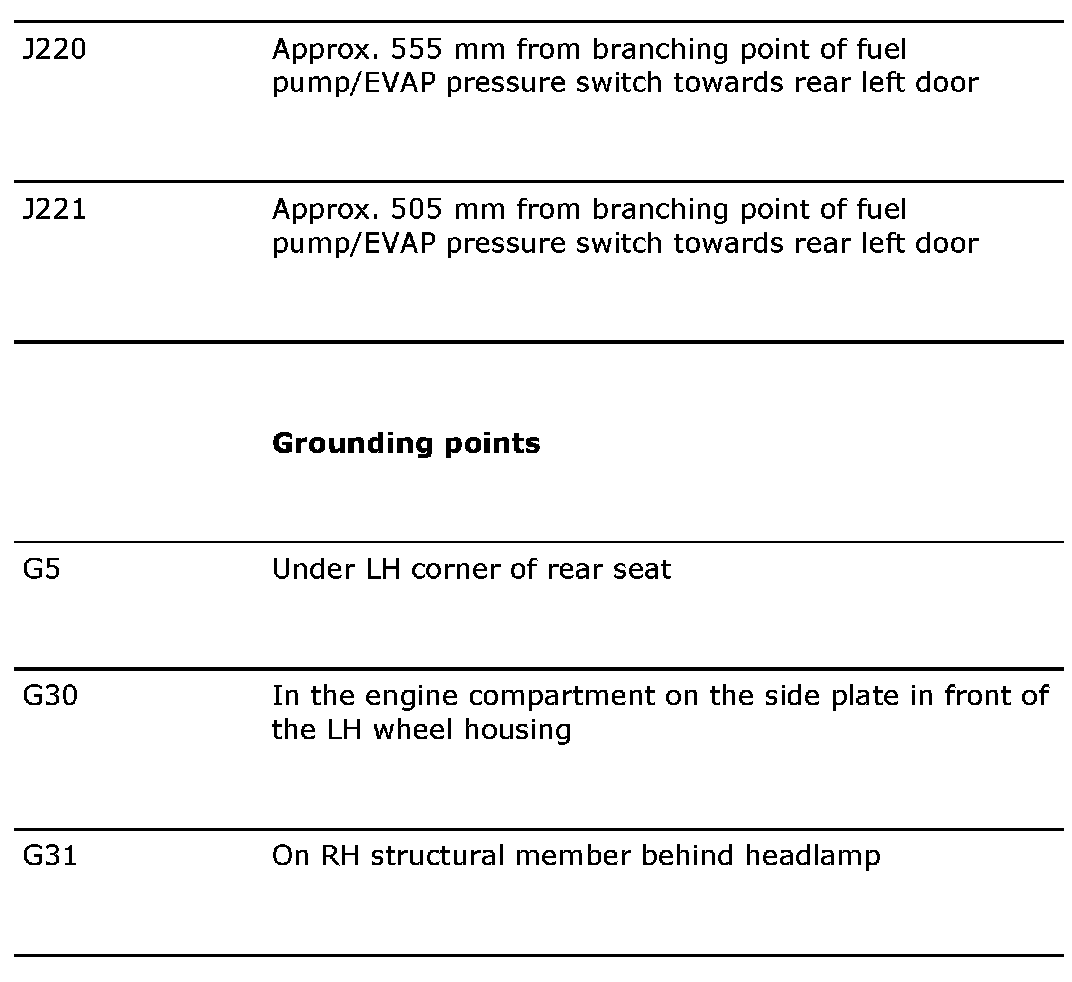

List Of Components (Part 1):

List Of Components (Part 2):

List Of Components (Part 3):

List Of Components (Part 4):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
