4D

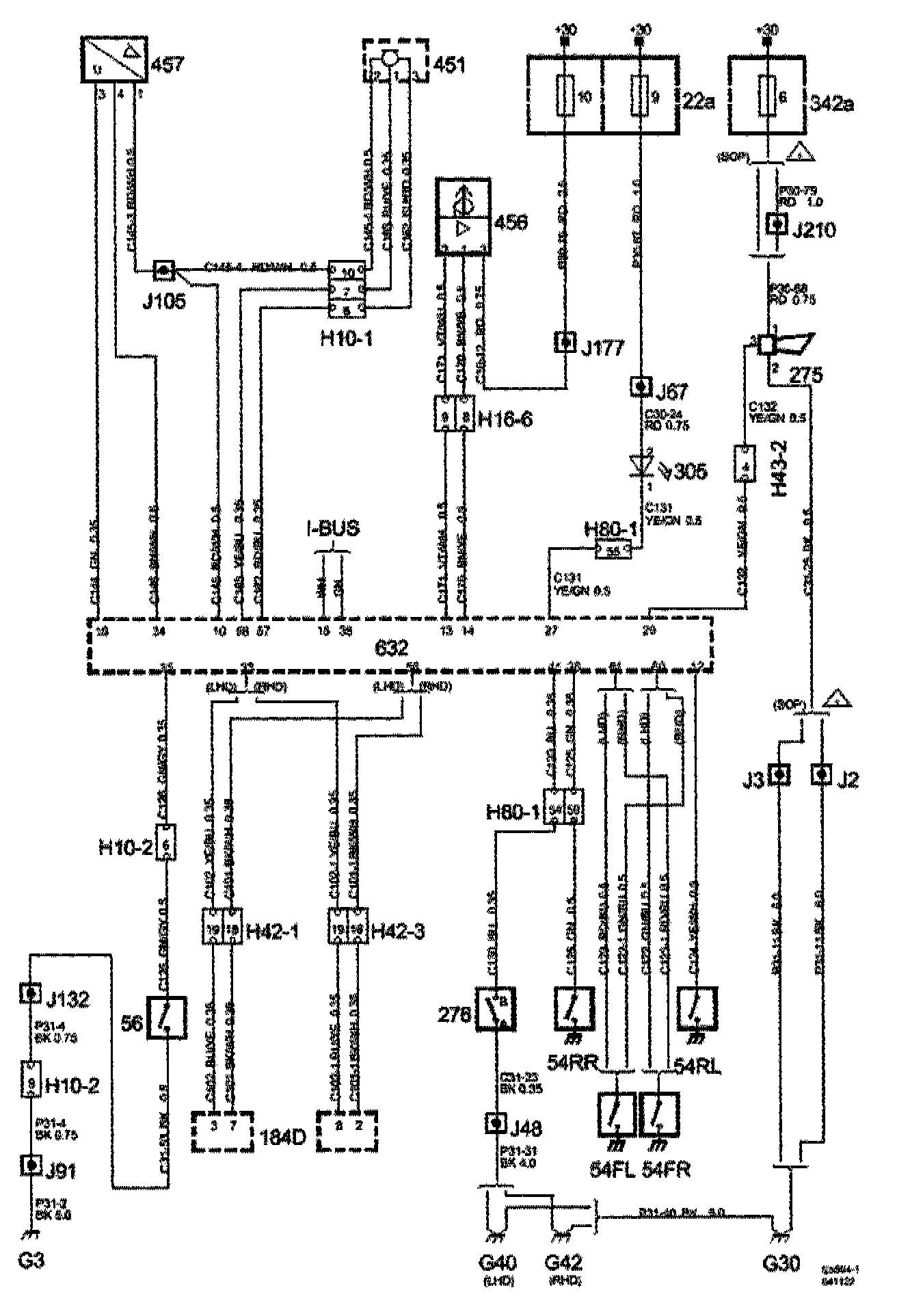

Anti-theft Alarm 4D:

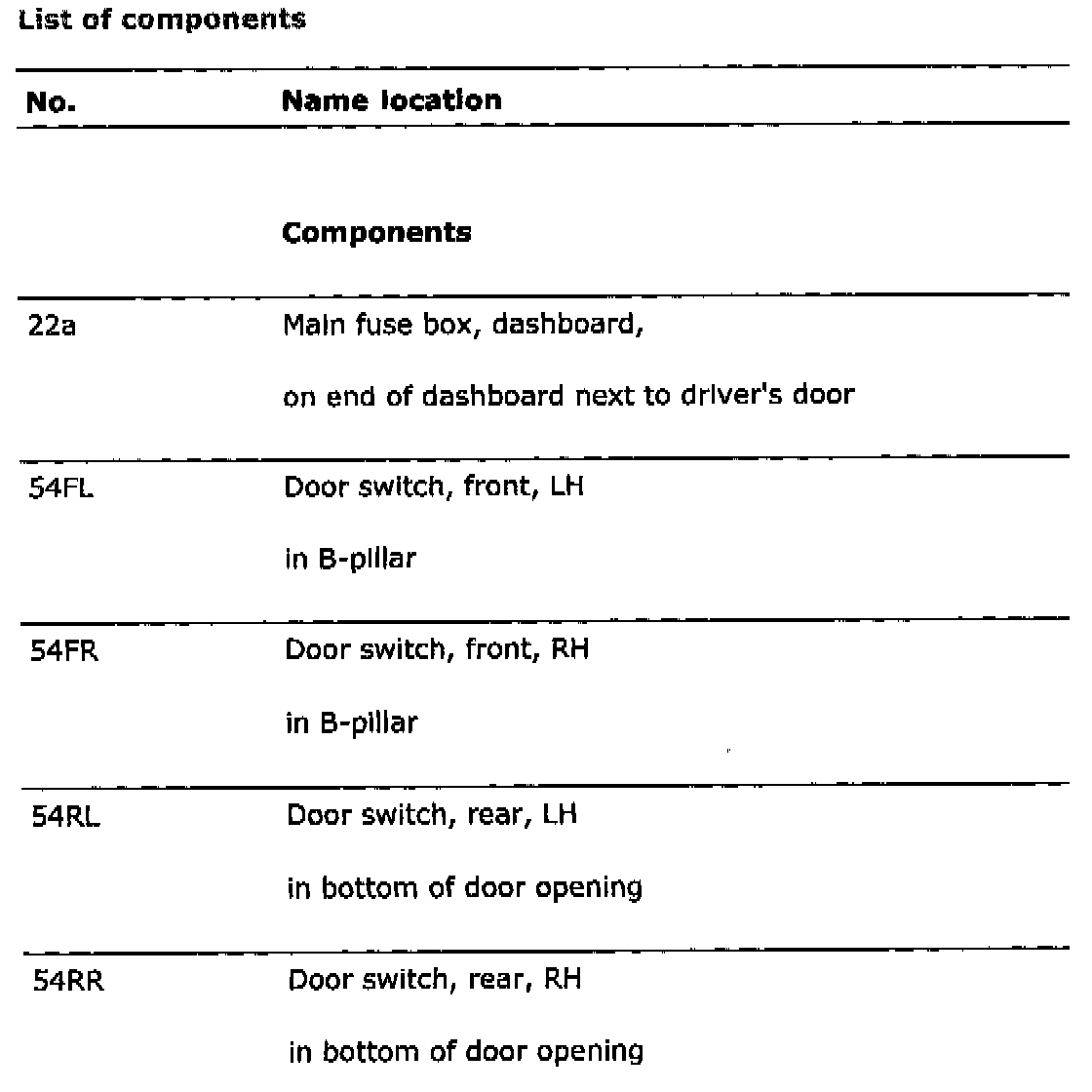

List Of Components (Part 1):

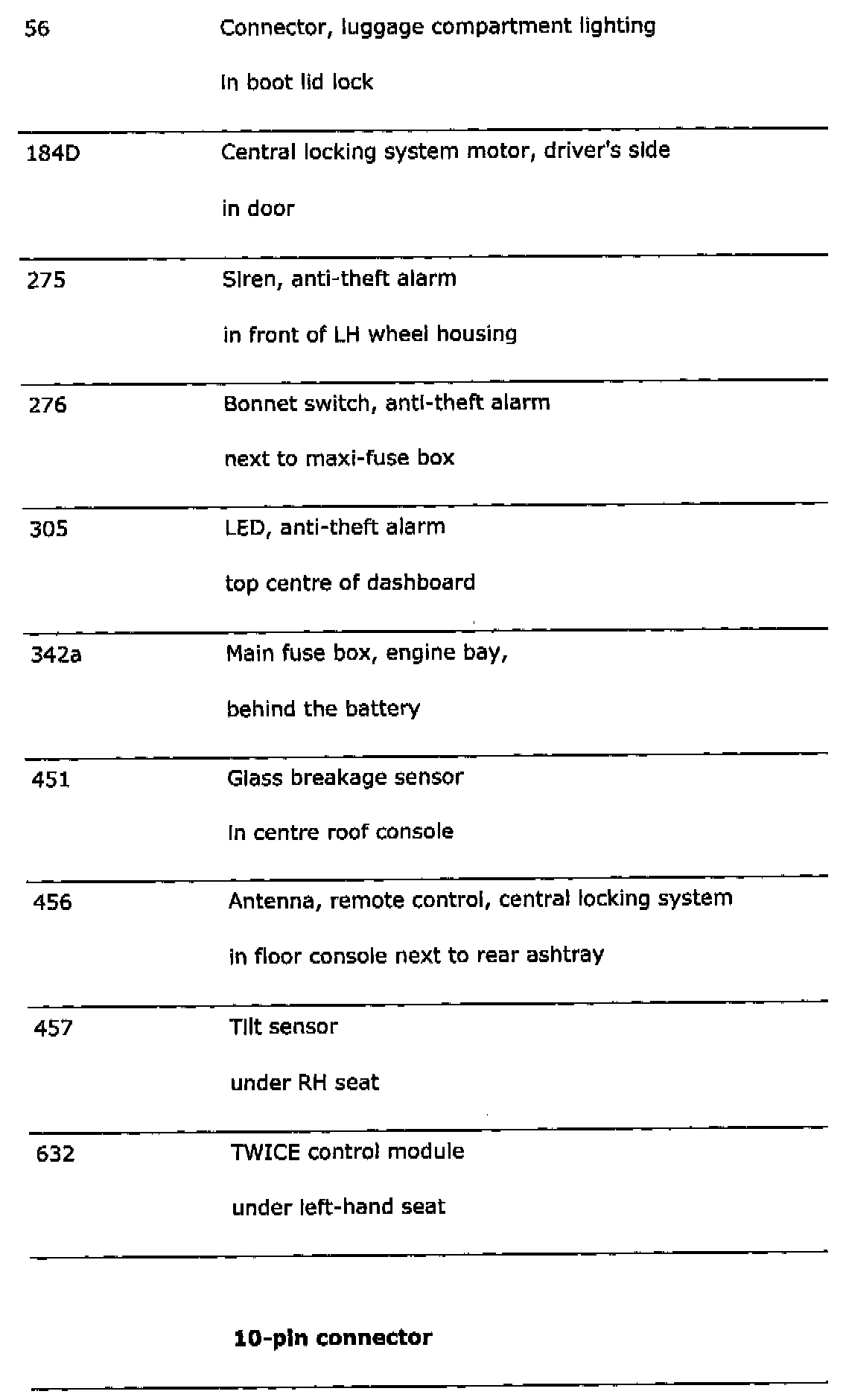

List Of Components (Part 2):

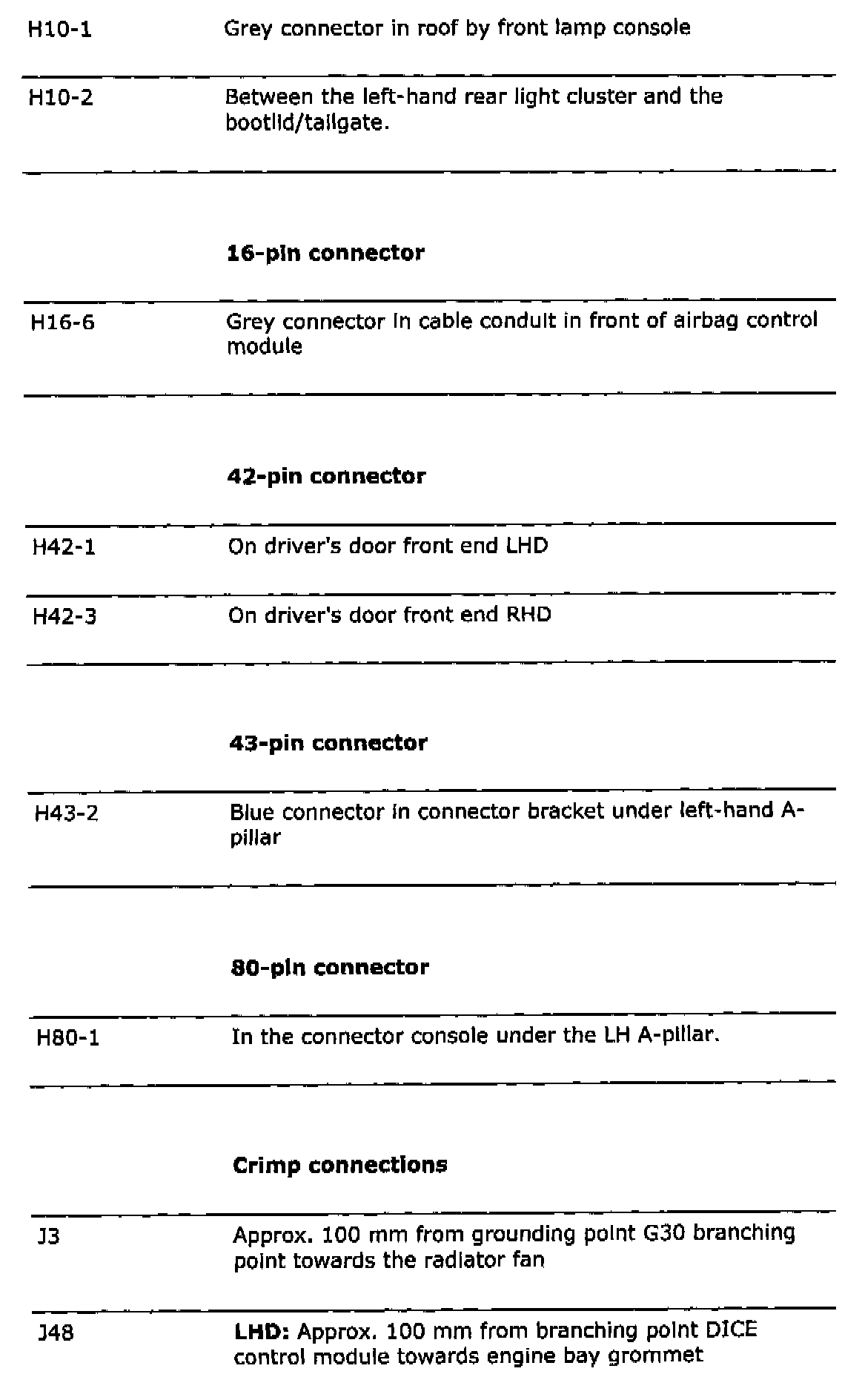

List Of Components (Part 3):
