Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram >> Left-Hand Door Mirror (680LH)

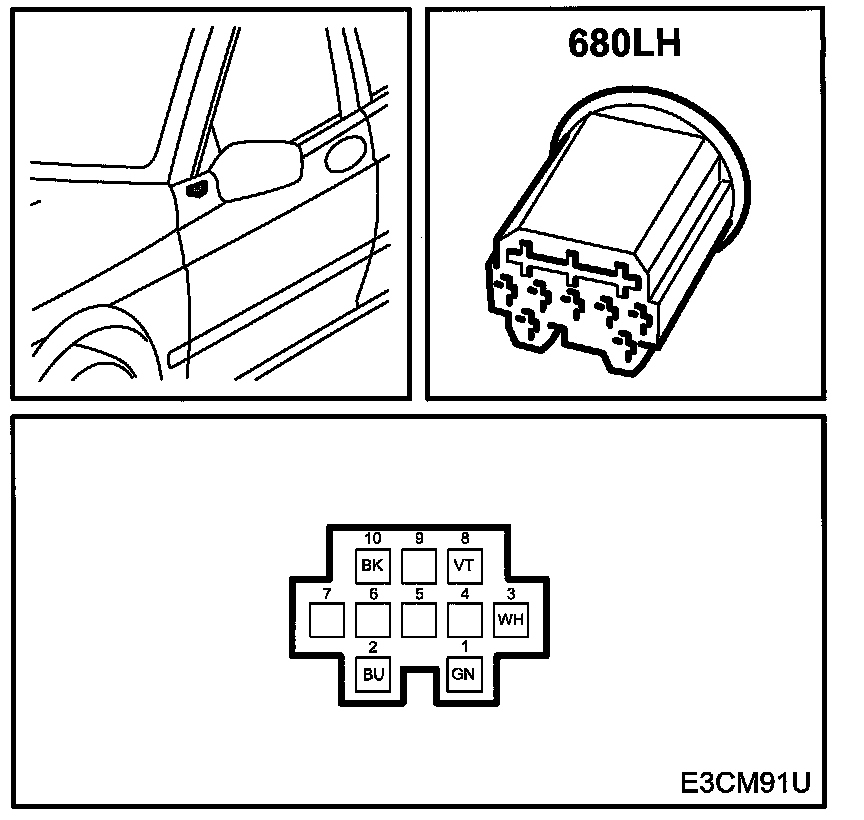

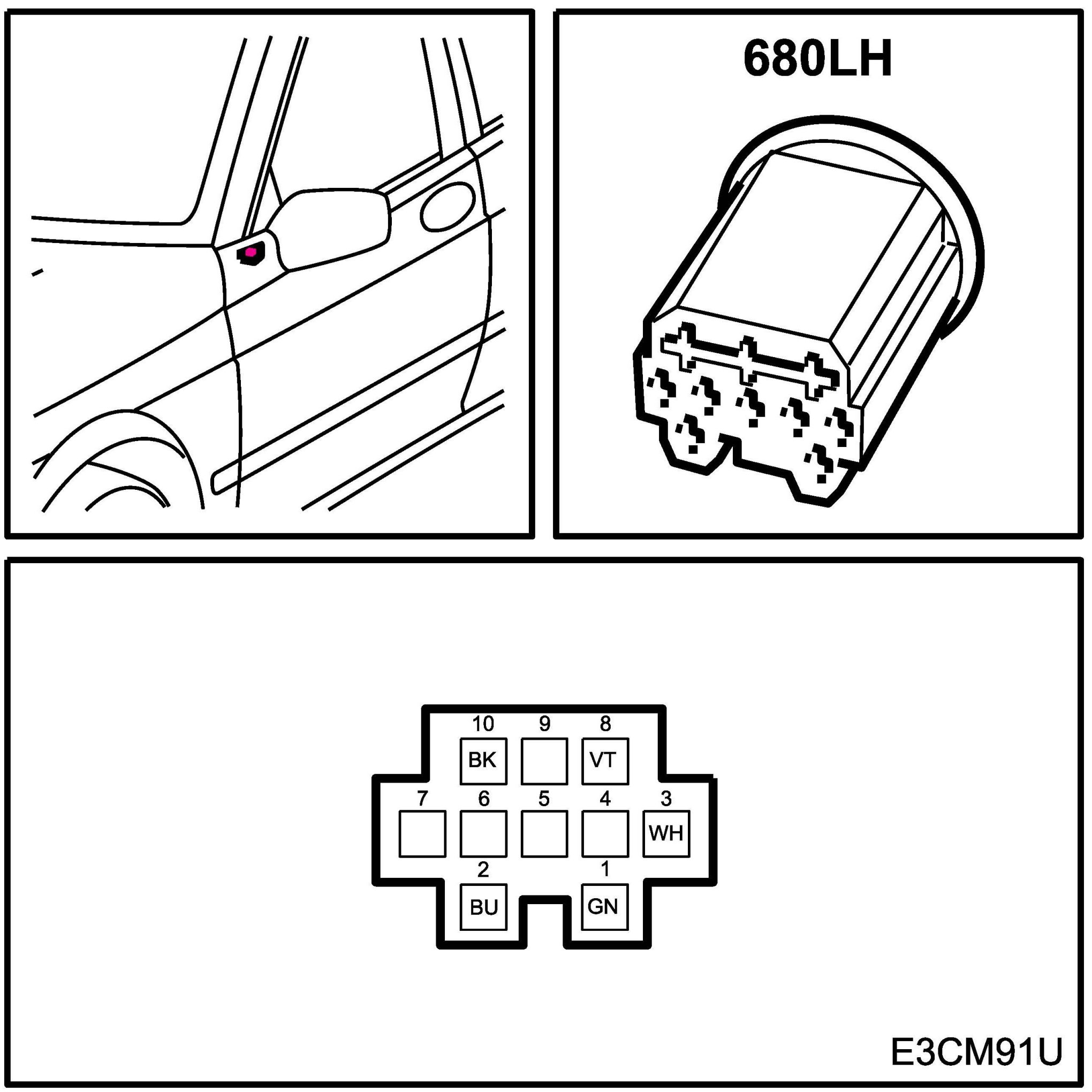

Left-Hand Door Mirror (680LH)

Left-Hand Door Mirror (680LH):



Left-Hand Door Mirror (680LH):
