Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> Power Mirror Control Module >> Control Module, ADM (637)

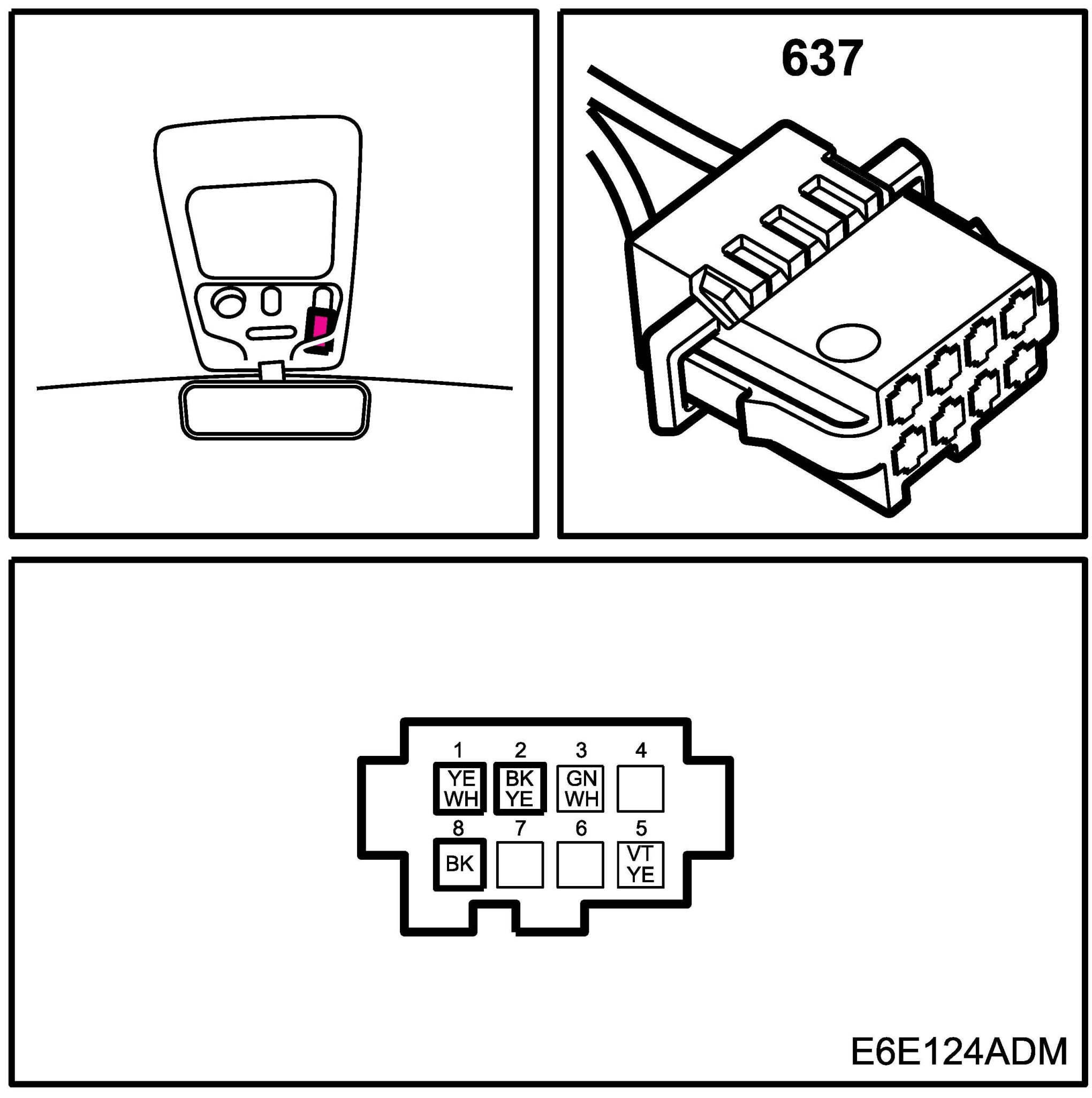

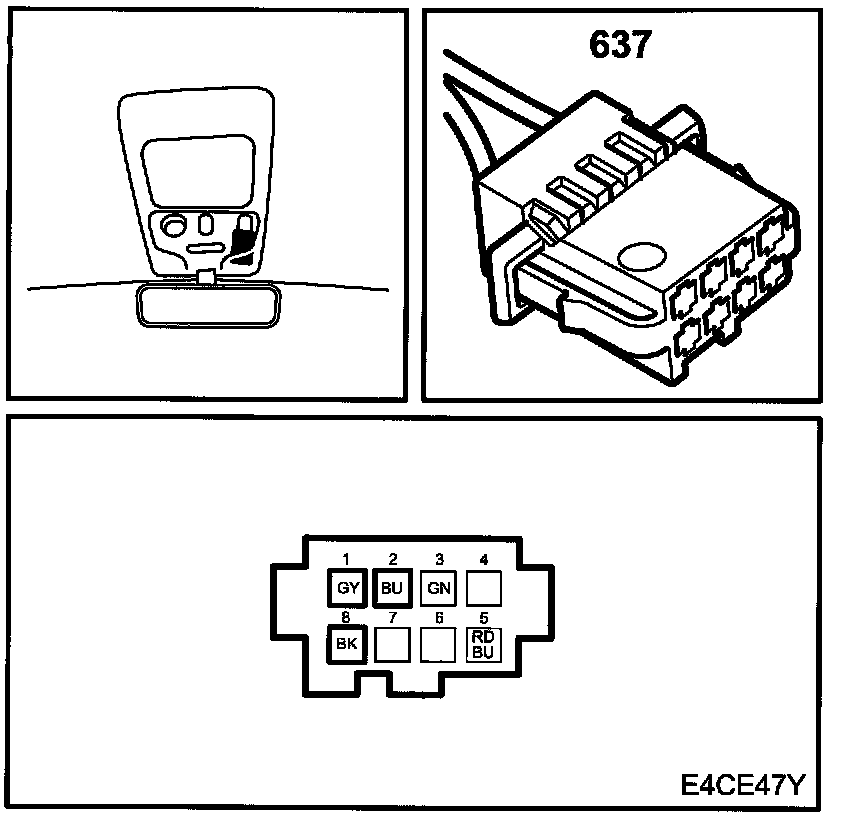

Control Module, ADM (637)

Control Module, ADM (637):



Control Module, ADM (637):
