Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Shutter/Screen >> Solenoid, Xenon Lamp Screen, LH (665FL)

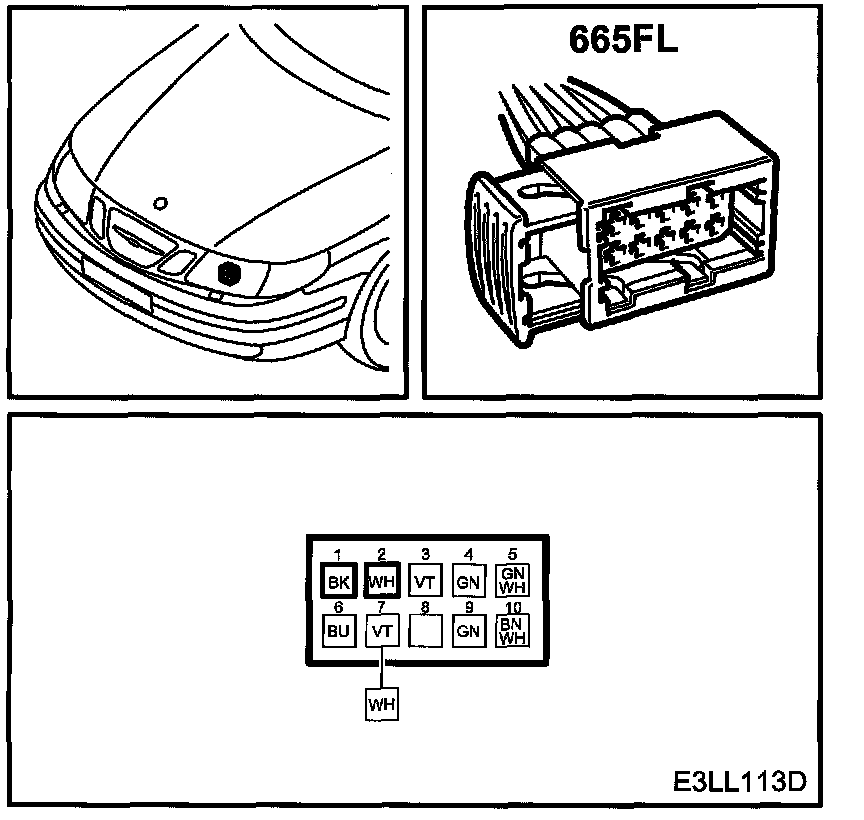

Solenoid, Xenon Lamp Screen, LH (665FL)

Solenoid, Xenon Lamp Screen, LH (665FL):
