Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Control Module, ACC (216) K6 >> K40

K40

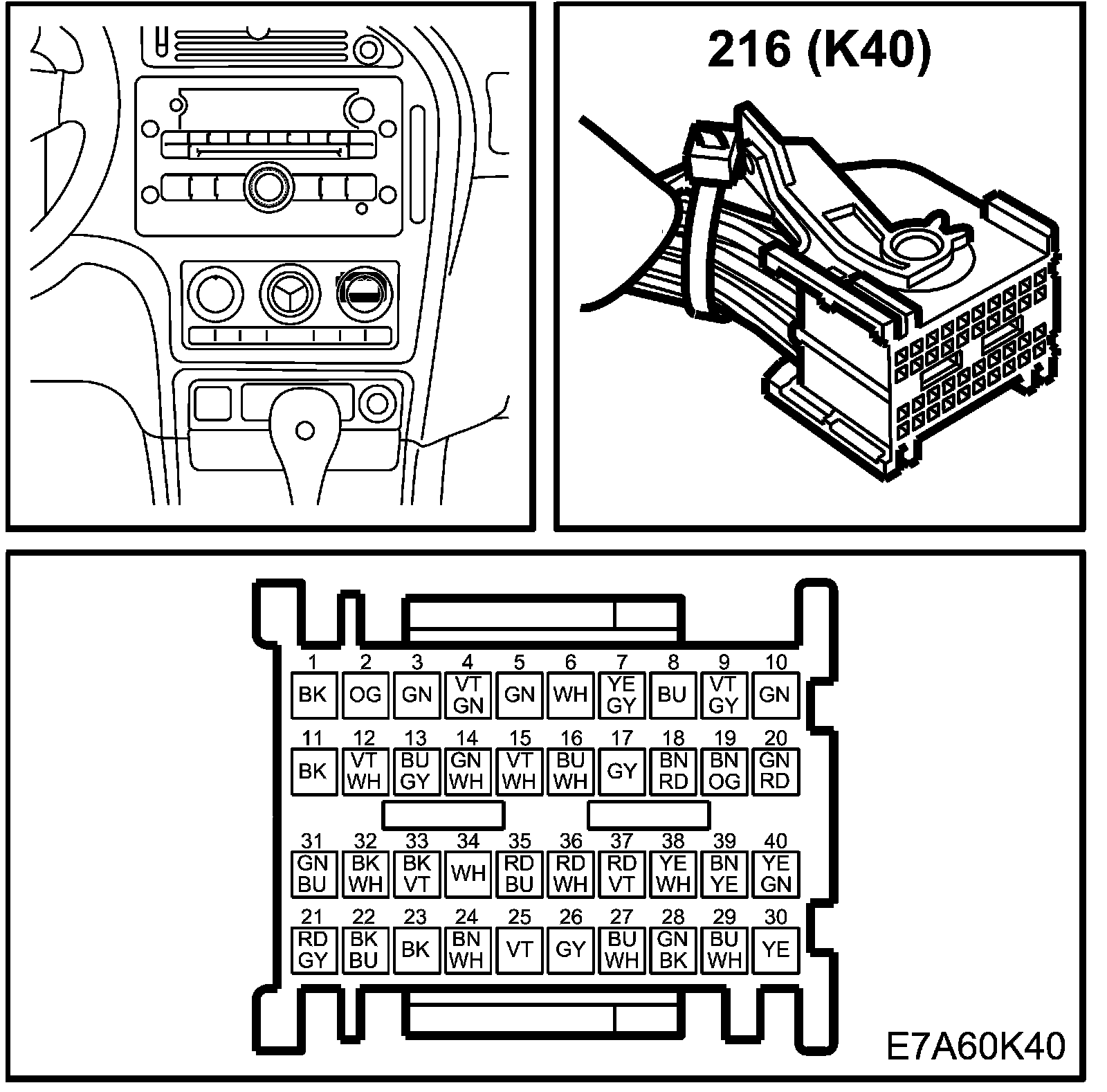

Control Module, ACC (216) K40:



Control Module, ACC (216) K40:



Control Module, ACC (216) K40:
