Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> System Diagram >> Navigation Unit (635)

Navigation Unit (635)



Head Unit, Audio/Navigation (635)

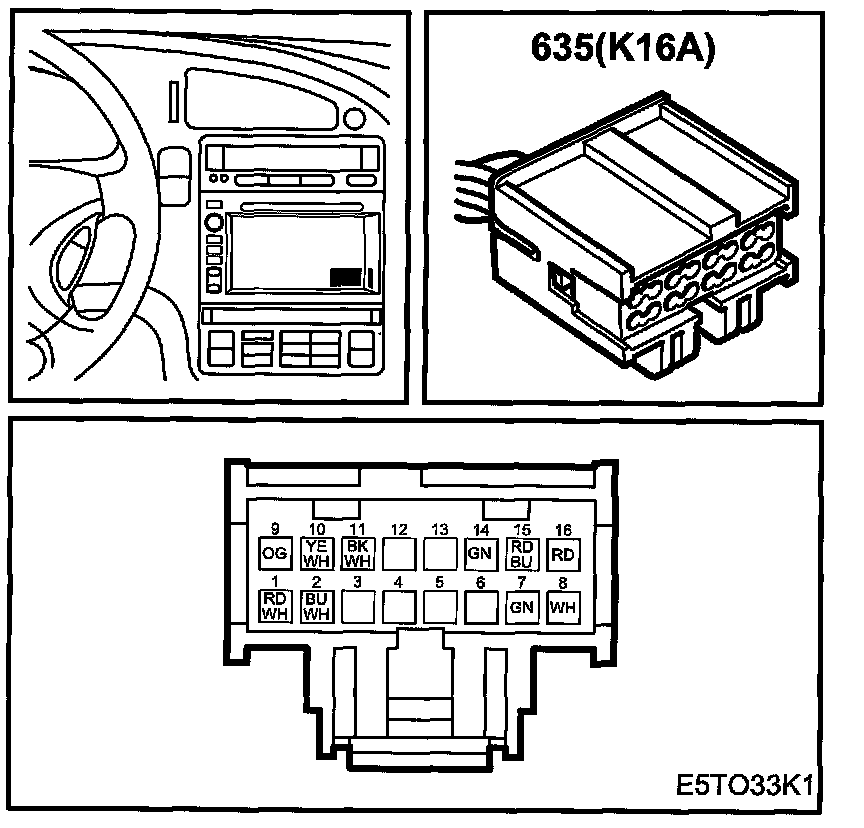

K16A

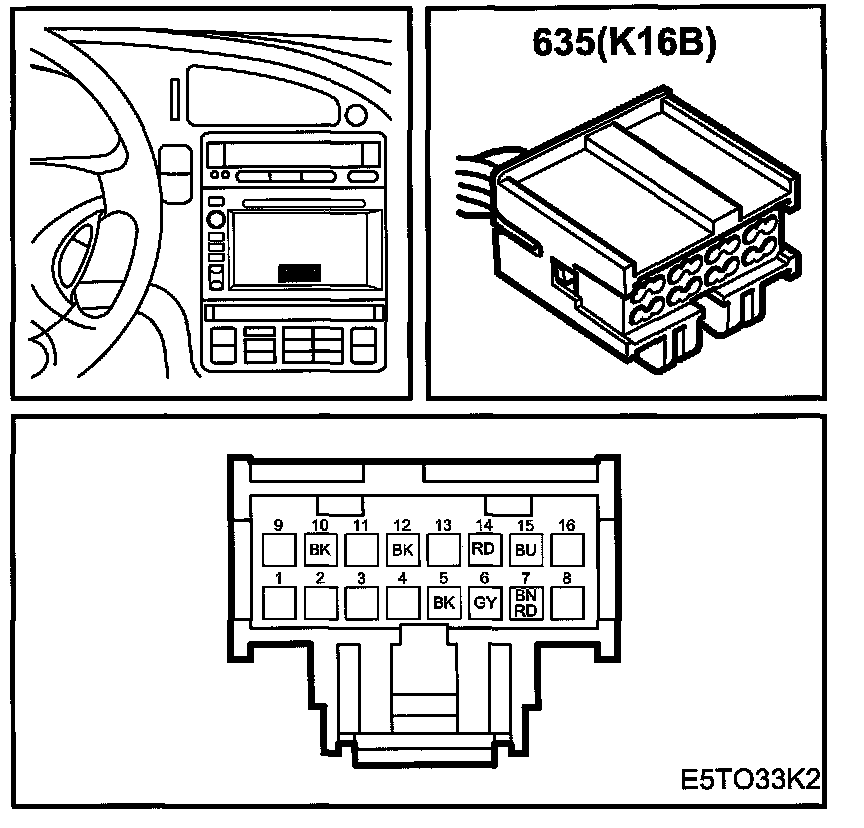

K16B

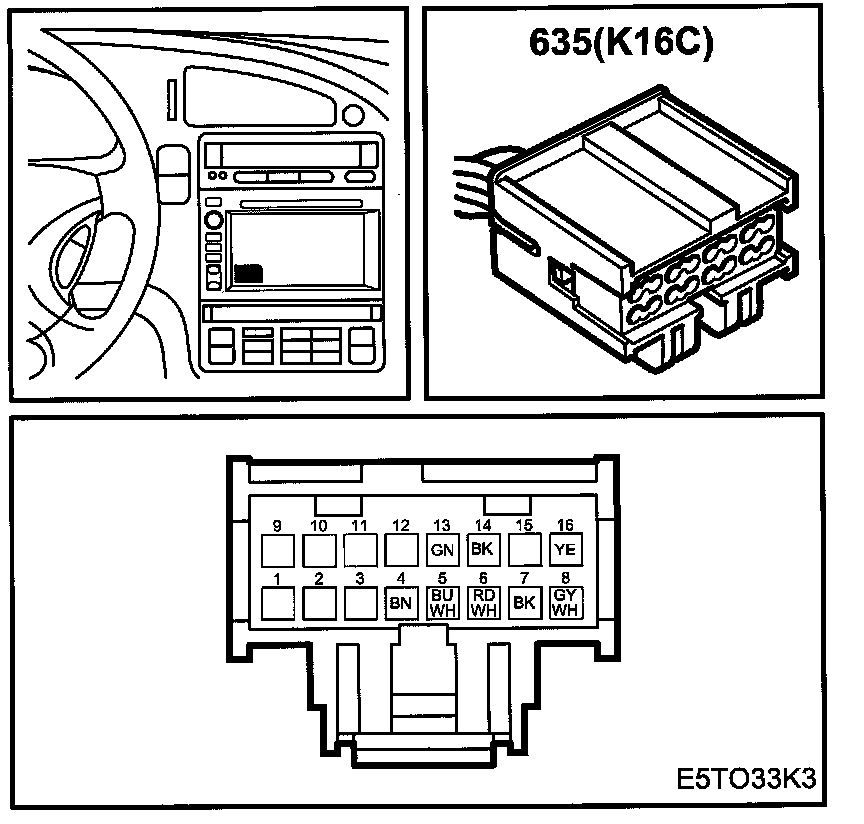

K16C
