Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio, Satellite Reception (349) >> 4D

4D

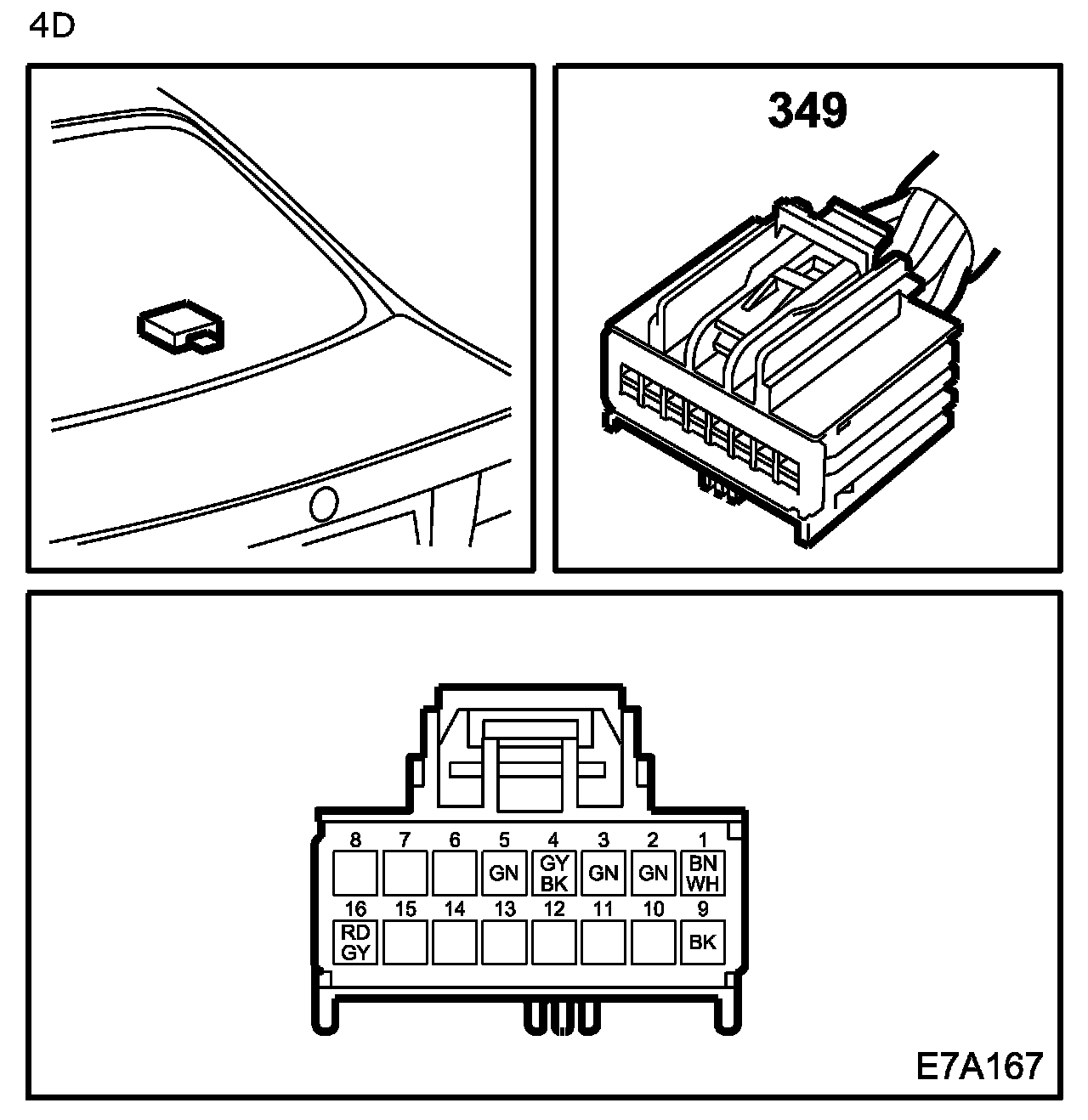

Radio, Satellite Reception (349), 4D:
