Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Loudspeaker, Parcel Shelf, RH, 4D (266RR)

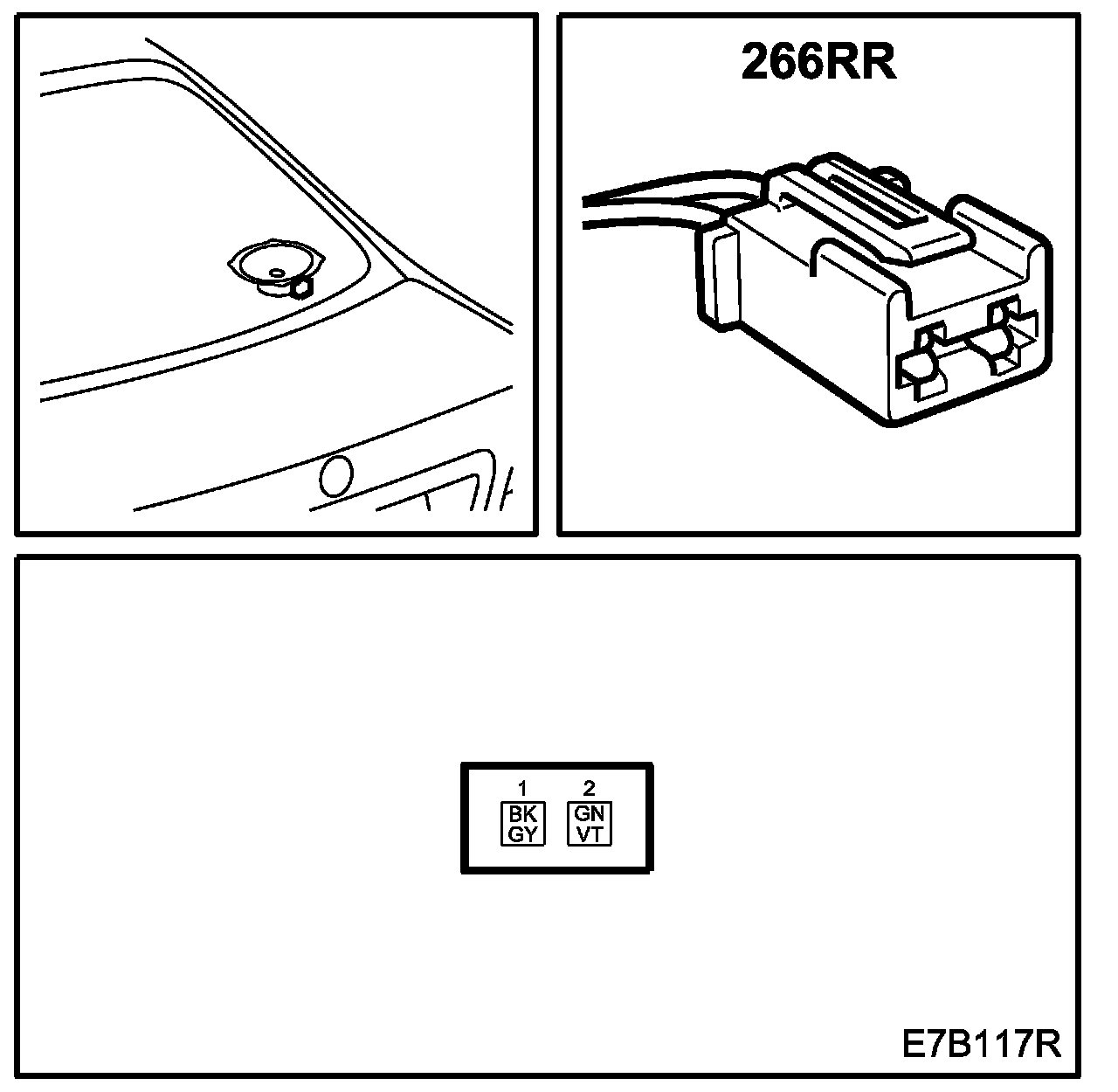

Loudspeaker, Parcel Shelf, RH, 4D (266RR)

Loudspeaker, Parcel Shelf, RH, 4D (266RR):
