Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Parking Assist Control Module >> Control Module, SPA, Switch B (630B) >> 4D

4D

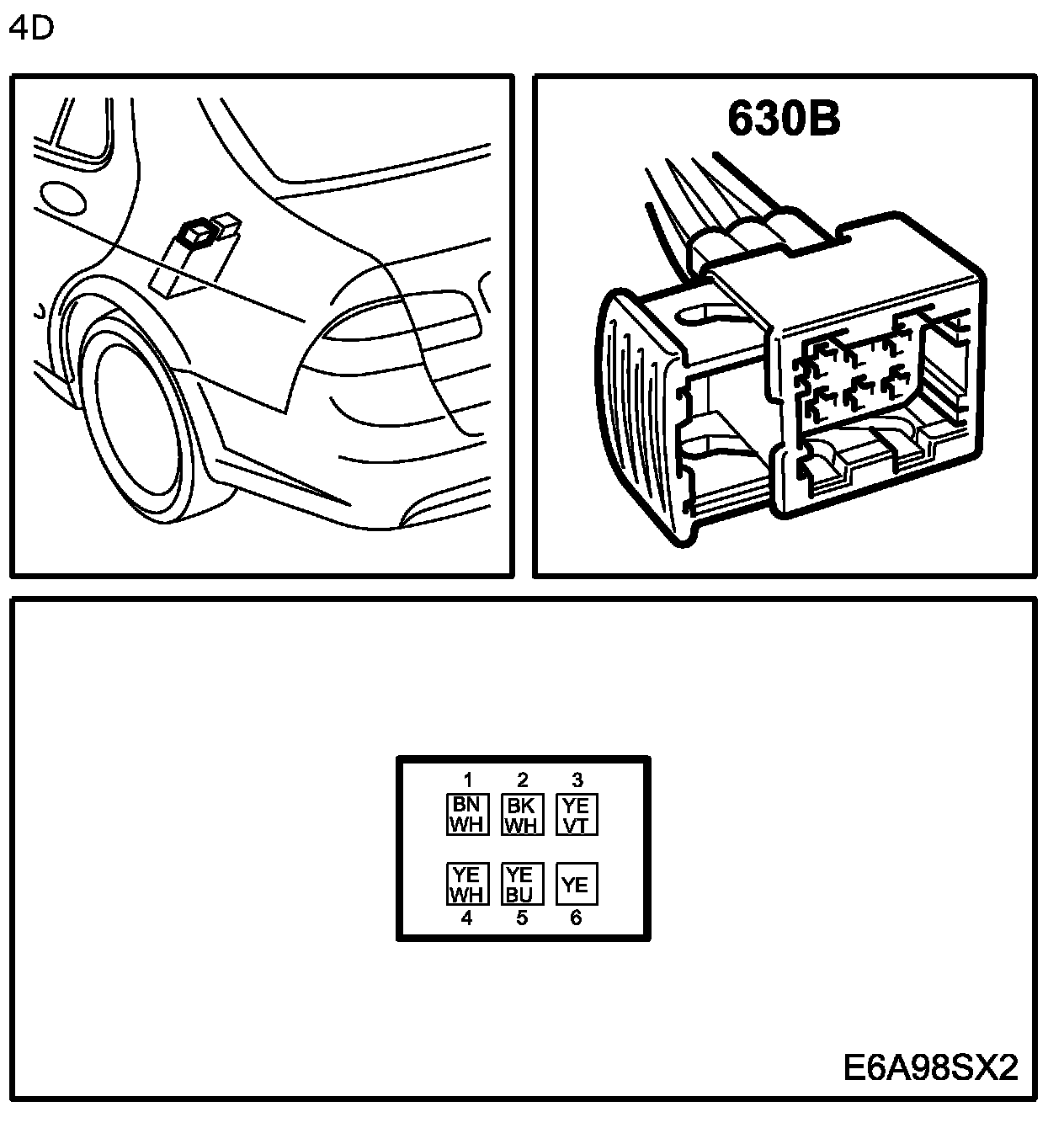

Control Module, SPA, Switch B (630B), 4D:
