Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Parking Assist Control Module >> Control Module, SPA, Switch A (630A) >> 5D

5D

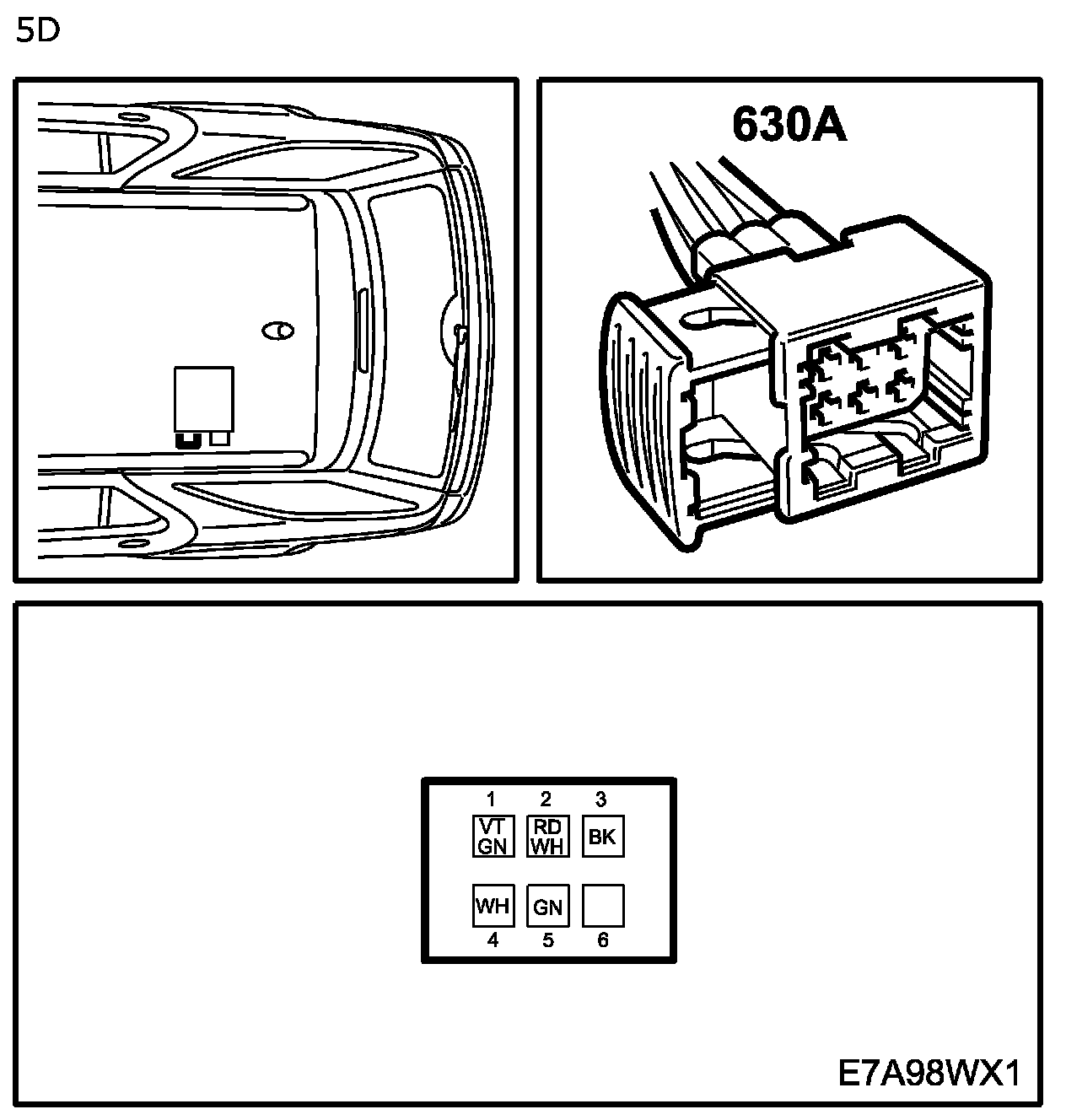

Control Module, SPA, Switch A (630A), 5D:
