Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Global Positioning System >> Global Positioning System Module >> Control Module, Onstar, VCIM (673) >> 5D >> K12

K12

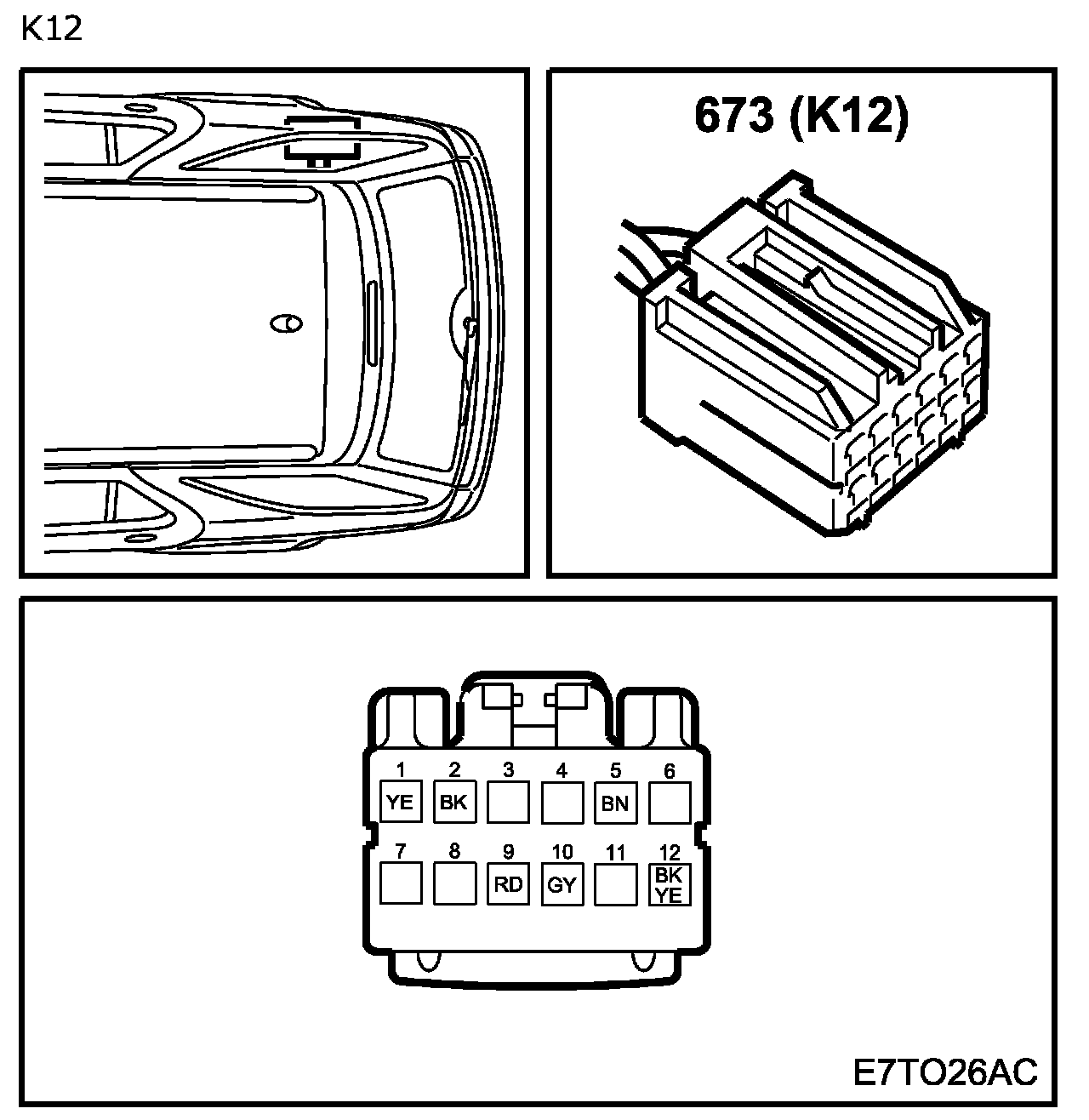

Control Module, OnStar, VCIM (673), 5D, K12:

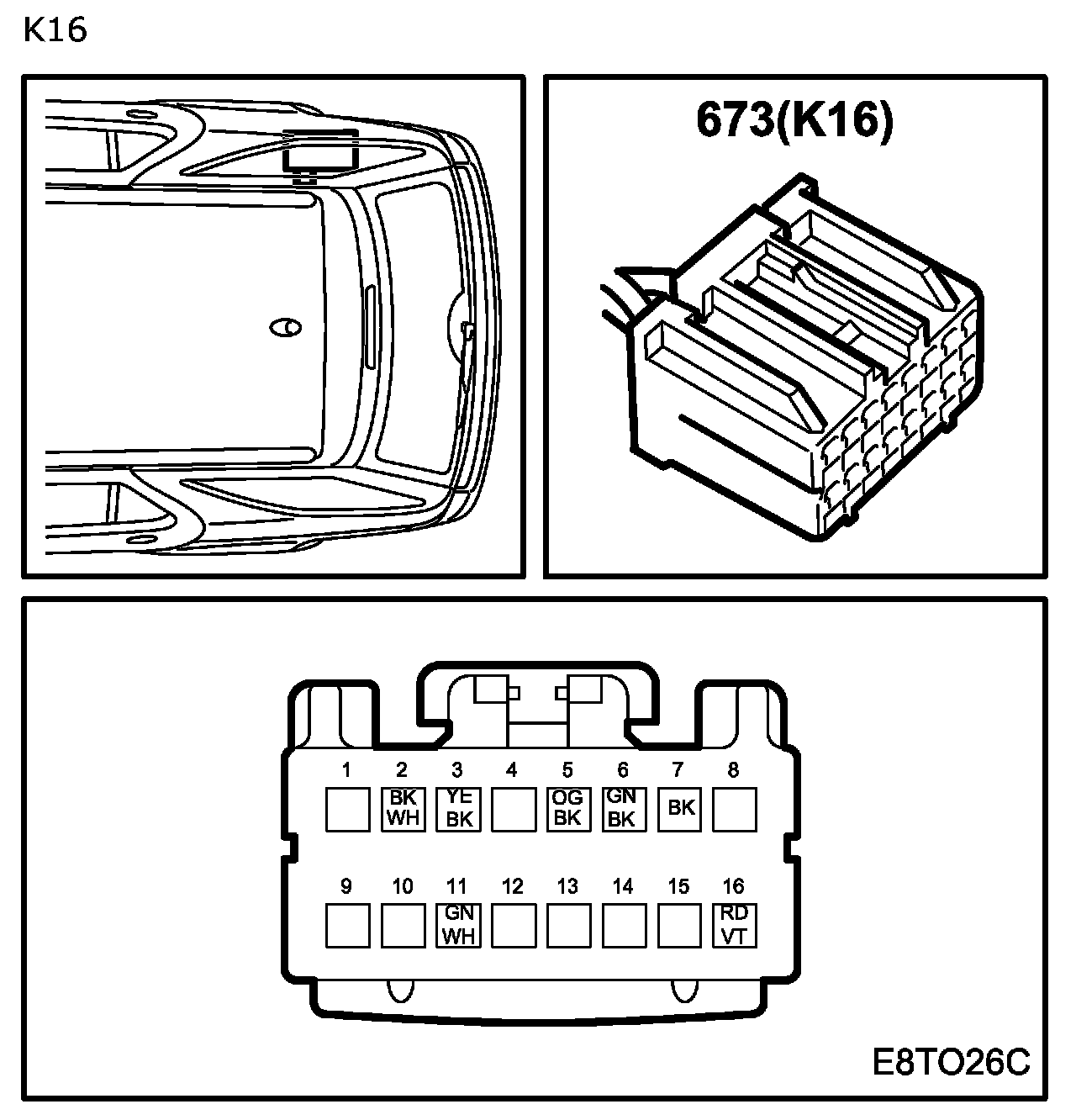

Control Module, OnStar, VCIM (673), 5D, K16:
