Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Global Positioning System >> Global Positioning System Display Unit >> Control Module, Onstar, VCIM (673) >> 4D >> K12

K12

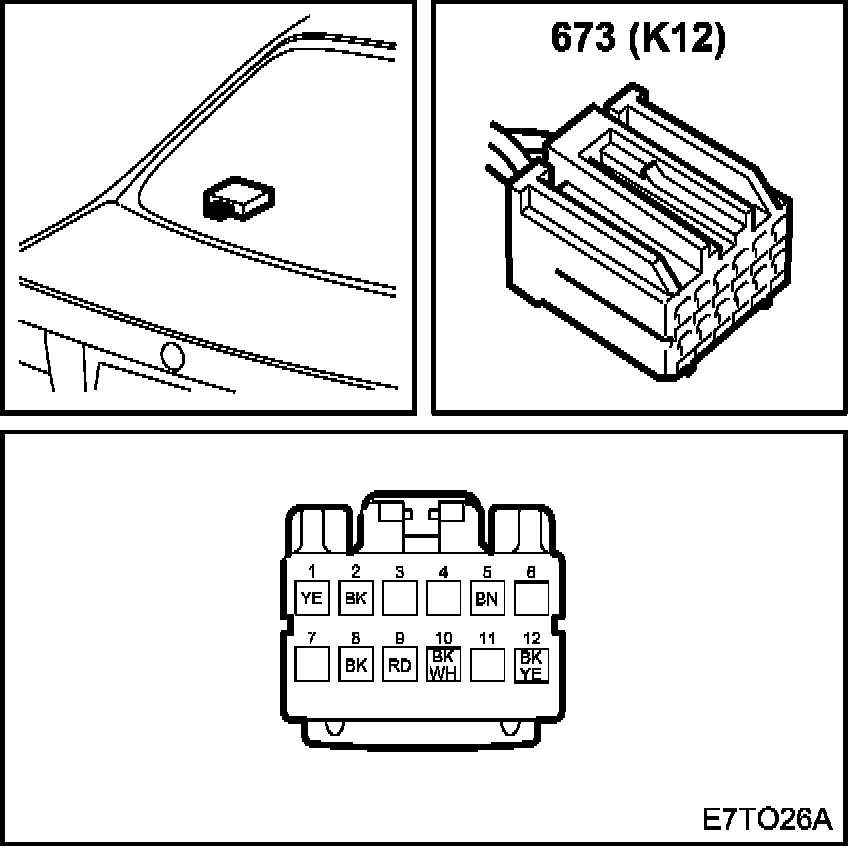

(673) Control Module, Onstar, VCIM (K12):
