Wheel Speed Signal Absent

Wheel Speed Signal Absent






Fault Symptoms
Speedometer or cruise-control system not working.


Conditions

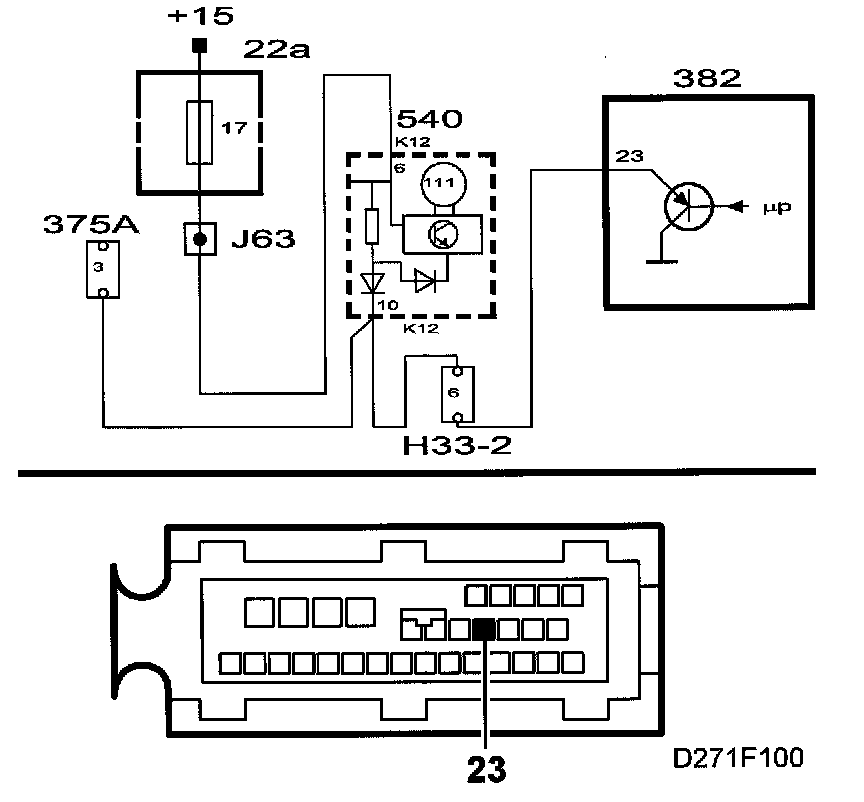

^ Open/short circuit between the ESP control module and main instrument unit.
^ Open/short circuit between the ESP control module and ECM.

Diagnostic Help
Wheel speed can be read with the diagnostic tool from the ESP control module and the receiving control module.

See fault diagnosis in "Electrical System, Main instrument unit" or "ECM".

Fault diagnosis procedure is not available.
