Rear Spoiler, 4D

Rear Spoiler, 4D

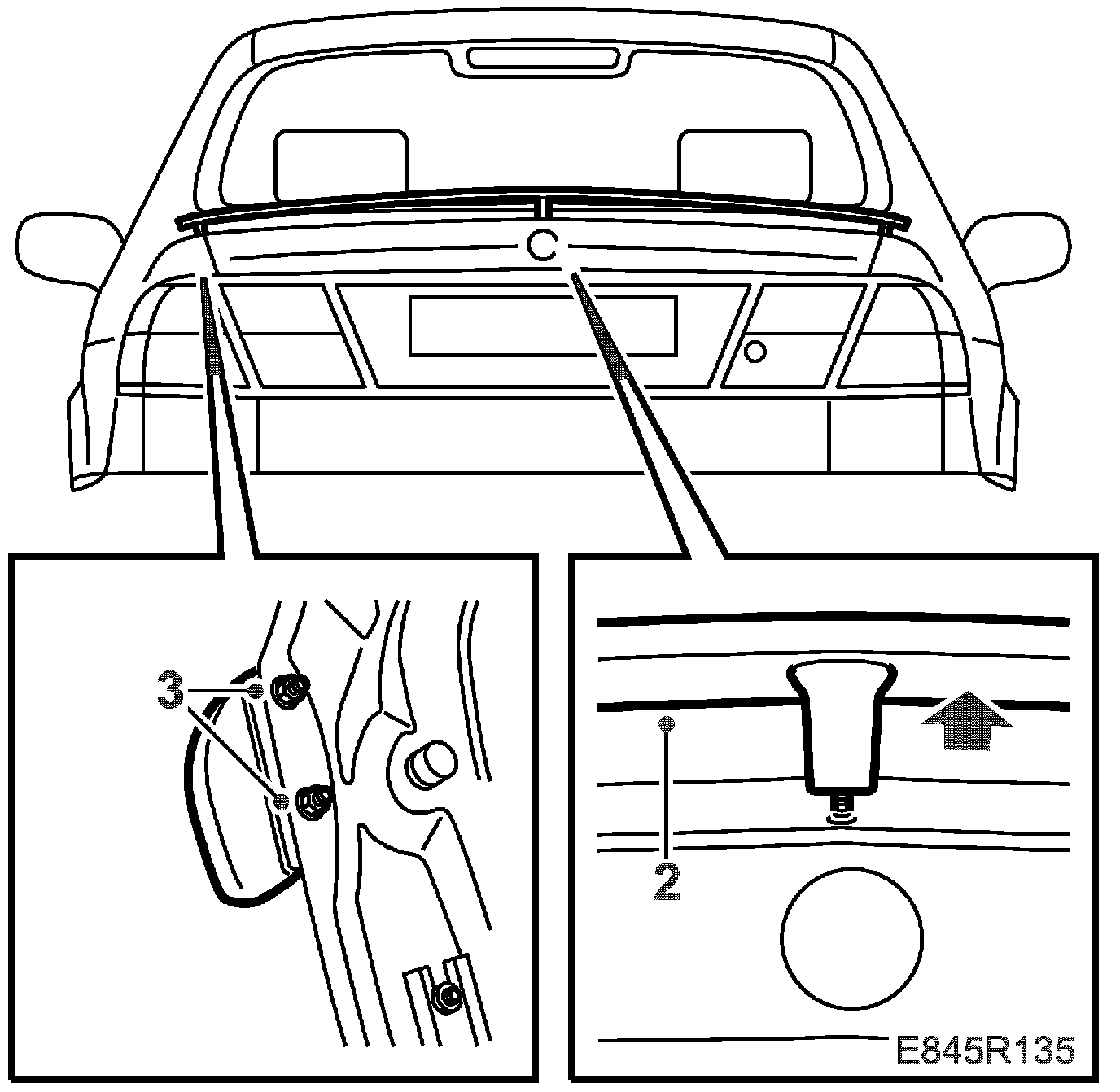

To remove







1. Open the boot and remove the boot lid trim.

NOTE: The boot lid trim is fastened with 3-stage rivets. Press in the centre 3 mm and then pull out the hole rivet.

2. Remove the 5 nuts, retaining the washers.
3. Close the boot and carefully lift off the spoiler.

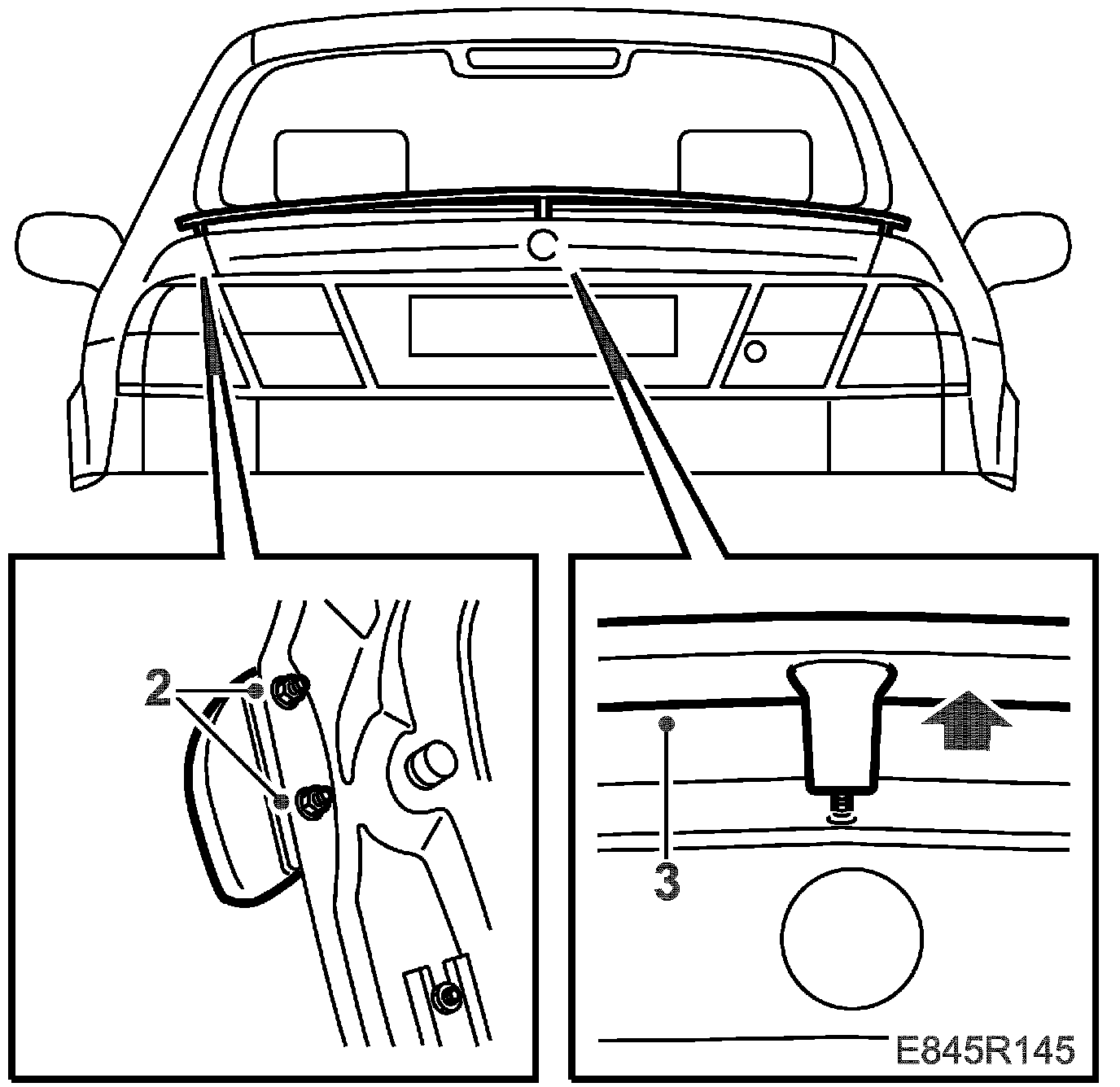

To fit







1. Fit new double-sided adhesive seals on the spoiler if necessary.
2. Carefully position the spoiler so that the screws fit in the holes.
3. Open the boot lid and tighten the 5 nuts on the spoiler.
4. Fit the boot lid trim and close the boot.
