Home
>>
Saab
>>
2005
>>
9-5 Linear (9600) L4-2.3L Turbo (2.3t)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Sensors and Switches - Body and Frame
>>
Power Seat Motor Position Sensor
>>
Diagrams
>>

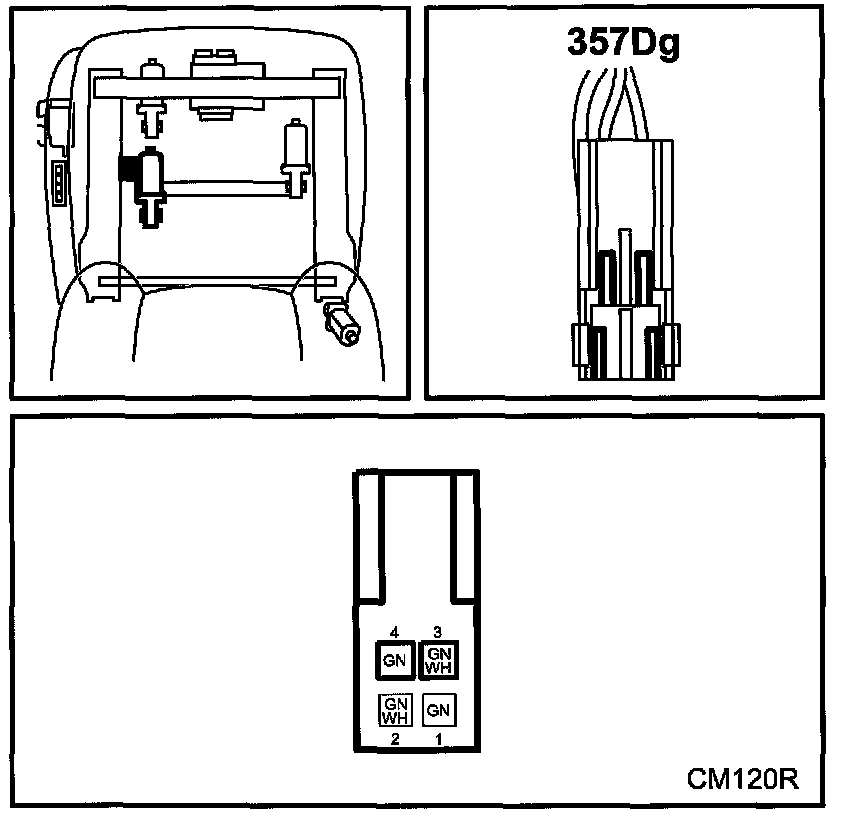

Position Sensor, Rear Height Adjustment, Electrically Adjustable Driver's Seat With Memory (357DG)
Position Sensor, Rear Height Adjustment, Electrically Adjustable Driver's Seat With Memory (357DG)
Position Sensor, Rear Height Adjustment, Electrically Adjustable Driver's Seat With Memory (357Dg):
