Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Mirror Switch >> Diagrams >> Switch, Electrically Adjustable Door Mirror Selector Switch (125)

Switch, Electrically Adjustable Door Mirror Selector Switch (125)

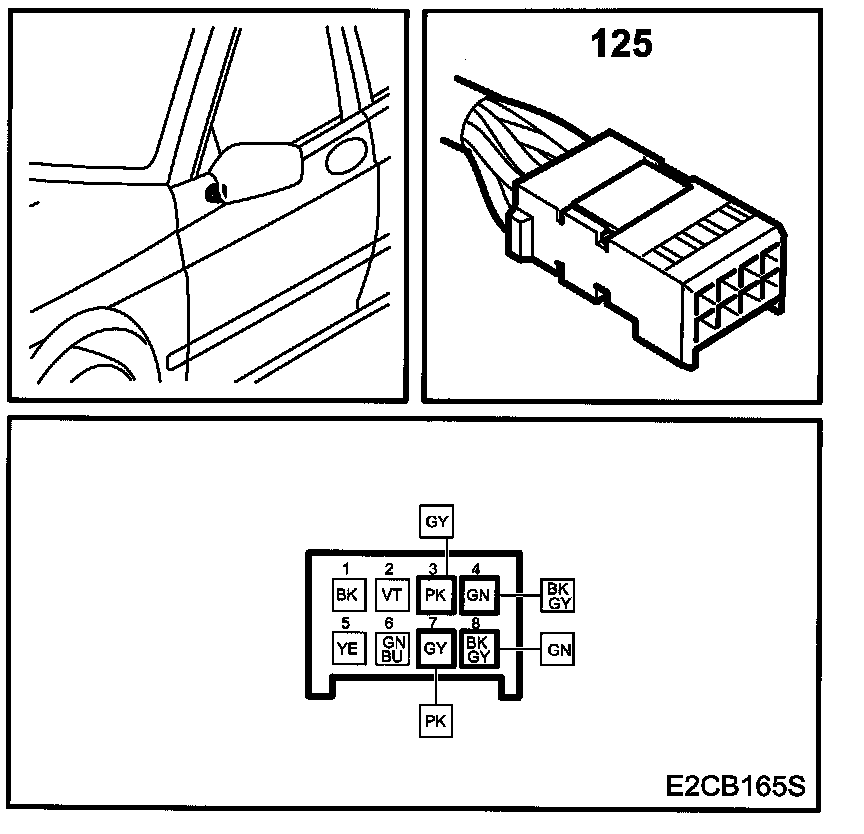

Switch, Electrically Adjustable Door Mirror Selector Switch (125):

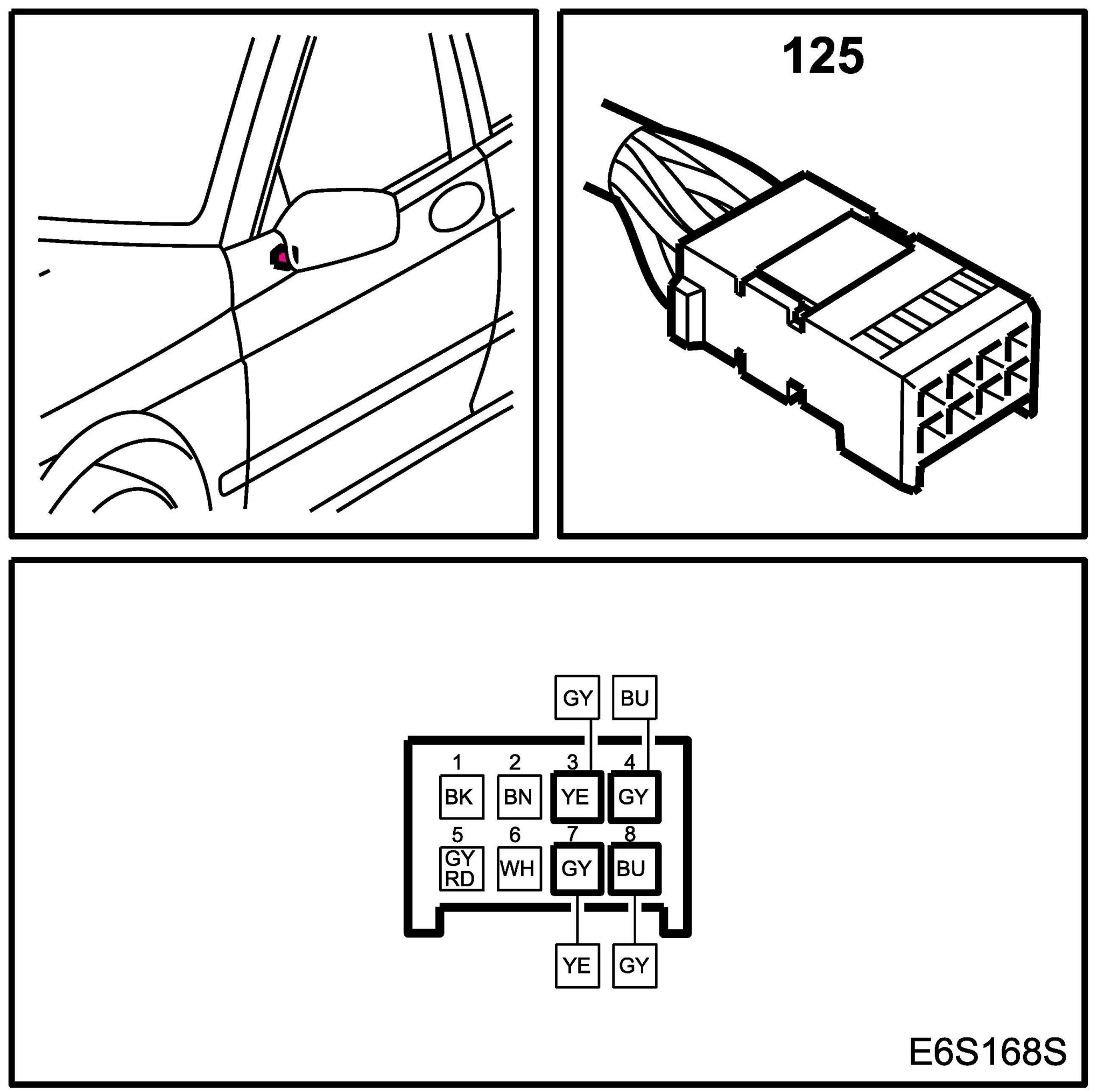

Switch, Electrically Adjustable Door Mirror Selector Switch (125):
