Power Mirror Switch: Description and Operation

Switch

The door mirror switch unit is located on the driver's door inside the door mirror. It comprises a 4-way switch (in/out, up/down), a selector switch for RH/LH mirror, and a tilt-down switch for tilting the passenger door mirror when reversing.

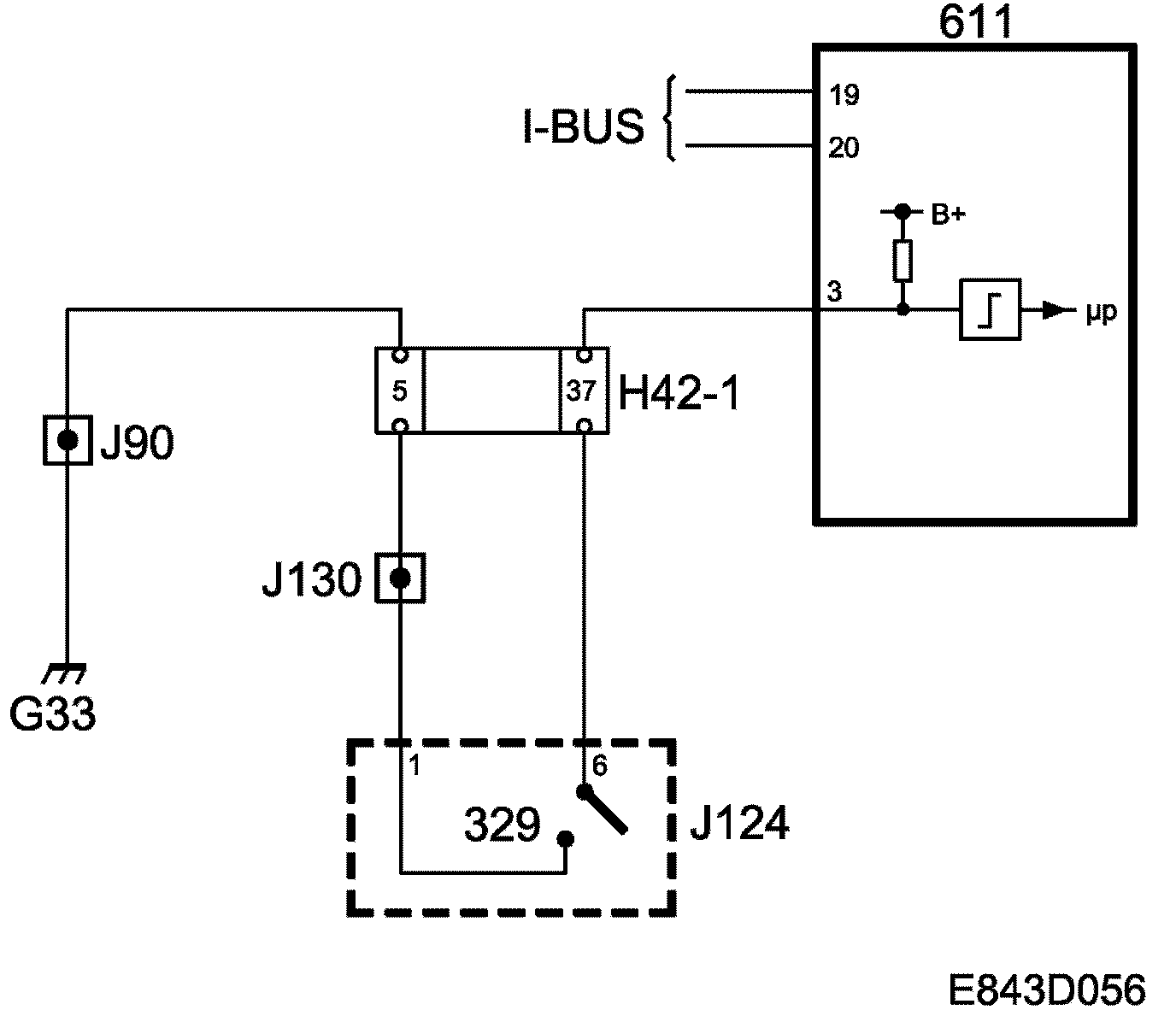

+54 voltage is fed from fuse C to the switch pin 6.

The switch is grounded to grounding point G33.

When setting the position memory for one of the door mirrors, the memory store button is used in combination with one of the memory buttons 1-3 on the driver's seat.

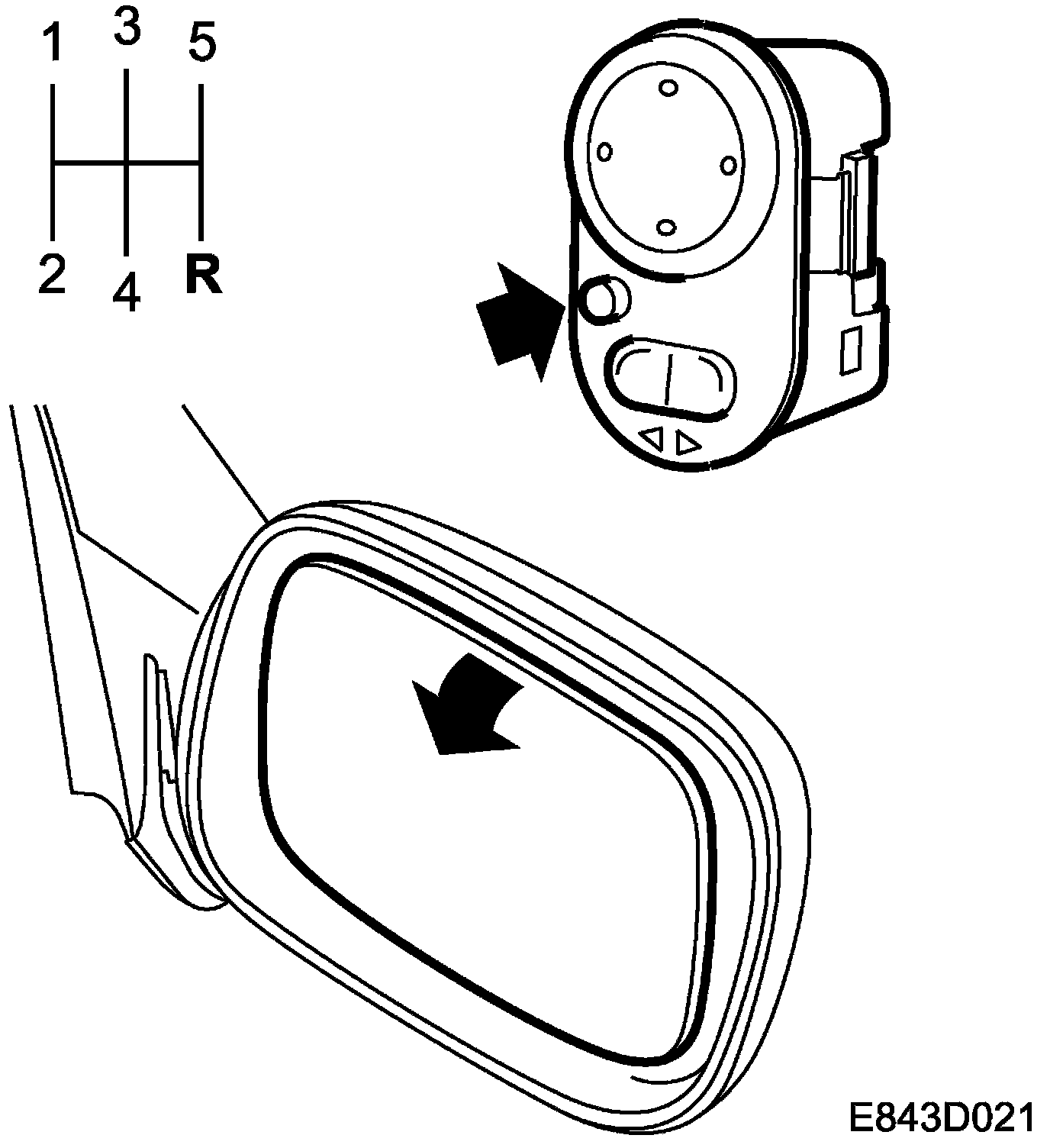

Tilting the passenger door mirror

To aid reversing, the passenger door mirror can be tilted down towards the rear wheel as described below:

1. Engage reverse gear.
2. Press the tilt-down switch on the door mirror switch unit.
3. The mirror on the passenger door tilts at fixed angles of 10 degrees down and 30 degrees in towards the rear wheel of the car or to a mechanical stop.
4. To exit the function, disengage reverse gear or press the tilt-down button a second time.

Diagnostics

The switch for tilting the passenger door mirror can be checked with the diagnostic tool.
