Height Adjustment, Manual Seat

Height Adjustment, Manual Seat

To remove

1. Remove the front seat from the car.

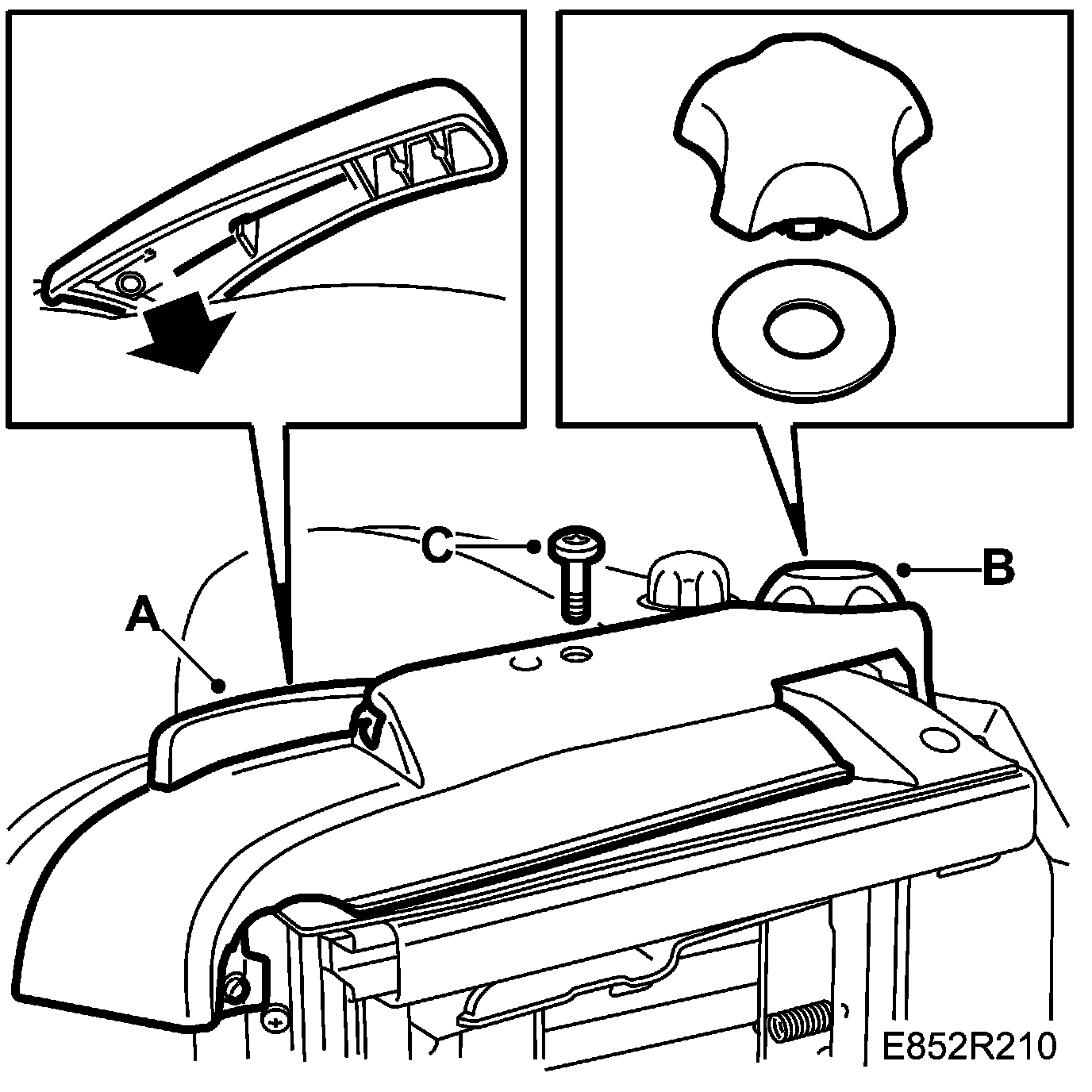

2. Remove the height adjustment lever (A) and backrest adjustment knob (B).







3. Raise the seat to its maximum height.
4. Remove the upper seat cowl, 2 covers and 3 screws (C).
Bend up the rear edge of the cowl and pull it forwards.

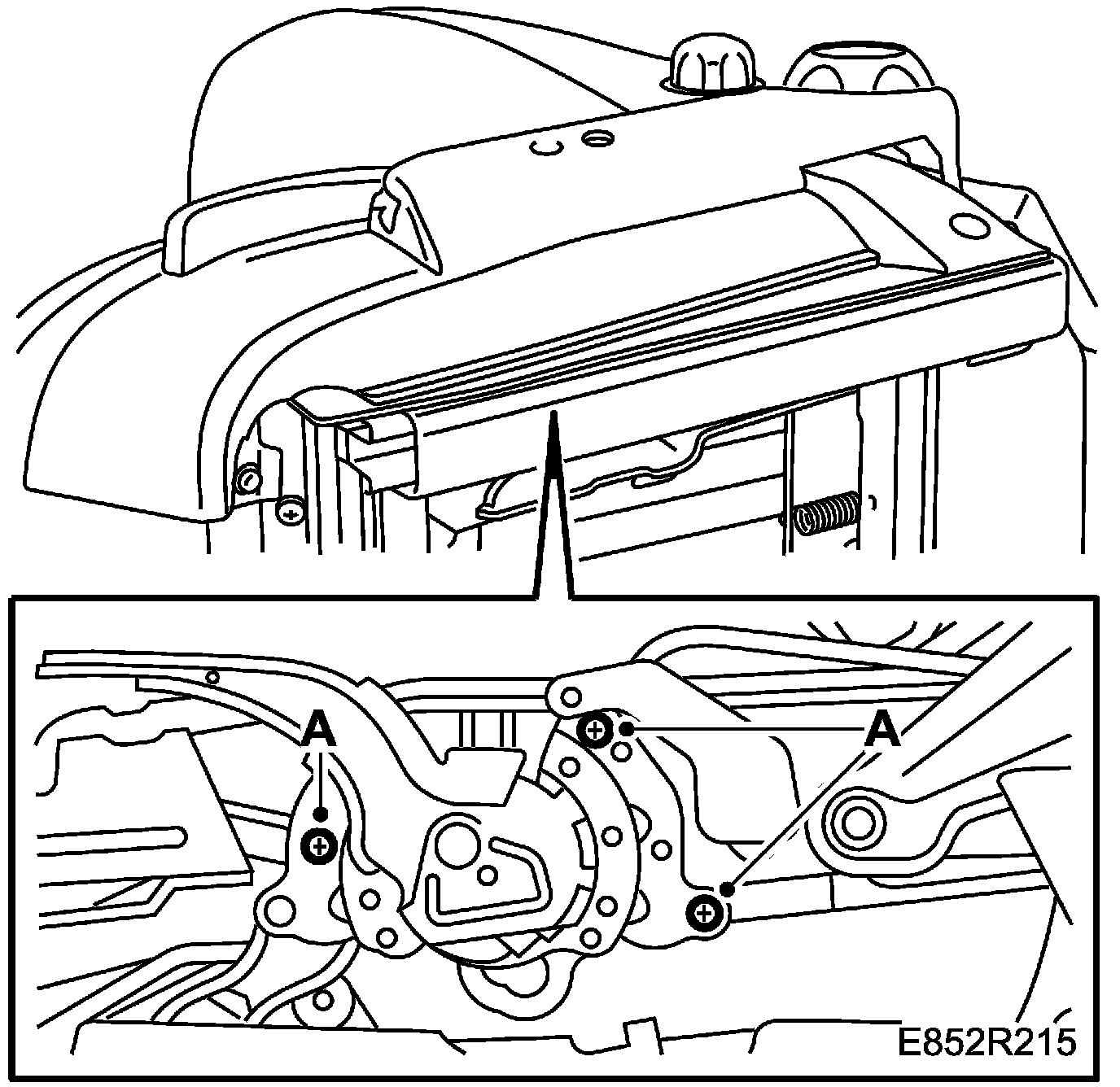

5. Remove the lumbar support mechanism, 4 screws (A).







To fit

NOTE: To assist fitting, the seat can be pressed down when the height adjustment mechanism is inserted.

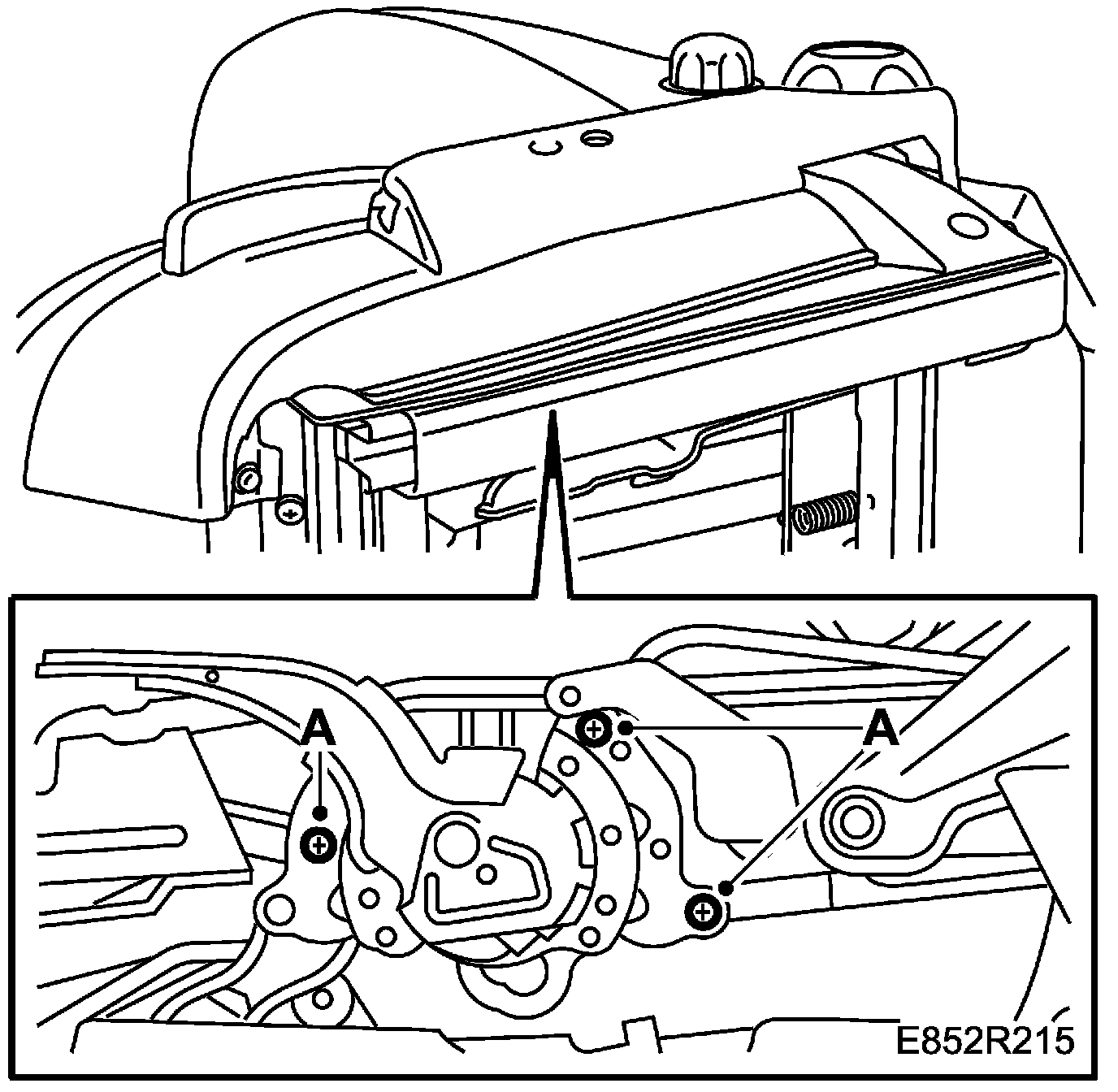

1. Fit the height adjustment mechanism, 4 screws (A).







2. Fit the upper seat cowl, 3 screws and 2 covers (C).







3. Fit the height adjustment lever (A) and backrest adjustment knob (B).
4. Raise the seat to its maximum height.
5. Fit the front seat.
