Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Diagrams >> Motor, Rear Height Adjustment, Electrically Adjustable Driver's Seat (357Dc)

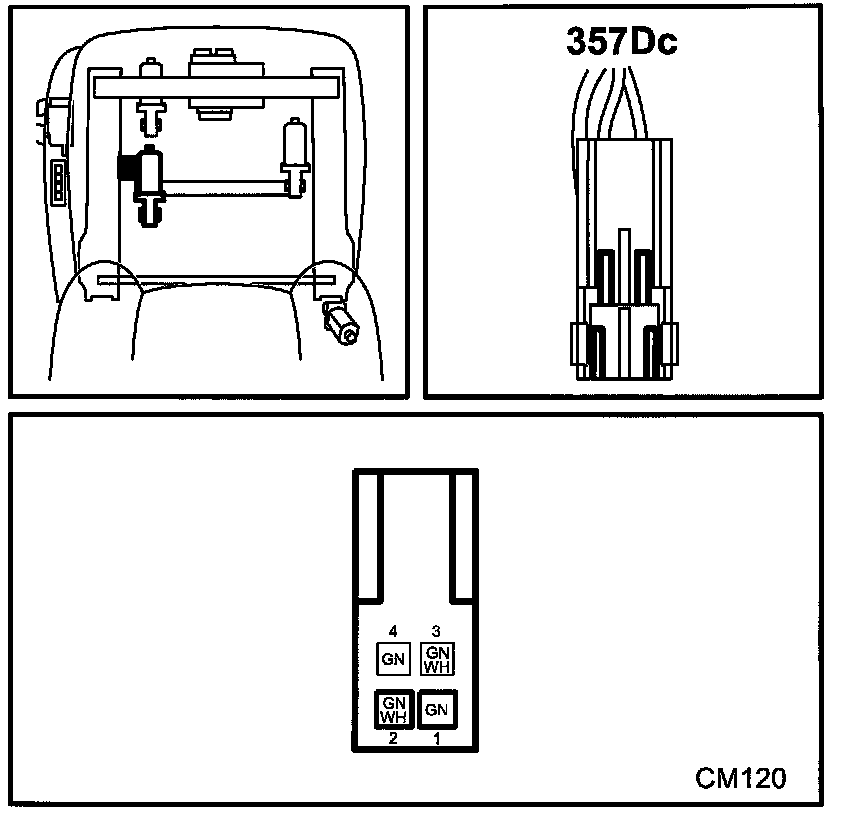

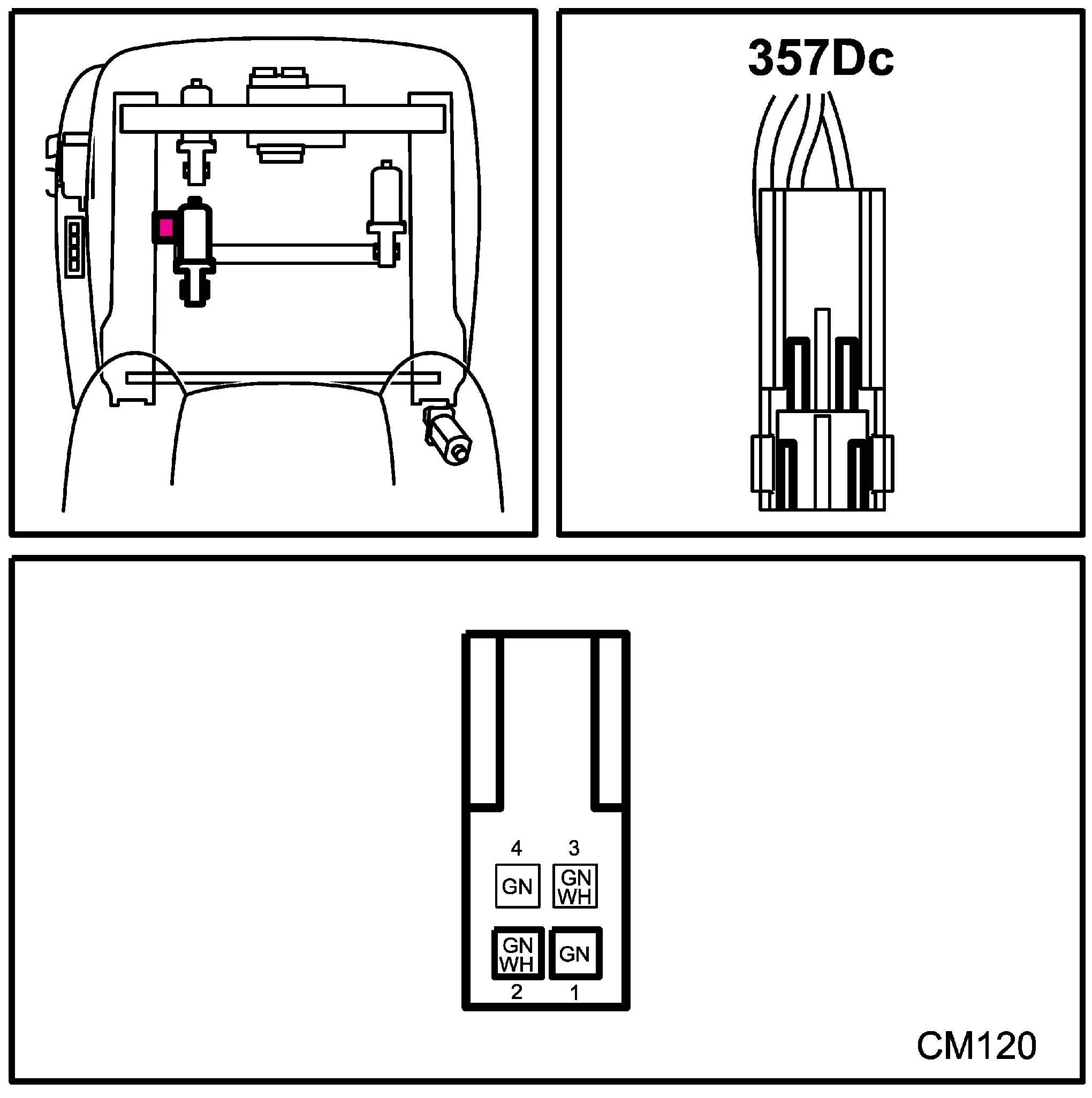

Motor, Rear Height Adjustment, Electrically Adjustable Driver's Seat (357Dc)

Motor, Rear Height Adjustment, Electrically Adjustable Driver's Seat (357Dc):



Motor, Rear Height Adjustment, Electrically Adjustable Driver's Seat (357Dc):
