Sunroof / Moonroof Windguard: Service and Repair

Wind Deflector Link

Removing

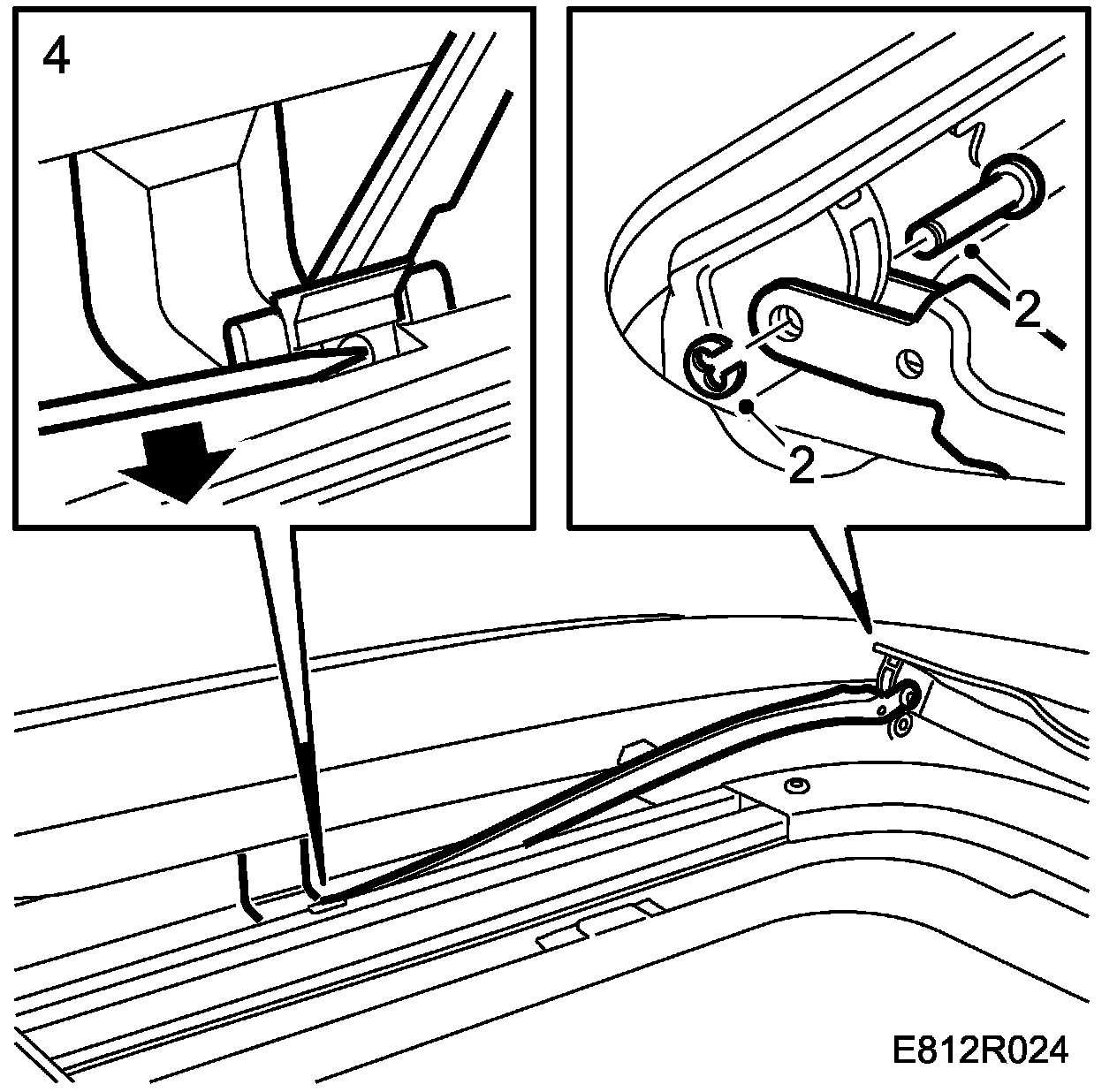

1. Open the sunroof.
2. Remove the pin retaining clip and the pin.
3. Lift up the wind deflector a small way and release the link.
4. Remove the inner clip on the link mounting using a small screwdriver, and move the link obliquely upwards.

Fitting

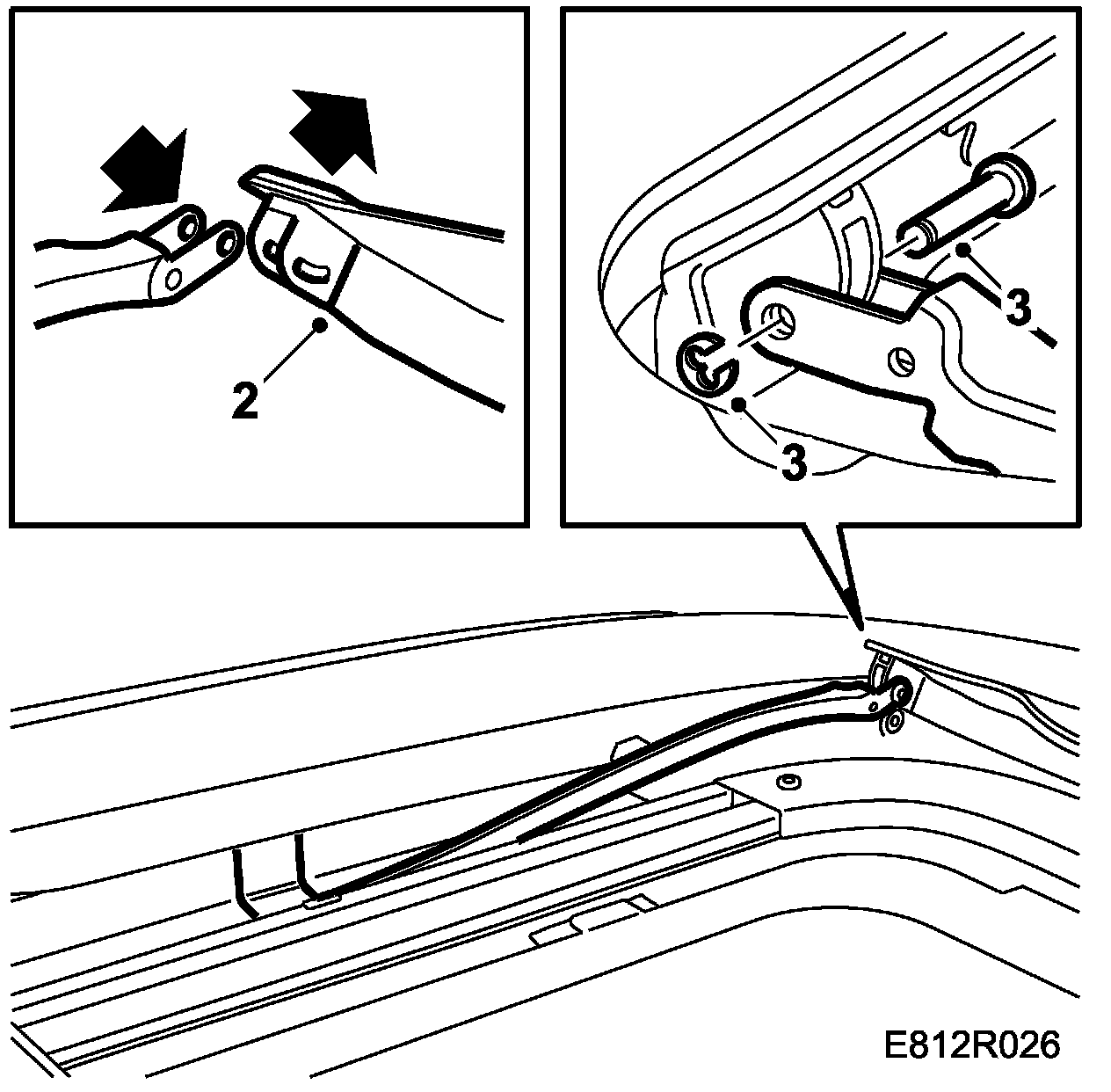

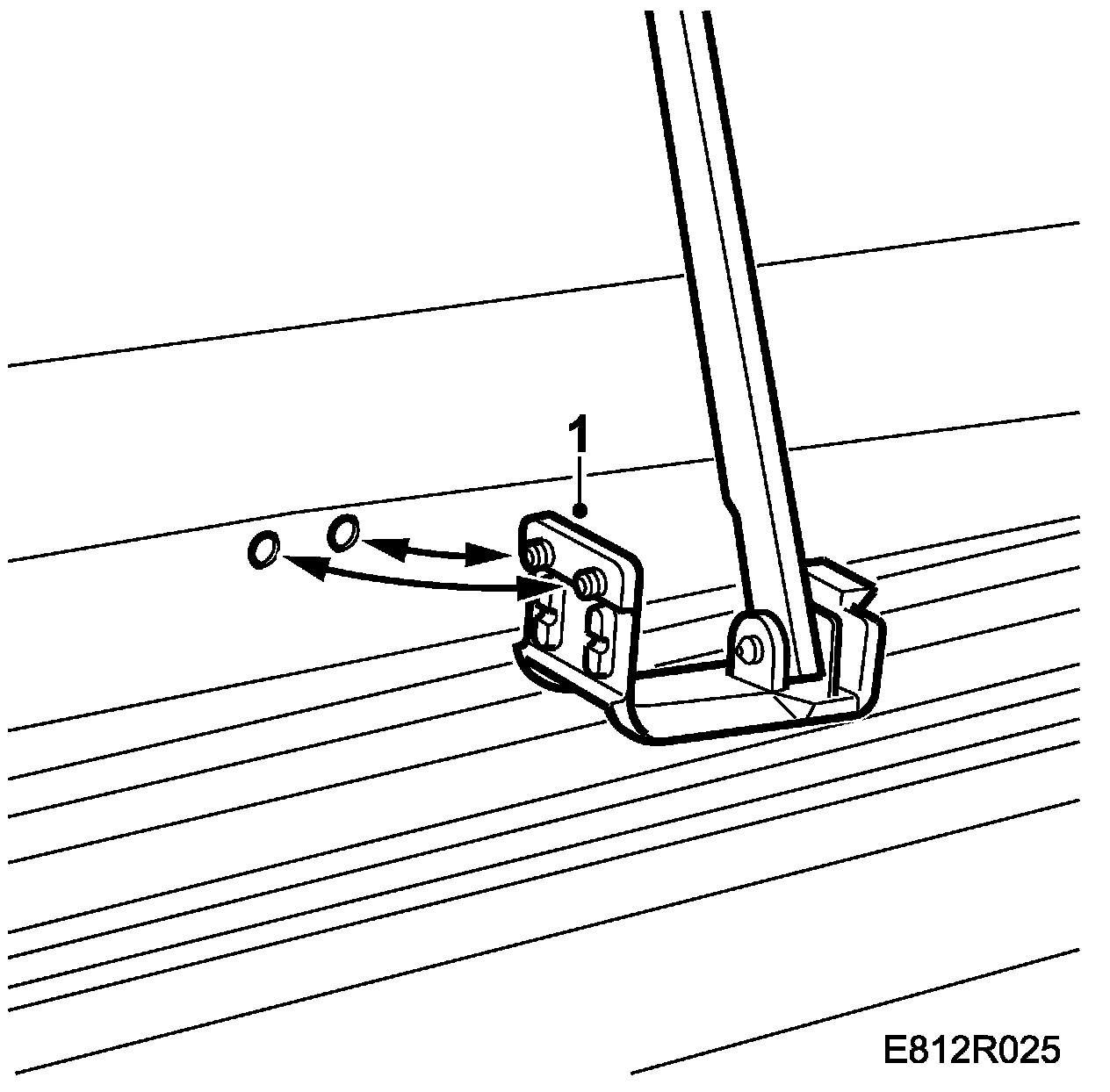

1. Fit the mounting in the hole and press the link's clip into the groove.
2. Lift up the wind deflector a small way and fit the link to the mounting on the wind deflector.







3. Fit the pin and pin retaining clip.
4. Check the function.
