Sunroof / Moonroof Drain: Service and Repair

Water Channel

Removing

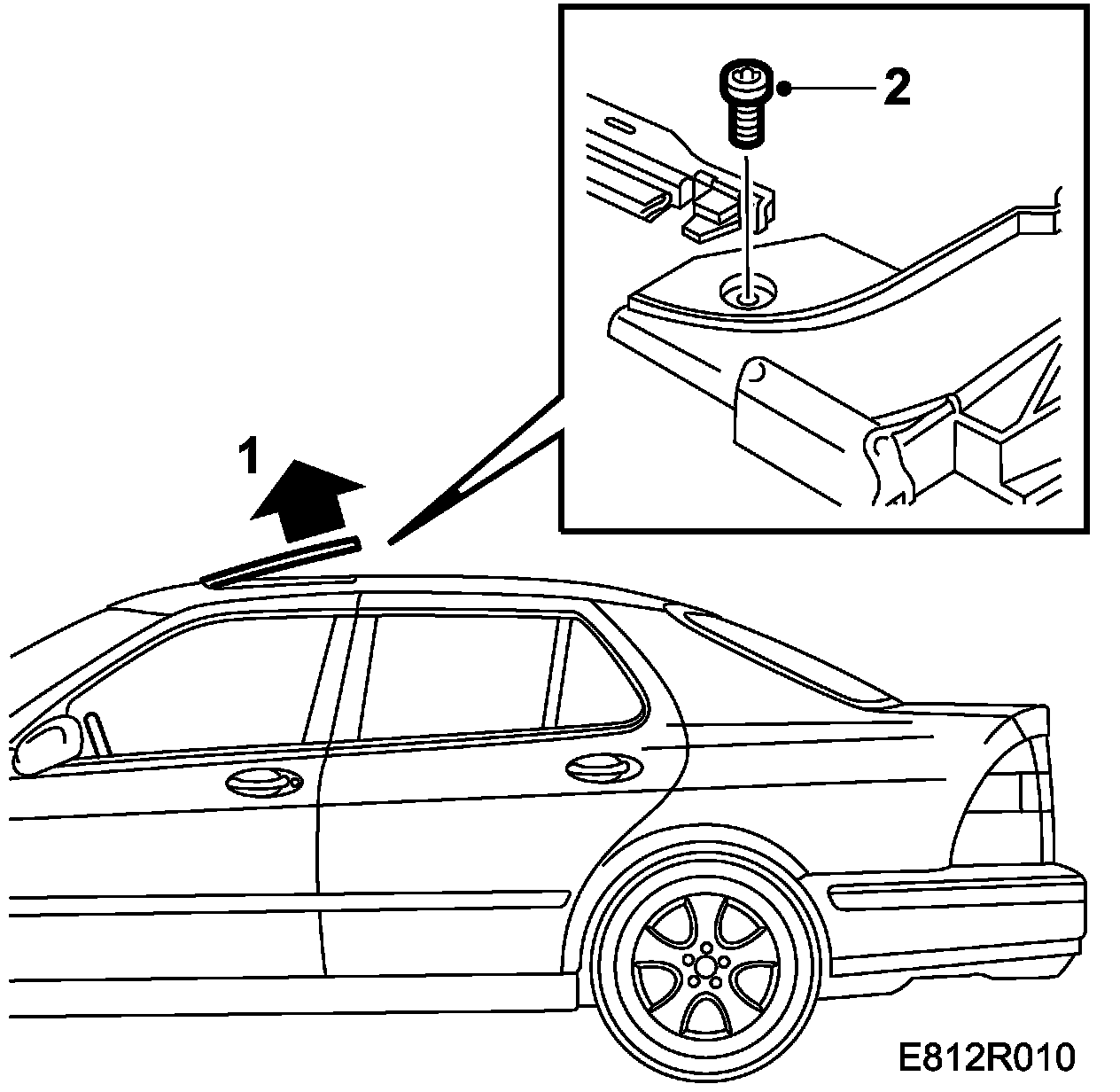

1. Raise the rear of the sunroof.
2. Remove the two screws holding the water channel.

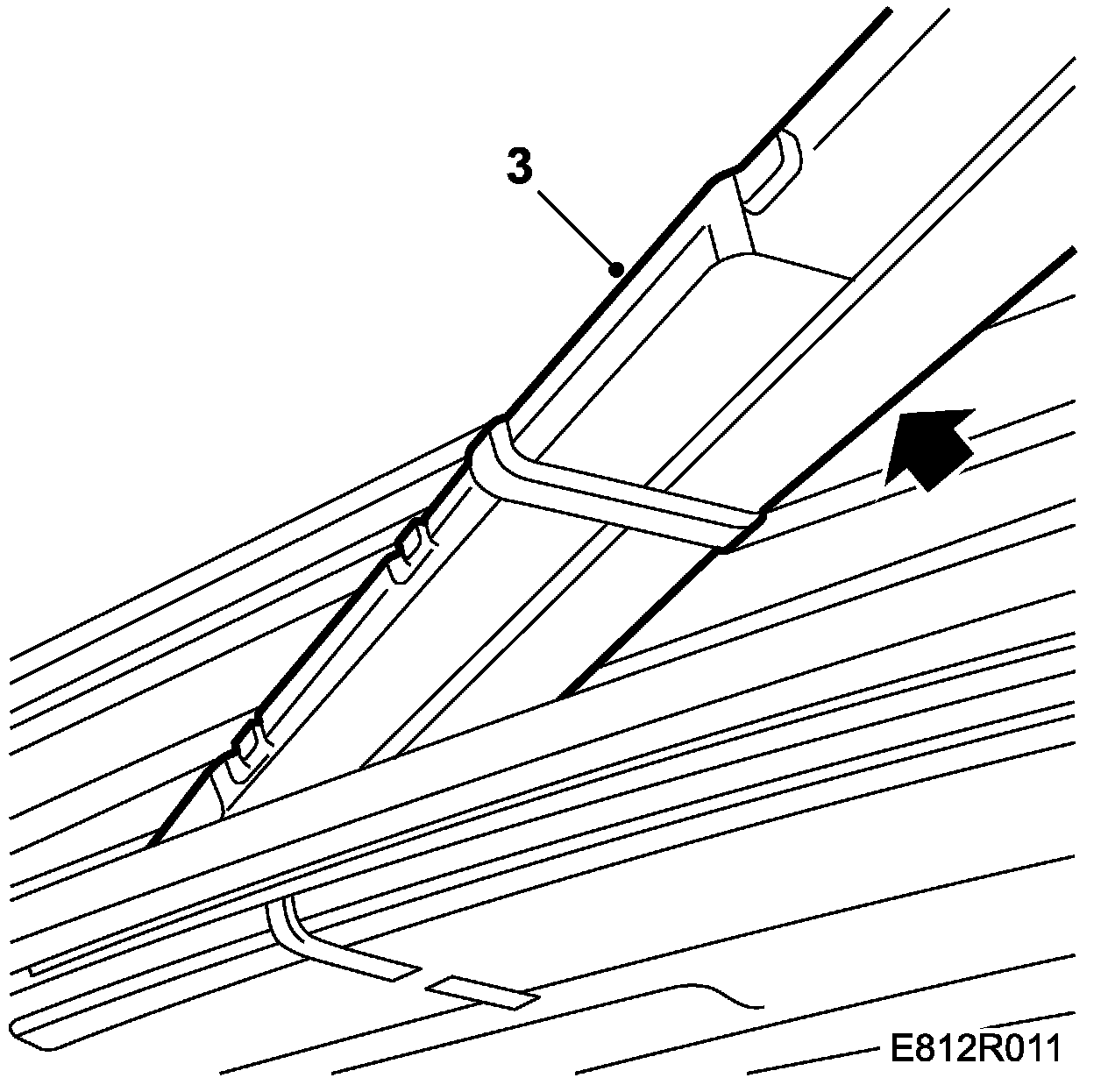

3. Loosen the water channel by lifting it. Then pull one of the edges forwards and let the other edge slide in between the roof and the sunroof unit. Pull out the water channel.







Fitting

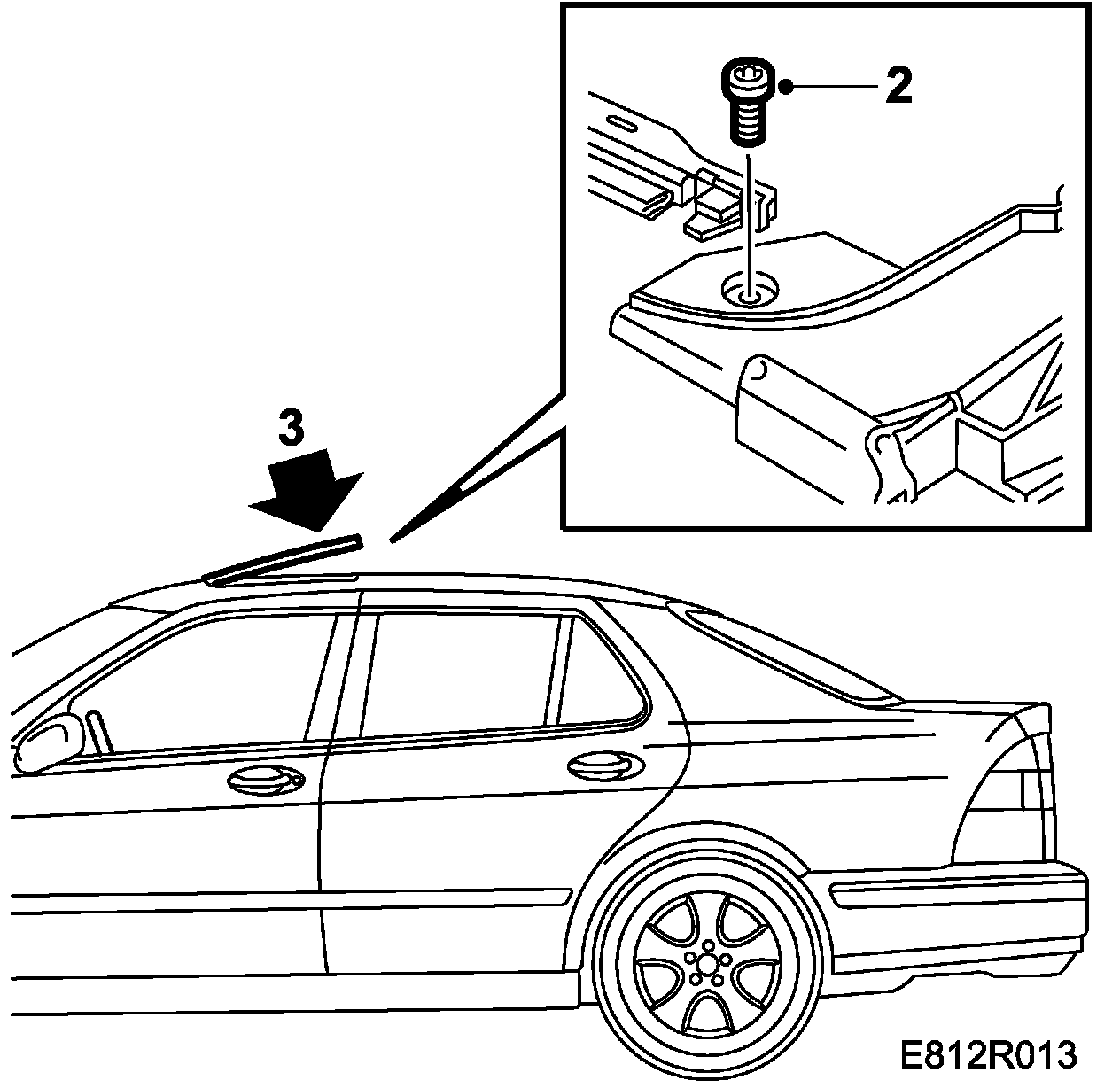

1. Put the water channel in position by inserting one edge in between the roof and the sunroof unit. Tilt the other edge so that it fits over the screw holes.
2. Screw on the water channel.







3. Close the hatch.
