Function Check of the Autodimming Rear-View Mirrors

Function Check Of The Autodimming Rear-View Mirrors

Check procedure

IMPORTANT: The auto-dimming mirrors must not be supplied with a voltage greater than 1.5 V. A higher voltage can damage the mirrors. A standard 1.5 V battery can be used to diagnose/test the dimming function.

1. Turn the ignition key to the ON position.

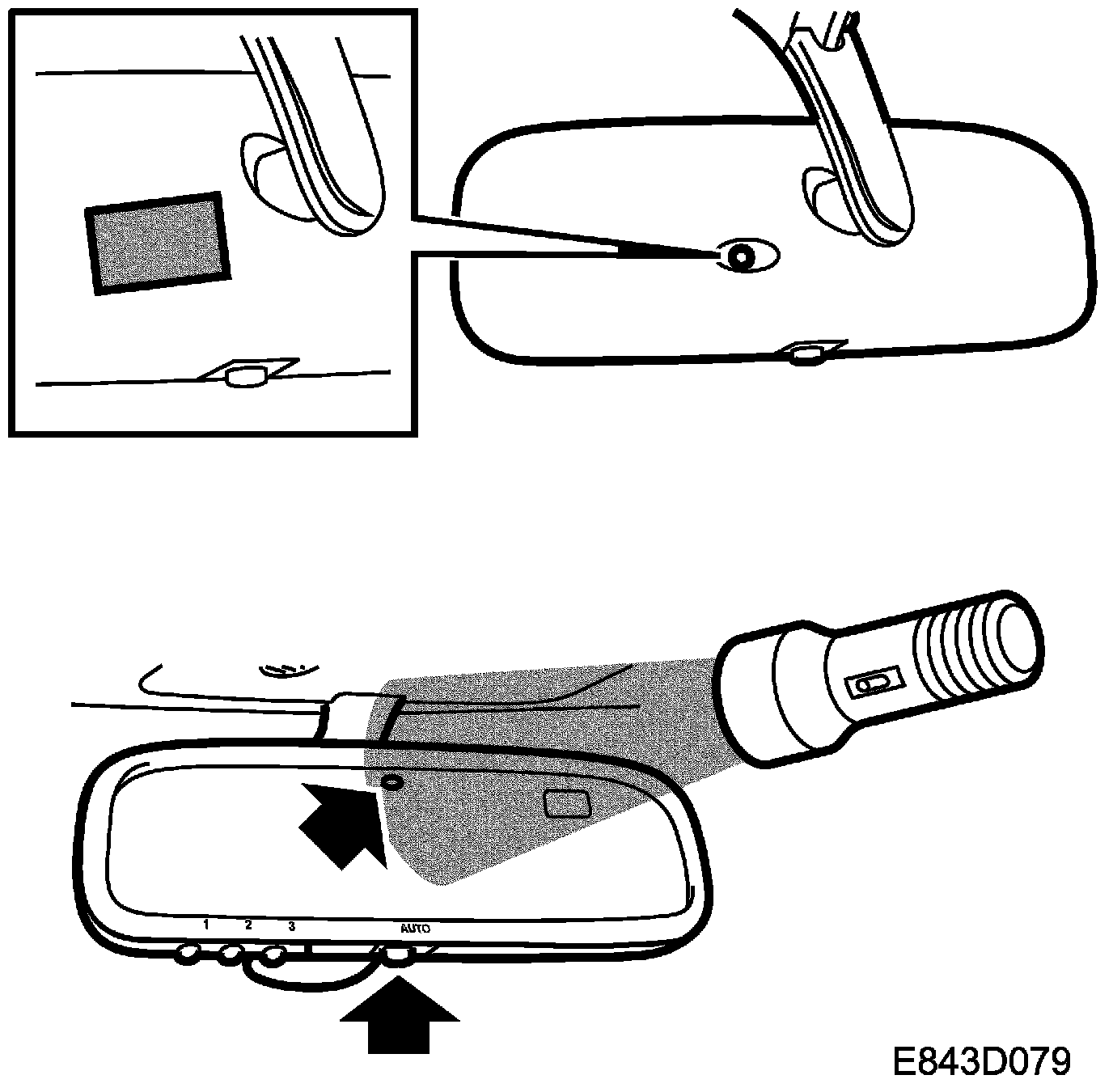

2. Make sure the auto button is depressed.







3. Place a piece of black tape or hold a finger over the front sensor.
4. Shine a torch on the rear sensor. The mirror should become gradually darker.
5. Turn off the torch and remove the tape. The mirror should now become gradually lighter.
