Side Bolster, 5D



Side Bolster, 5D

To remove







1. Pull on the top edge of the side bolster to release the locking tongue.
2. Unhook the bottom of the side bolster and lift out the bolster.

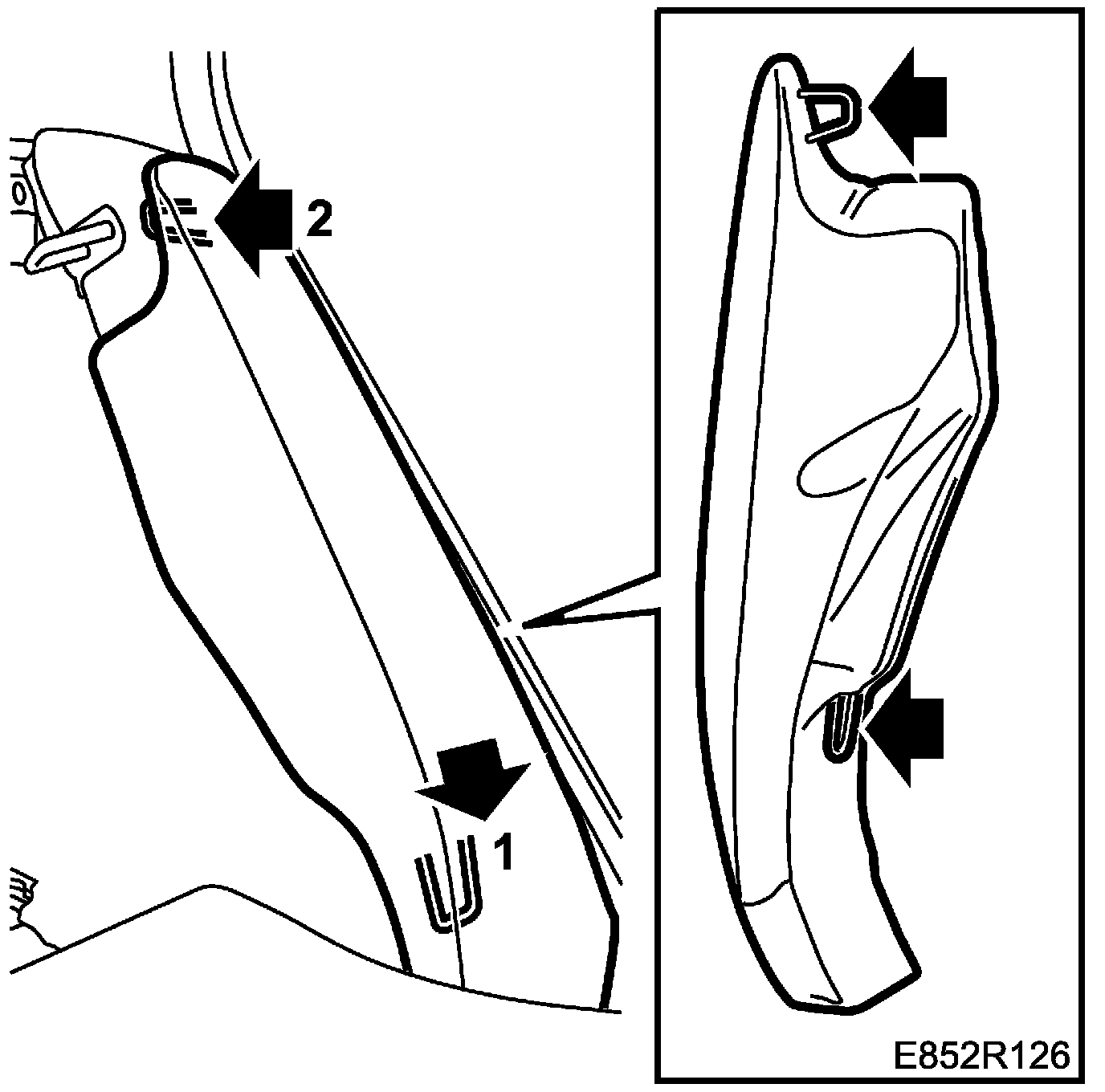

To fit







1. Hook on the bottom of the side bolster.
2. Press on the top locking tongue of the bolster.
