D Pillar Trim, 5D

D Pillar Trim, 5D

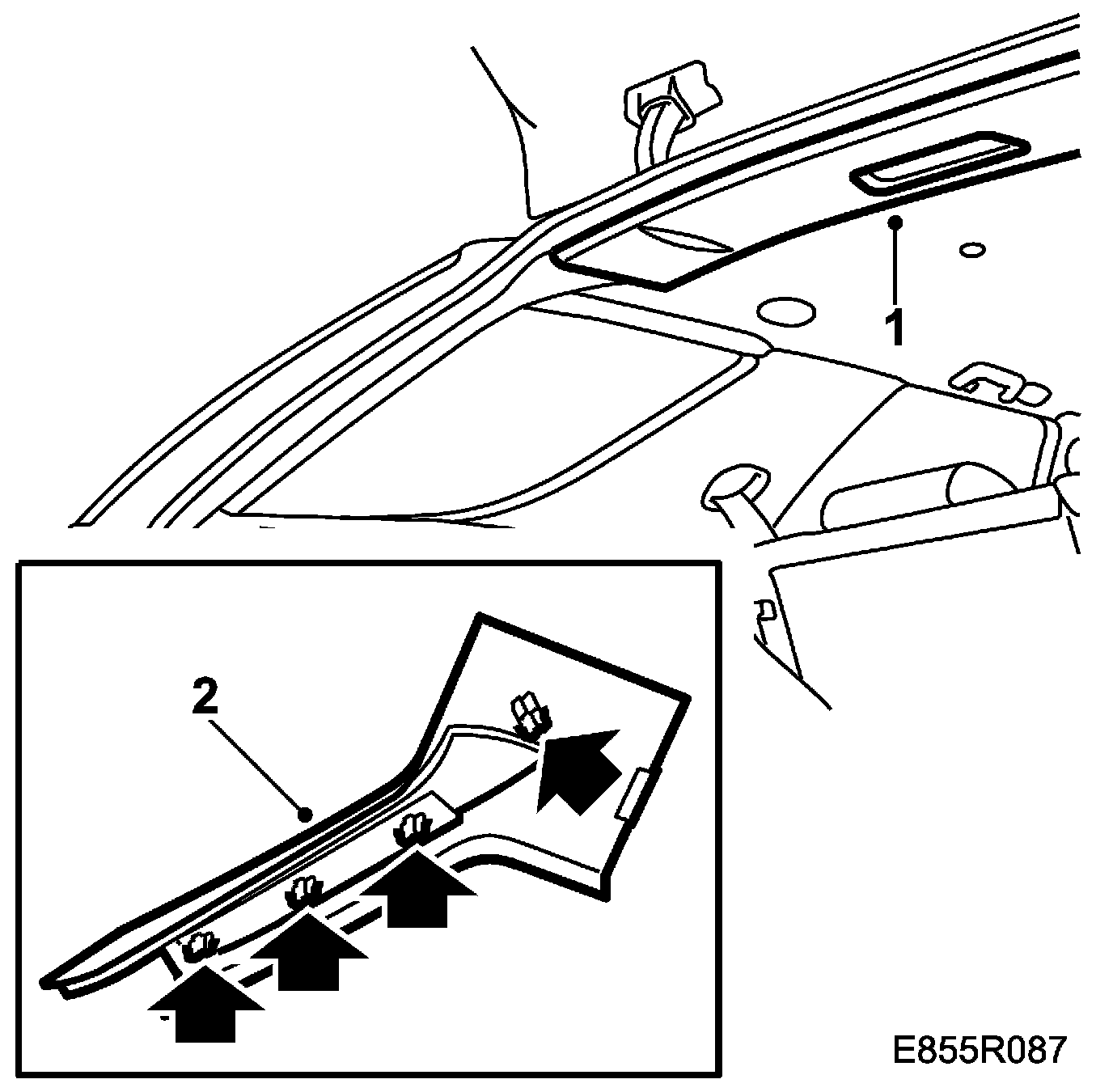

To remove







1. Detach the rear roof covering so that clearance for the D pillar trim is obtained.
2. Detach the D pillar trim by pulling it forwards (towards the front of the car), fastened with clips.

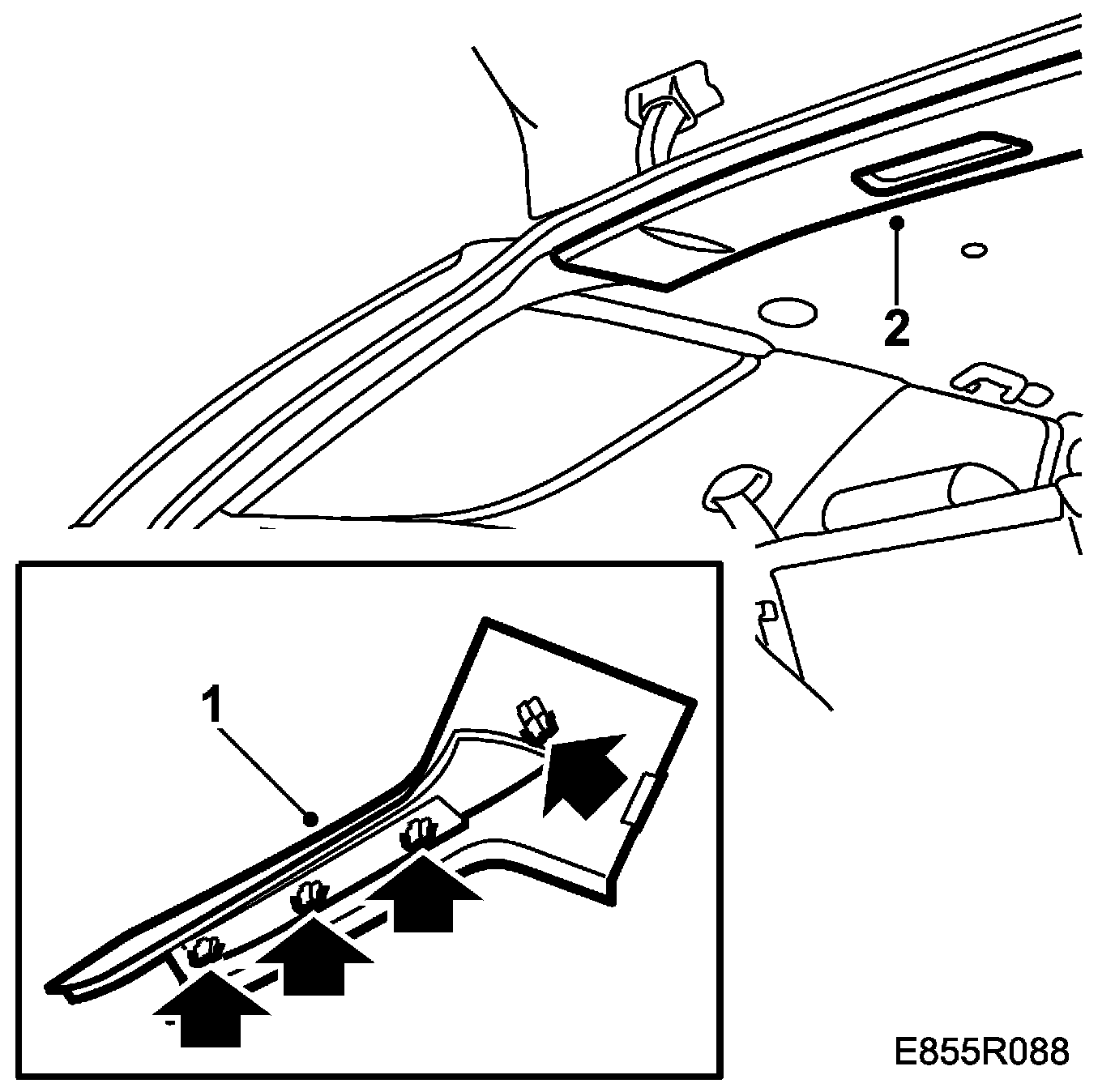

To fit







1. Press the D pillar trim into place. Adjust the weatherstrip over the edge of the D pillar trim.
2. Press the rear roof covering into place.
