C Pillar Trim, 4D

C Pillar Trim, 4D

To remove

WARNING: Take care not to damage or loosen the energy absorbers. Damaged or loose energy absorbers must not be refitted. If the occasion should arise, the entire headlining must be changed. Damaged energy absorbers may impair head protection in case of a collision.







1. Lower the backrest.

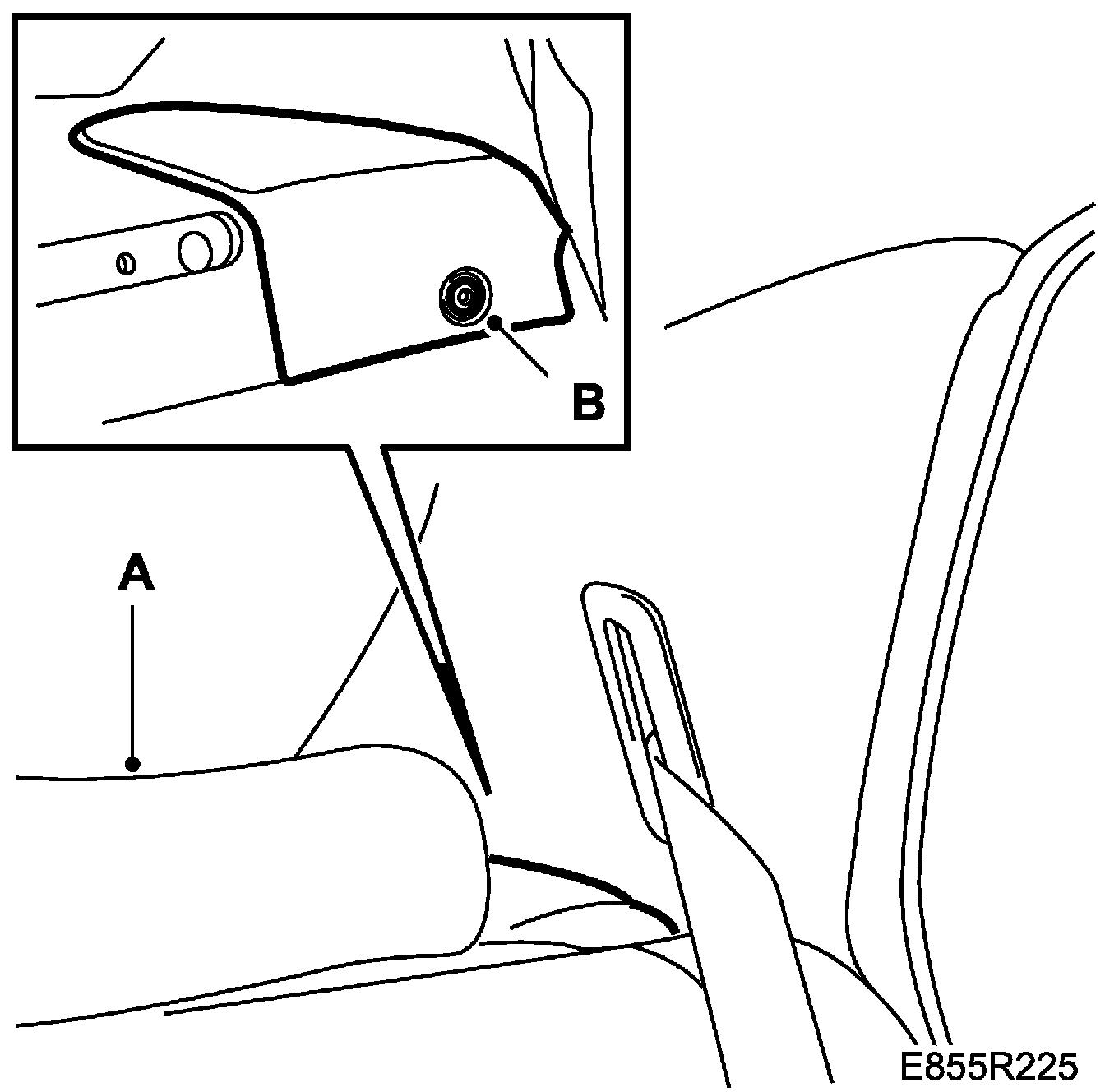

2. Remove the rear seat's head restraint (A), 1 screw.
3. Remove the speaker grille (B) (fastened with clips) in the parcel shelf.

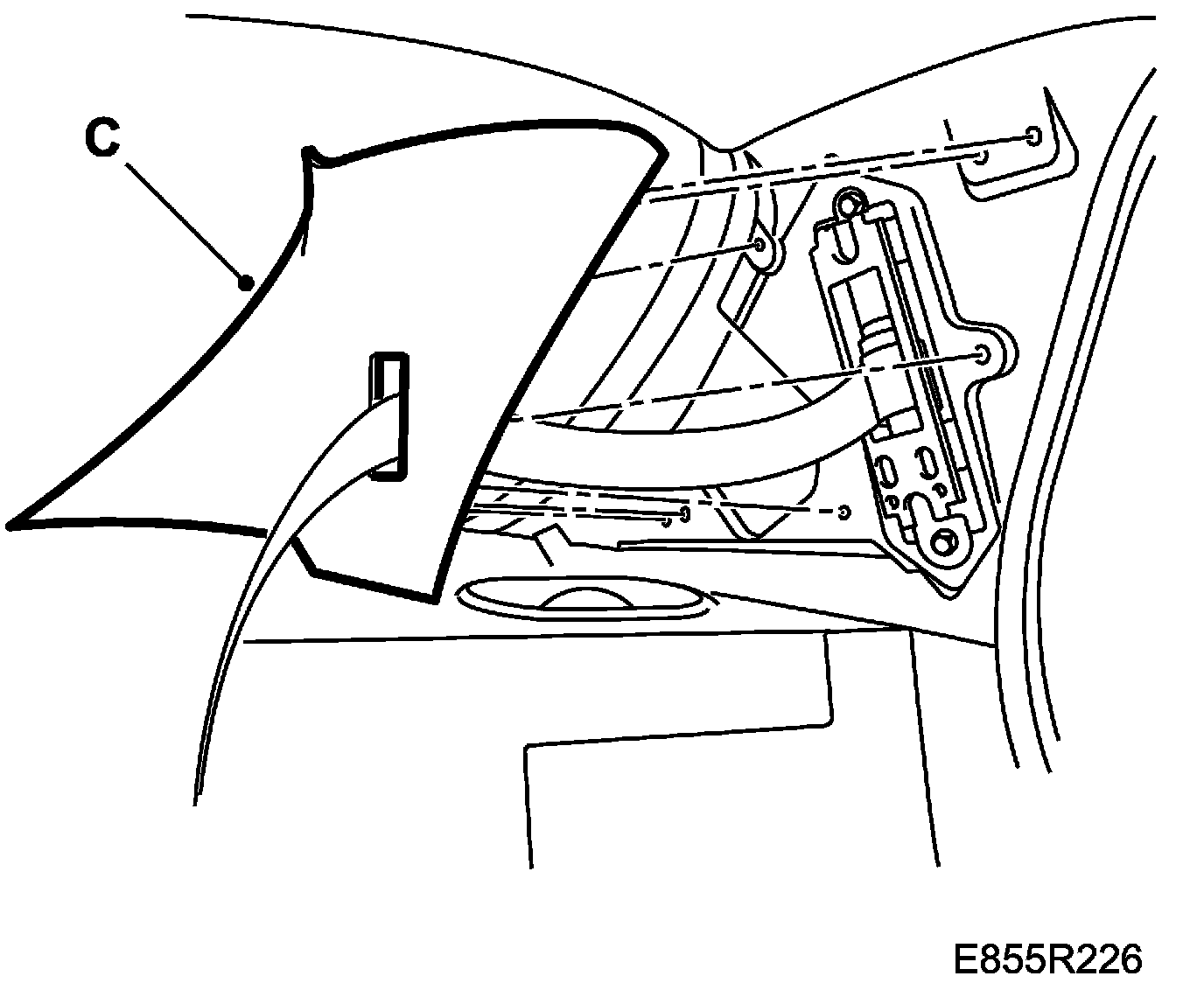

4. Pull out the C-pillar trim (C) (fastened with 5 clips).







To fit

WARNING: Take care not to damage or loosen the energy absorbers. Damaged or loose energy absorbers must not be refitted. If the occasion should arise, the entire headlining must be changed. Damaged energy absorbers may impair head protection in case of a collision.

NOTE: Check that the door sealing moulding fits correctly.

1. Fit the C-pillar trim (C) (fastened with 5 clips). The C-pillar trim has 2 guide pins.

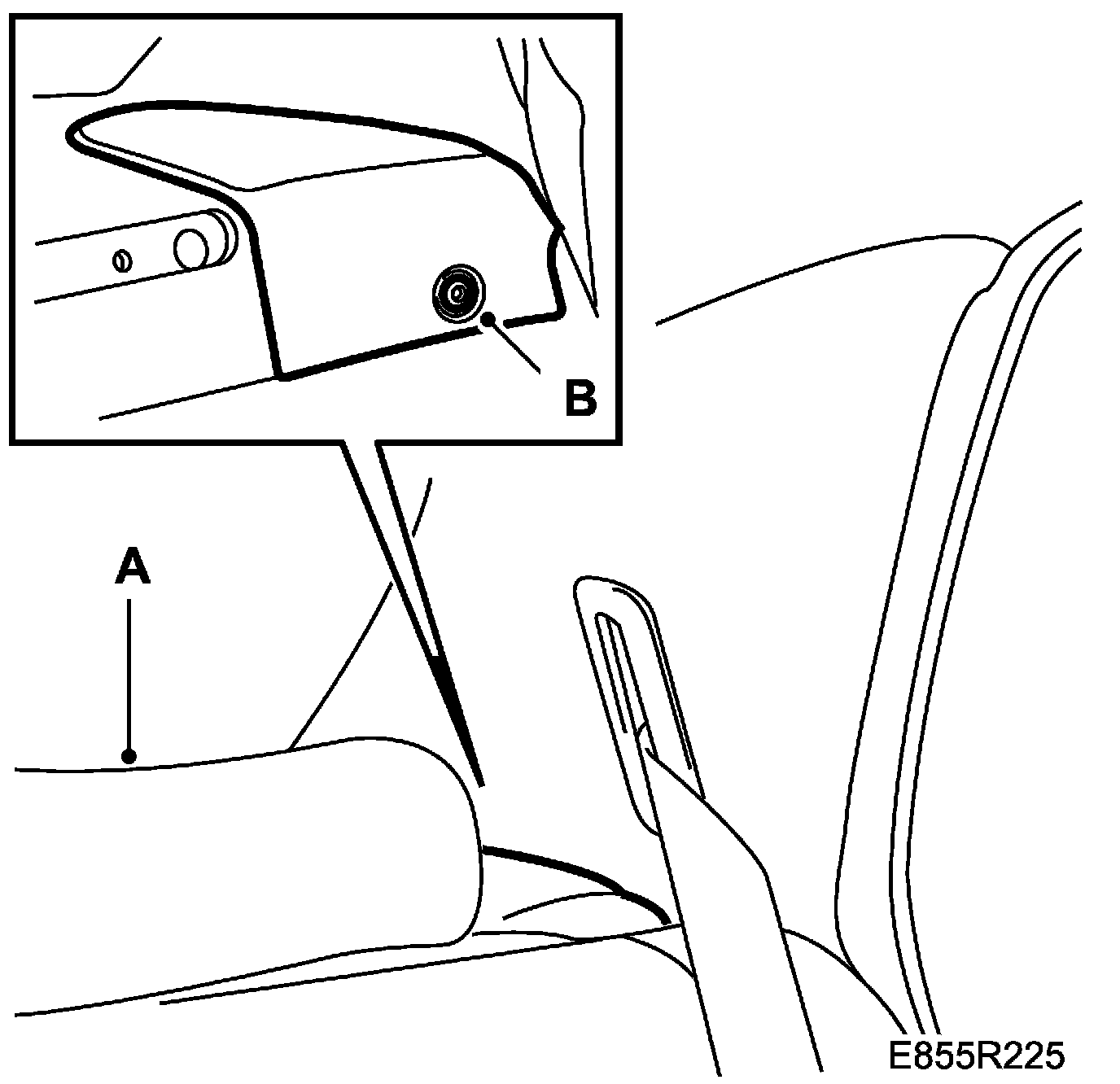

2. Fit the speaker grille (B) (fastened with clips) in the parcel shelf.







3. Screw in the head restraint for the rear seat (A), 1 screw.
4. Raise the backrest.

NOTE: Check that the door sealing moulding fits correctly.
