Luggage Compartment Trim, Side Trim, 4D

Luggage Compartment Trim, Side Trim, 4D

To remove







1. If necessary, remove the CD changer on the left-hand side and/or the safety net on the right.
2. Remove the scuff plate.
3. Remove the floor panel.

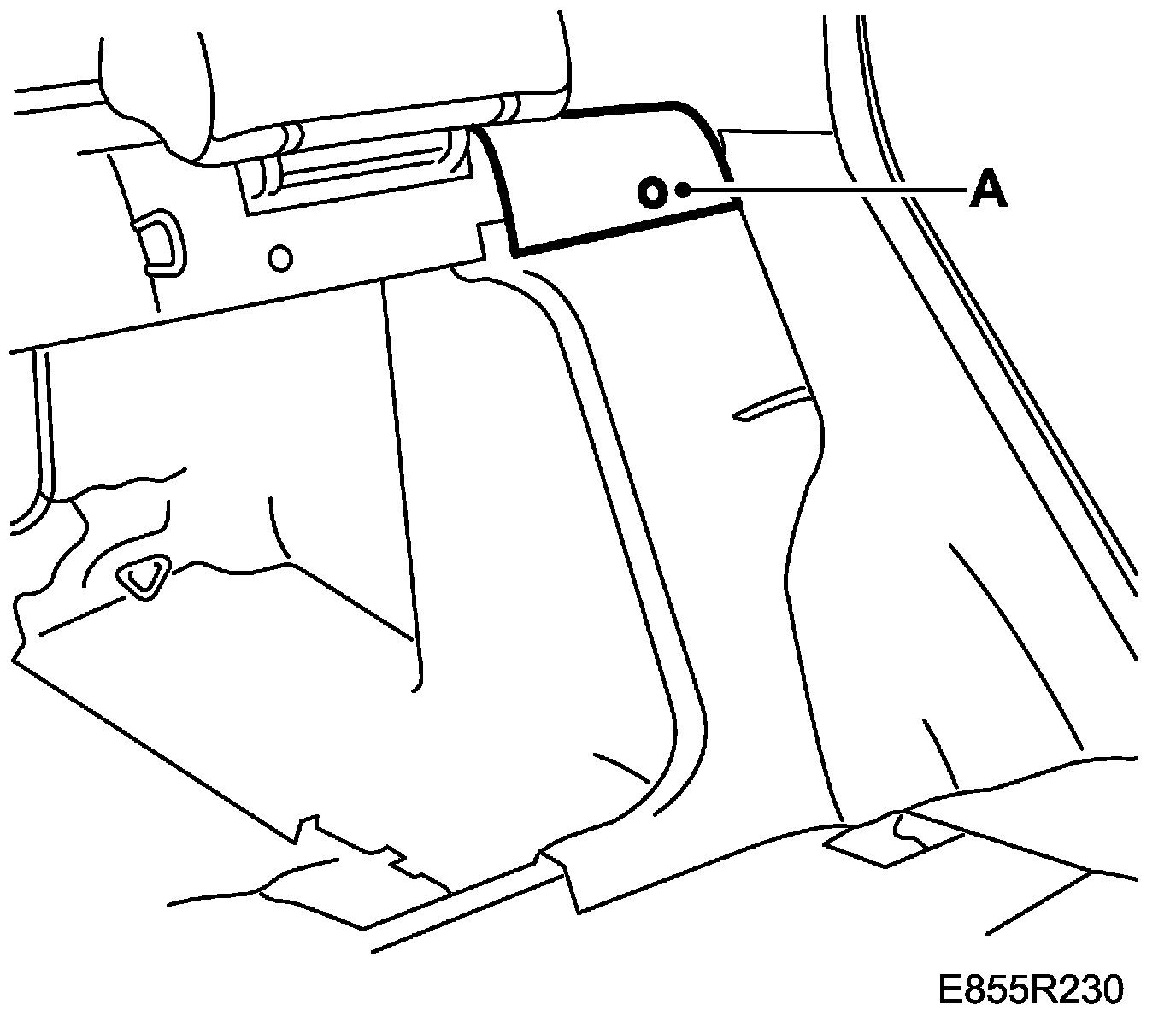

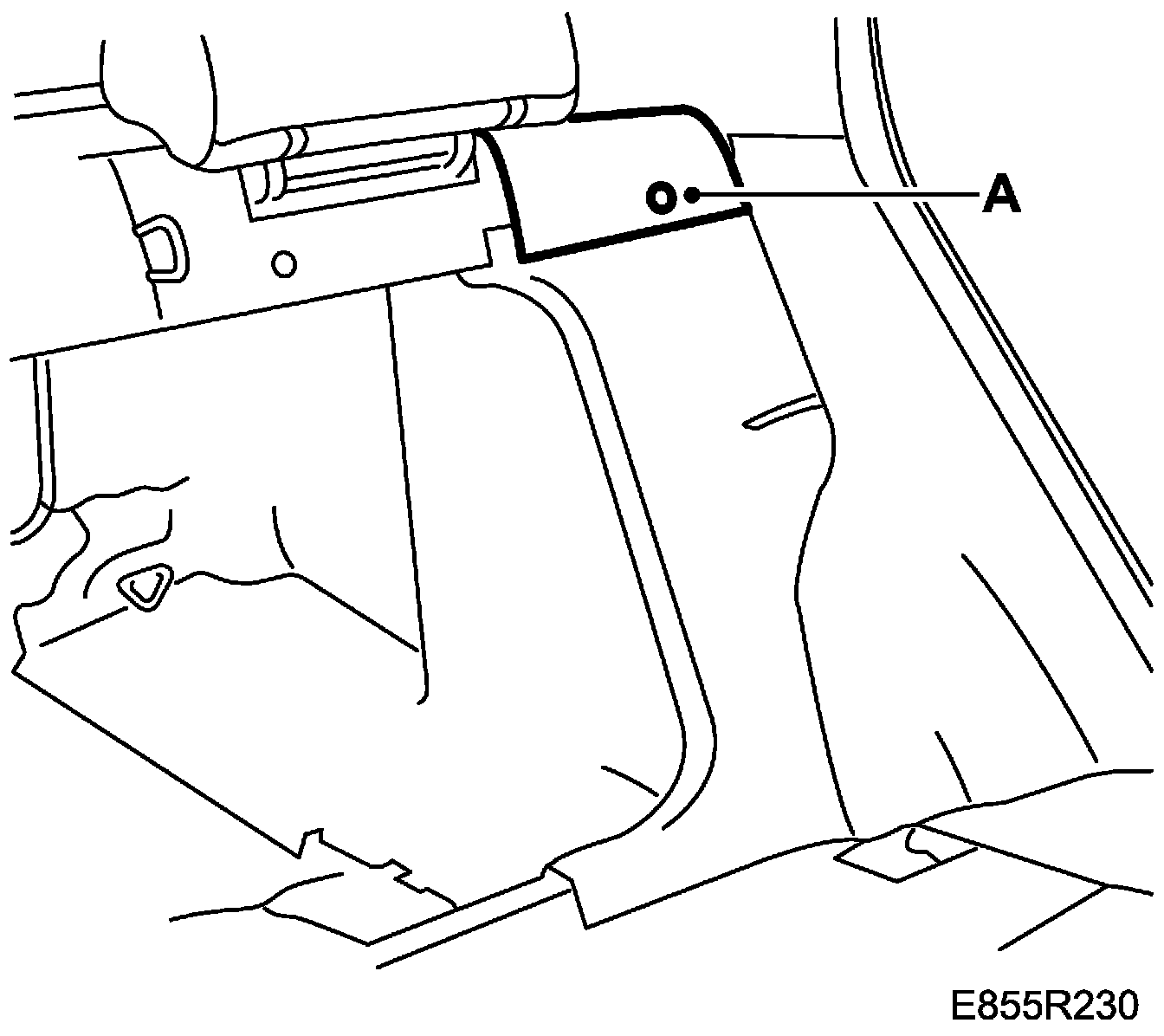

4. Remove the speaker grille from the parcel shelf on the side concerned (fastened with clips (A)).

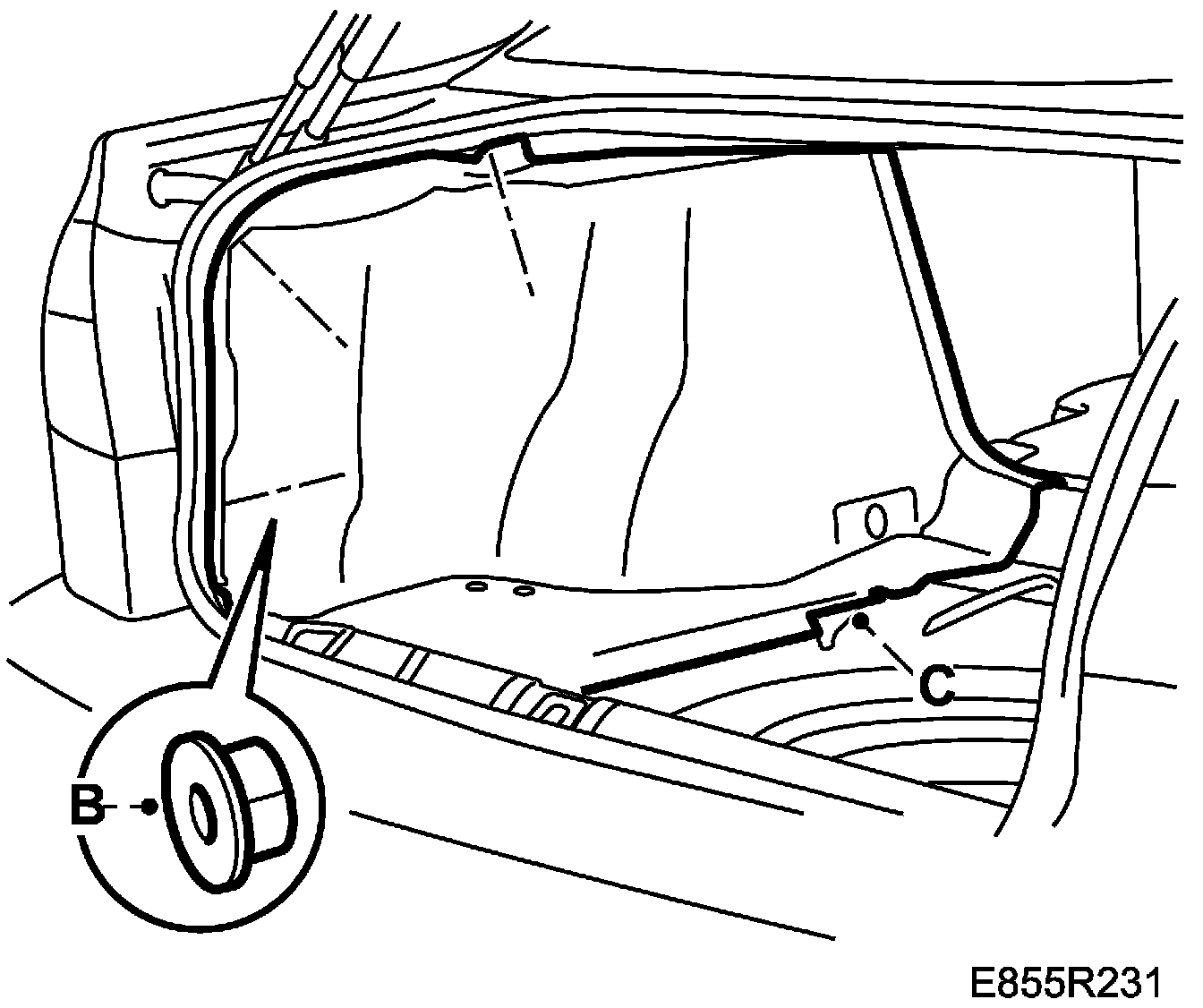

5. Remove 3 plastic nuts (B) holding the side trim.







6. Lift out the side trim (C).

To fit

1. Lift in the side trim (C).







2. Fit 3 plastic nuts (B) holding the side trim.
3. Fit the speaker grille to the parcel shelf on the side concerned (fastened with clips) (A).







4. Fit the floor panel.
5. Fit the scuff plate.
6. If necessary, fit the CD changer on the left-hand side and/or the safety net on the right.
