Luggage Compartment Trim, Lower Floor, 5D

Luggage Compartment Trim, Lower Floor, 5D

To remove







1. Remove the luggage compartment floor, clips at front and handle at rear.

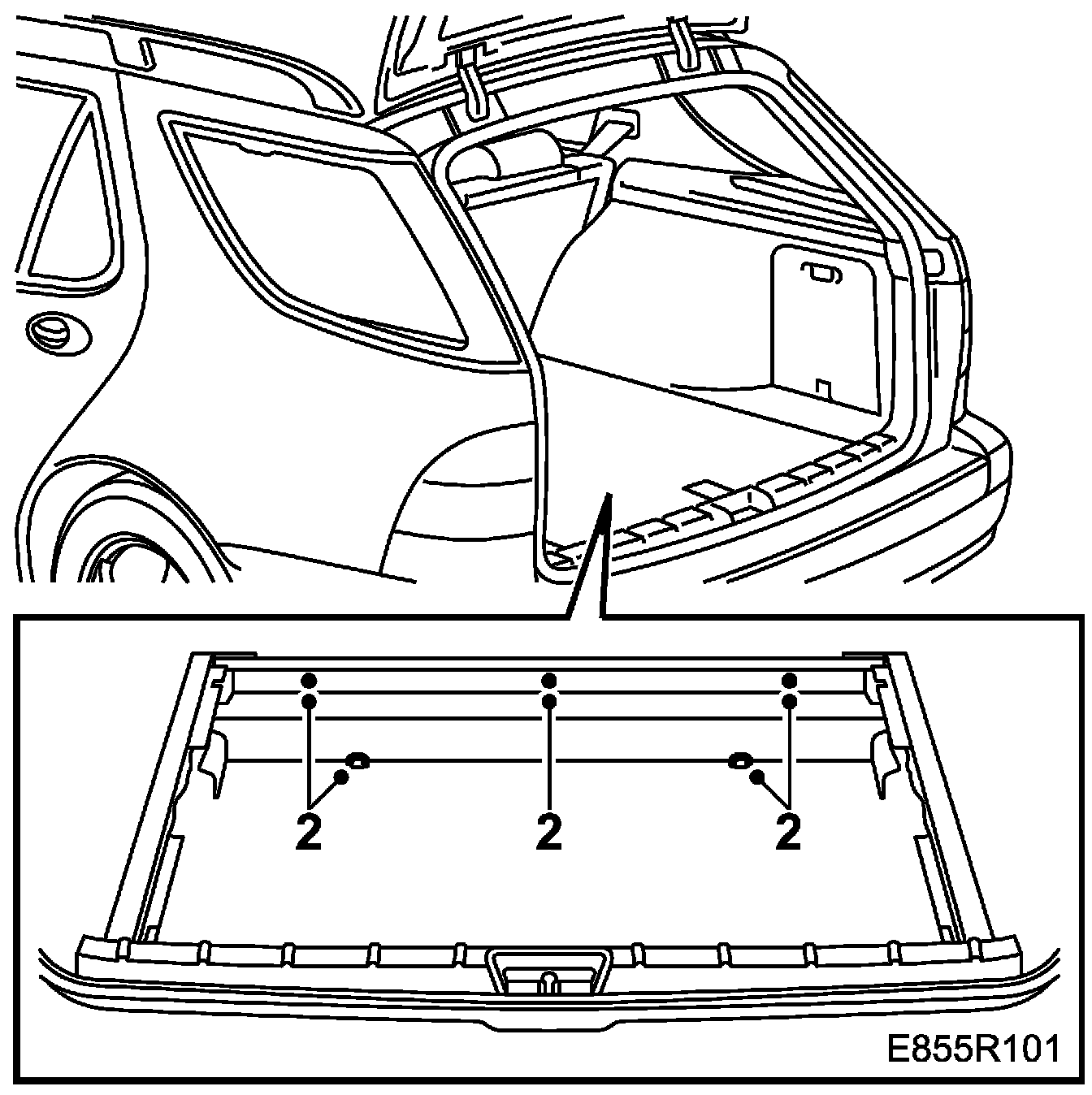

2. Remove the trim over the spare wheel, 3 clips and 2 nuts at front.

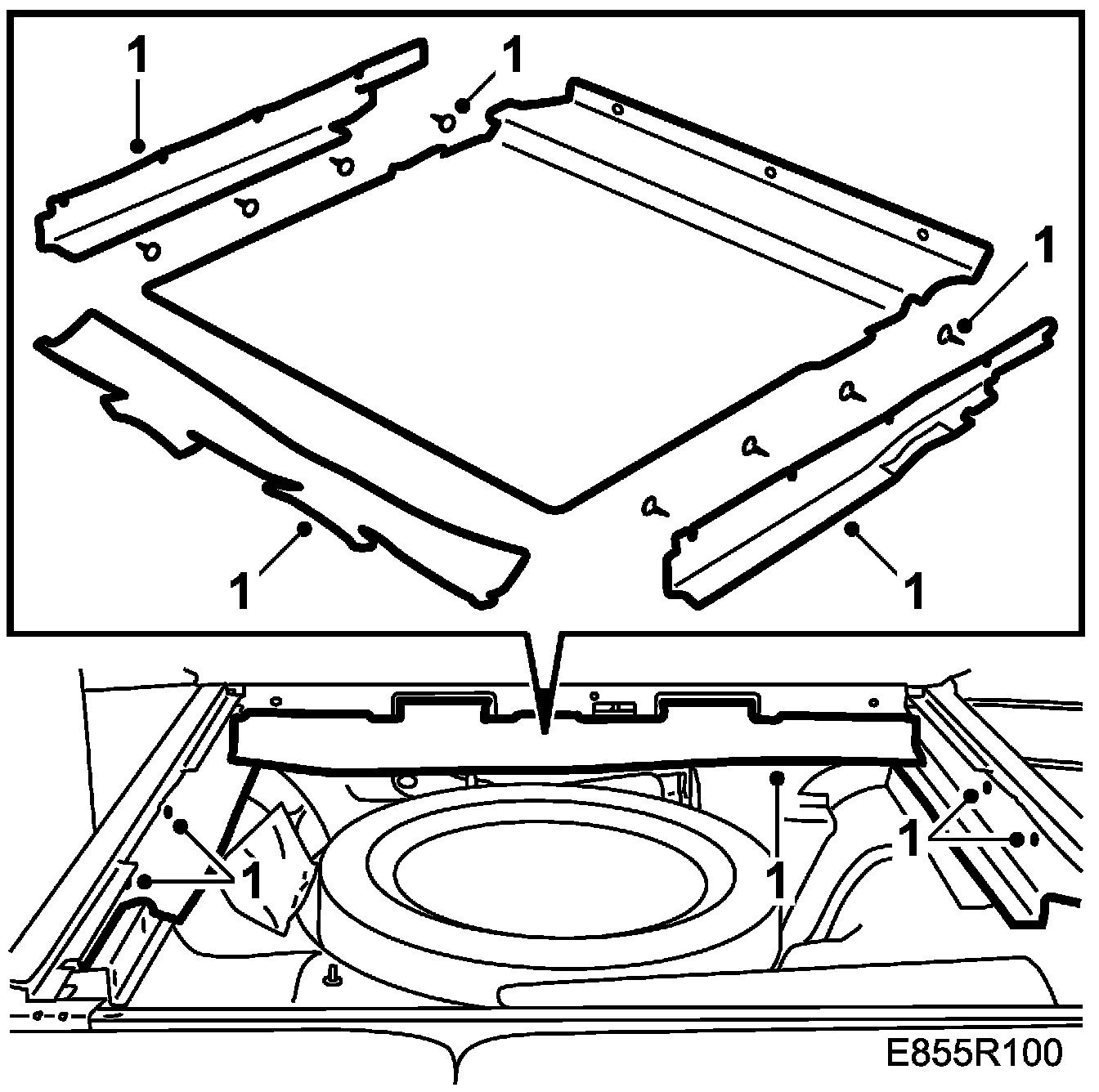

3. Remove the trim on the sides (clips) and the trim at the rear.







To fit







1. Fit the trim on the sides and the trim at rear.

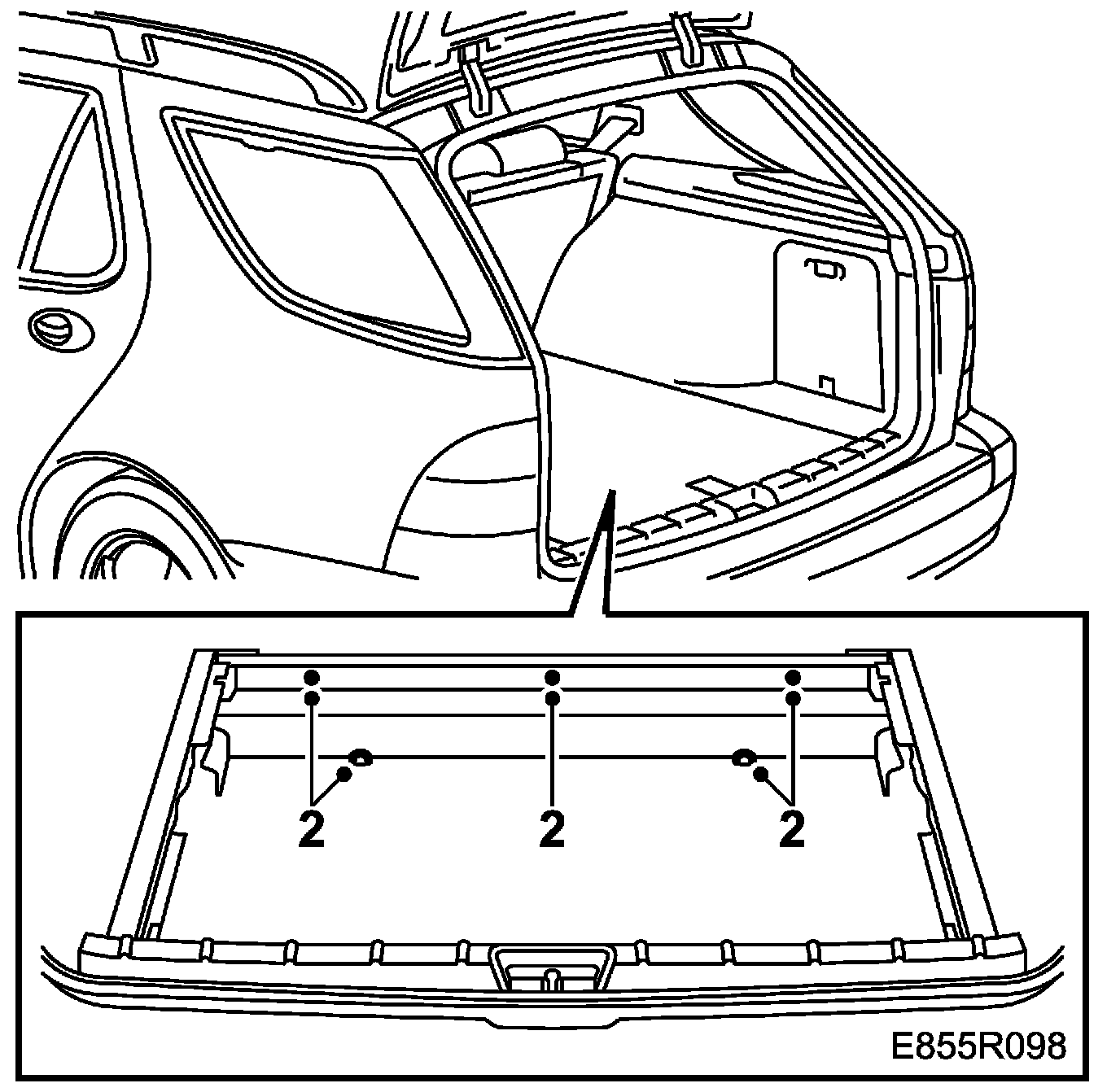

2. Fit the trim over the spare wheel, 3 clips and 2 nuts at front.







3. Fit the luggage compartment floor.
