Luggage Compartment Trim, Floor Panel, 4D

Luggage Compartment Trim, Floor Panel, 4D

To remove







1. Lower the rear seat backrest.

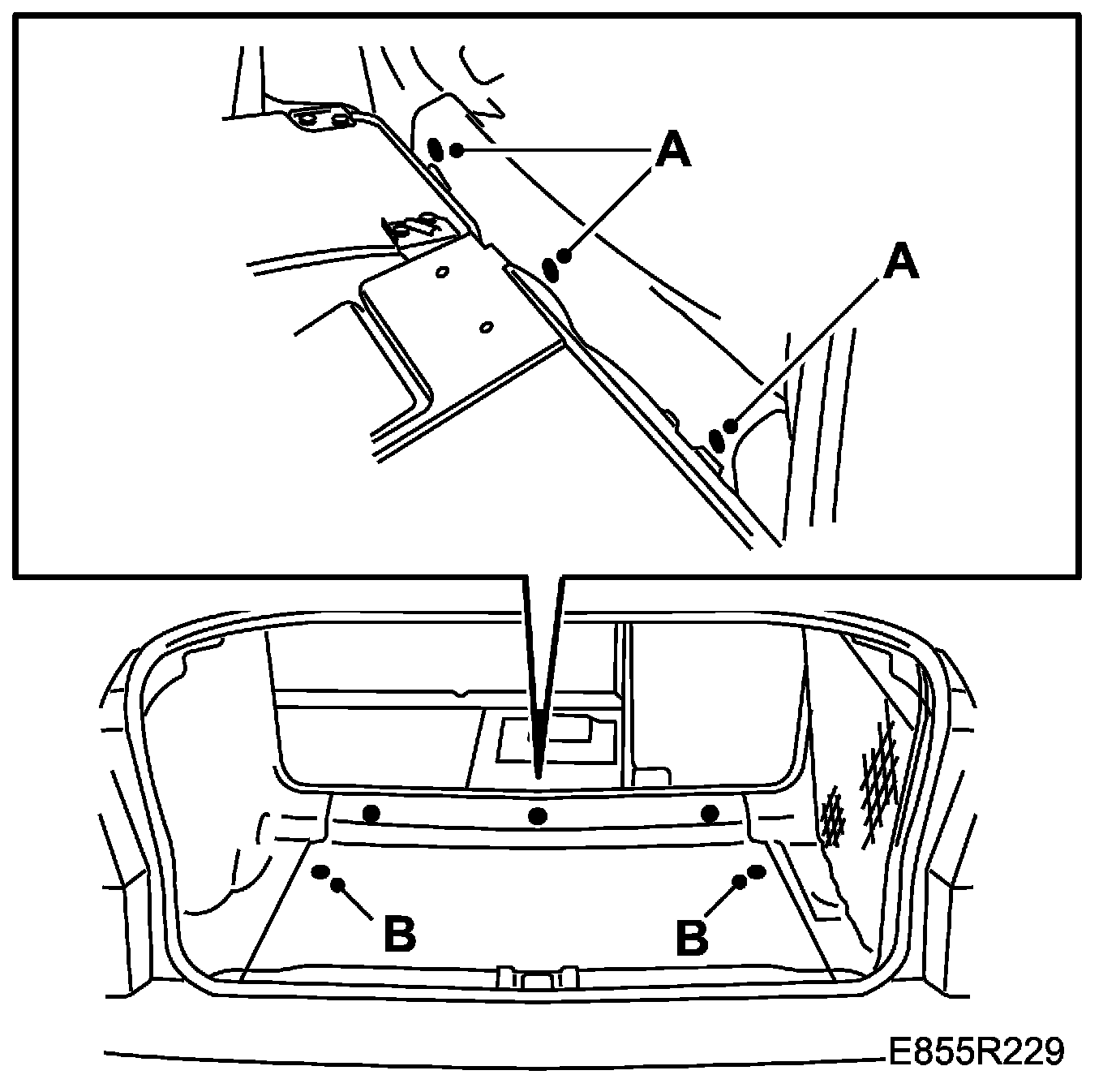

2. Undo 2 screws (B) that secure the floor panel trim to the floor.
3. Undo the clips (A) that hold the floor panel at the front edge, x 6.

To fit

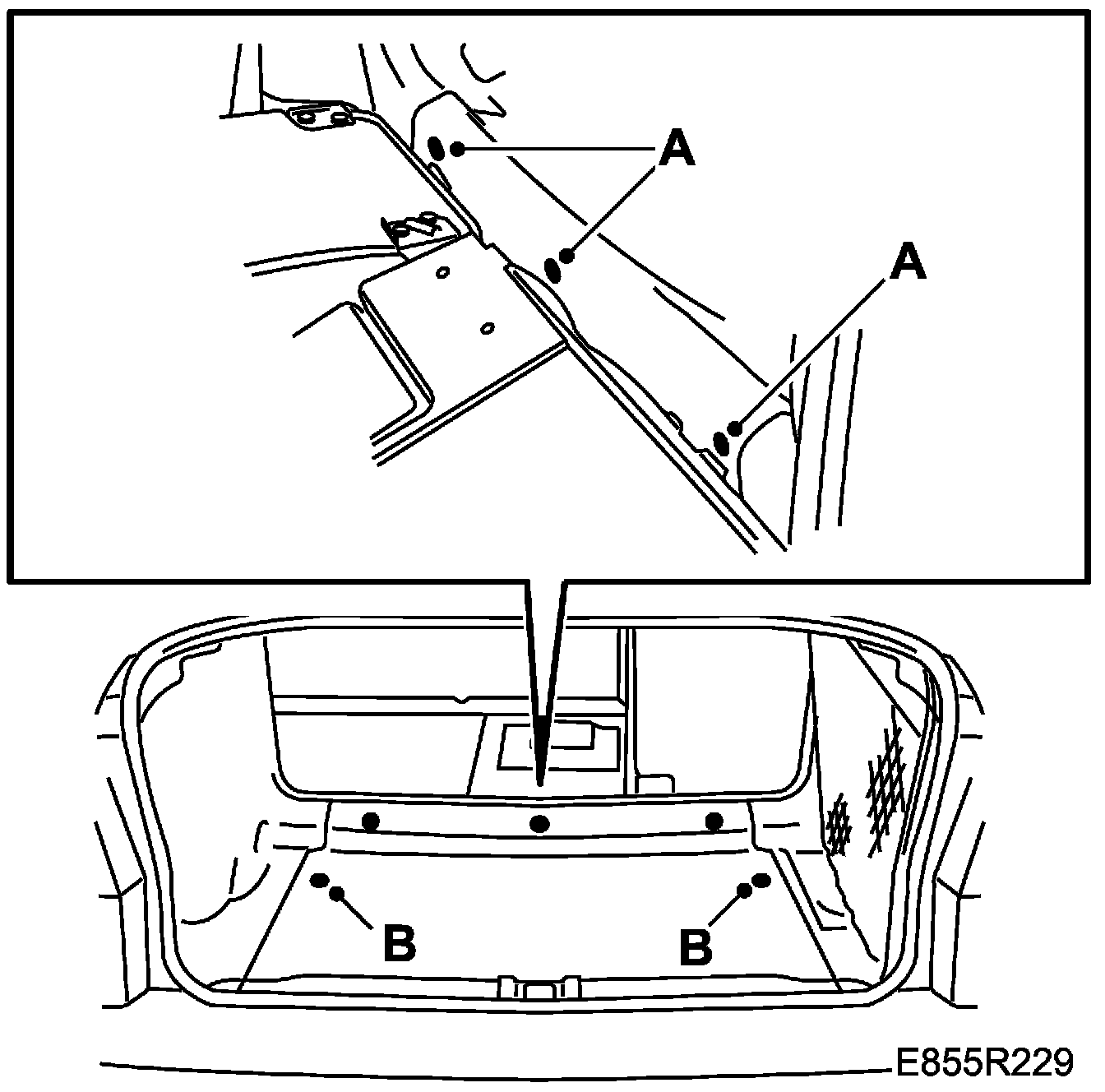

1. Fit the clips (A) that hold the floor panel at the front edge, x 6.
2. Screw in 2 screws (B) that secure the floor panel trim to the floor.
3. Raise the rear seat backrest.
