Rear Shelf: Service and Repair

Parcel Shelf Trim, 4D

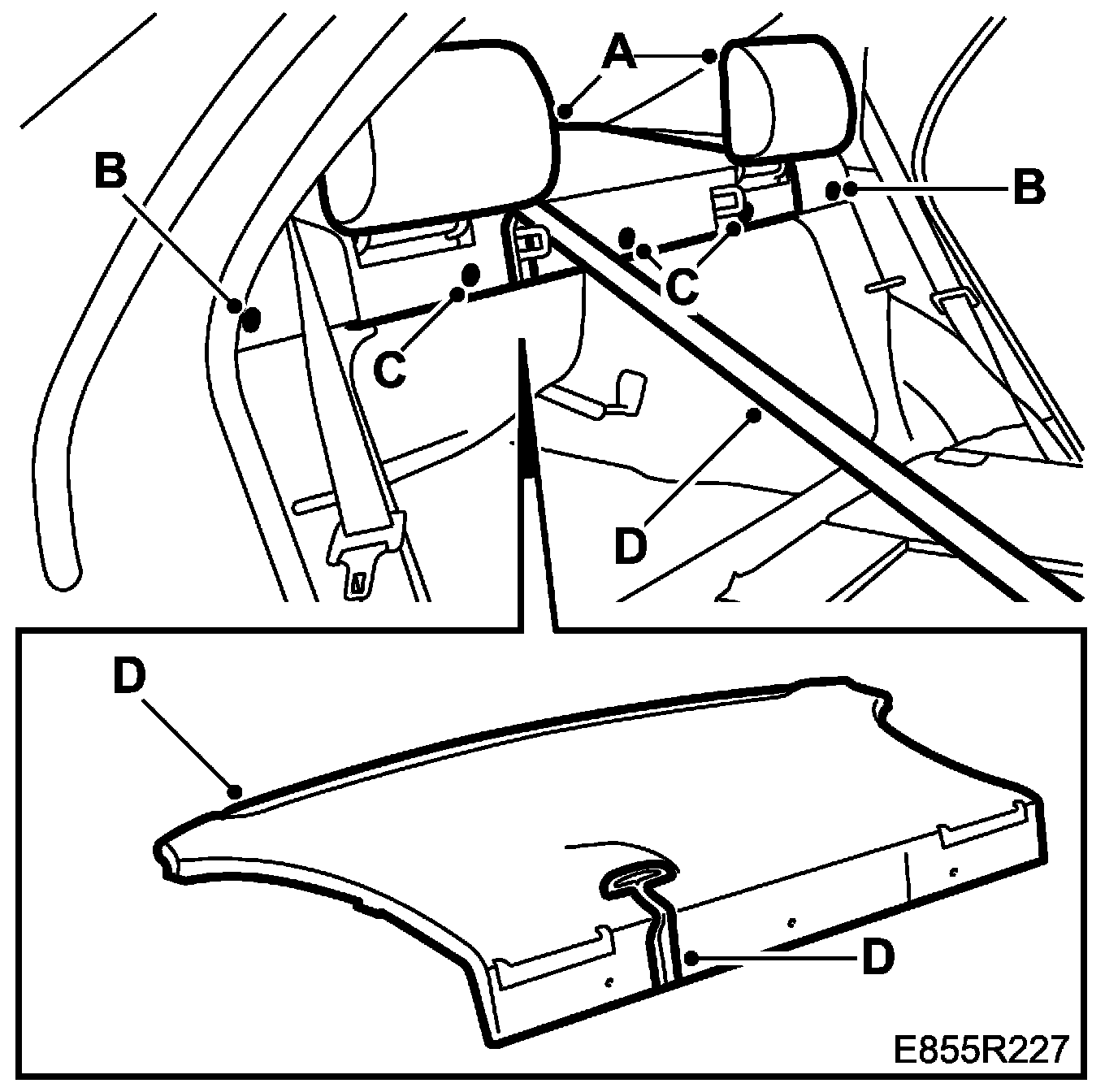

To remove







1. Lower the backrests.
2. Remove the head restraints (A) in the rear seat.
3. Remove the speaker grille (B) on both sides.
4. Remove the clips (C) in the front edge of the parcel shelf, x 3.
5. Lift out the parcel shelf trim (D) and thread out the centre belt.

To fit







1. Thread the centre belt in the parcel shelf trim (D) and align the parcel shelf trim in place.
2. Fit the clips (C) in the front edge of the parcel shelf, x 3.
3. Fit the speaker grille (B) on both sides.
4. Fit the head restraints (A) for the rear seat.
5. Raise the backrests.
