Ashtray



Ashtray

To remove

1. Pull the ashtray out of the holder.

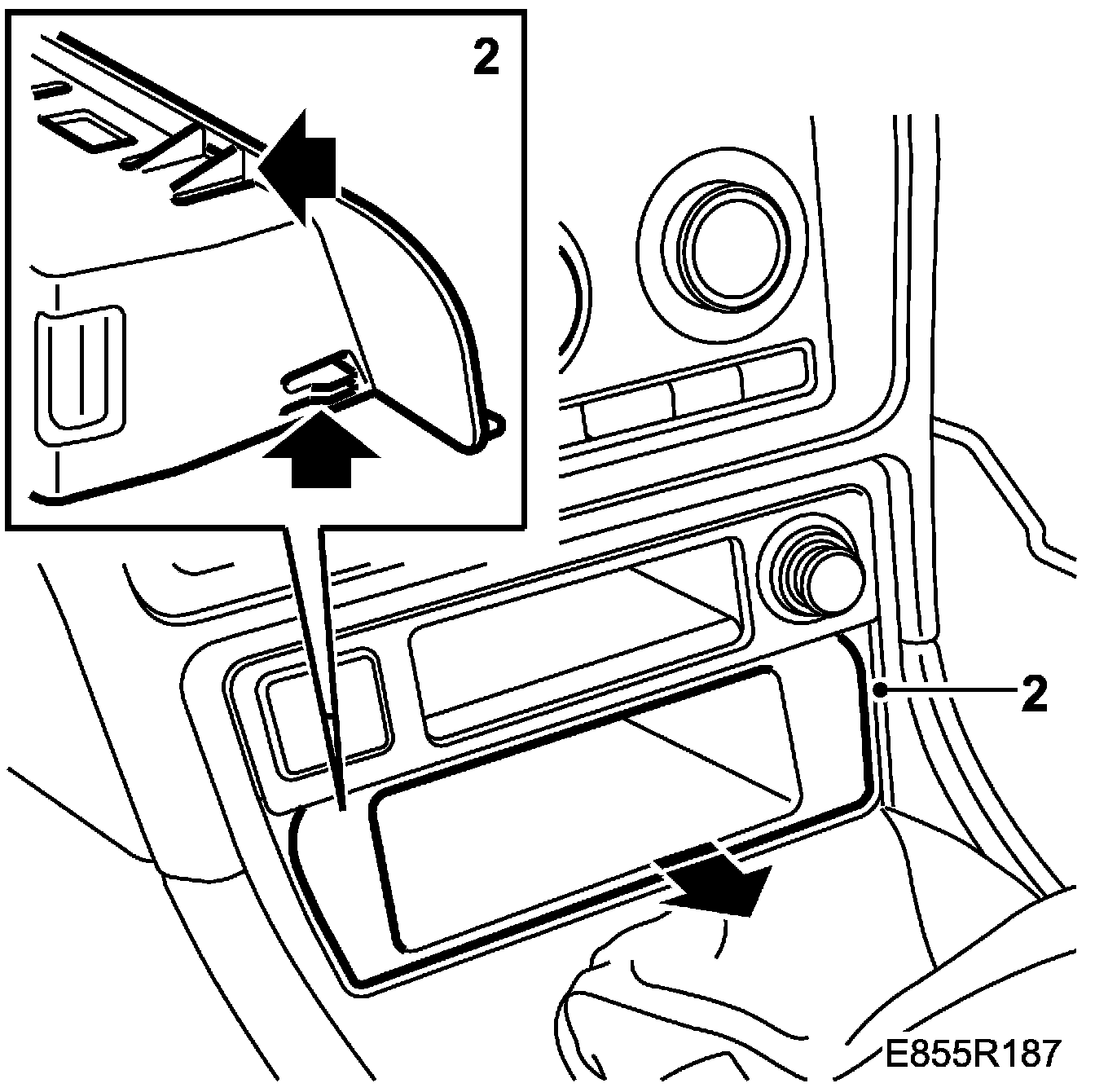

2. Withdraw the ashtray holder while carefully bending the clips aside, first the 2 lower ones and then the 2 upper ones, using a screwdriver.







To fit

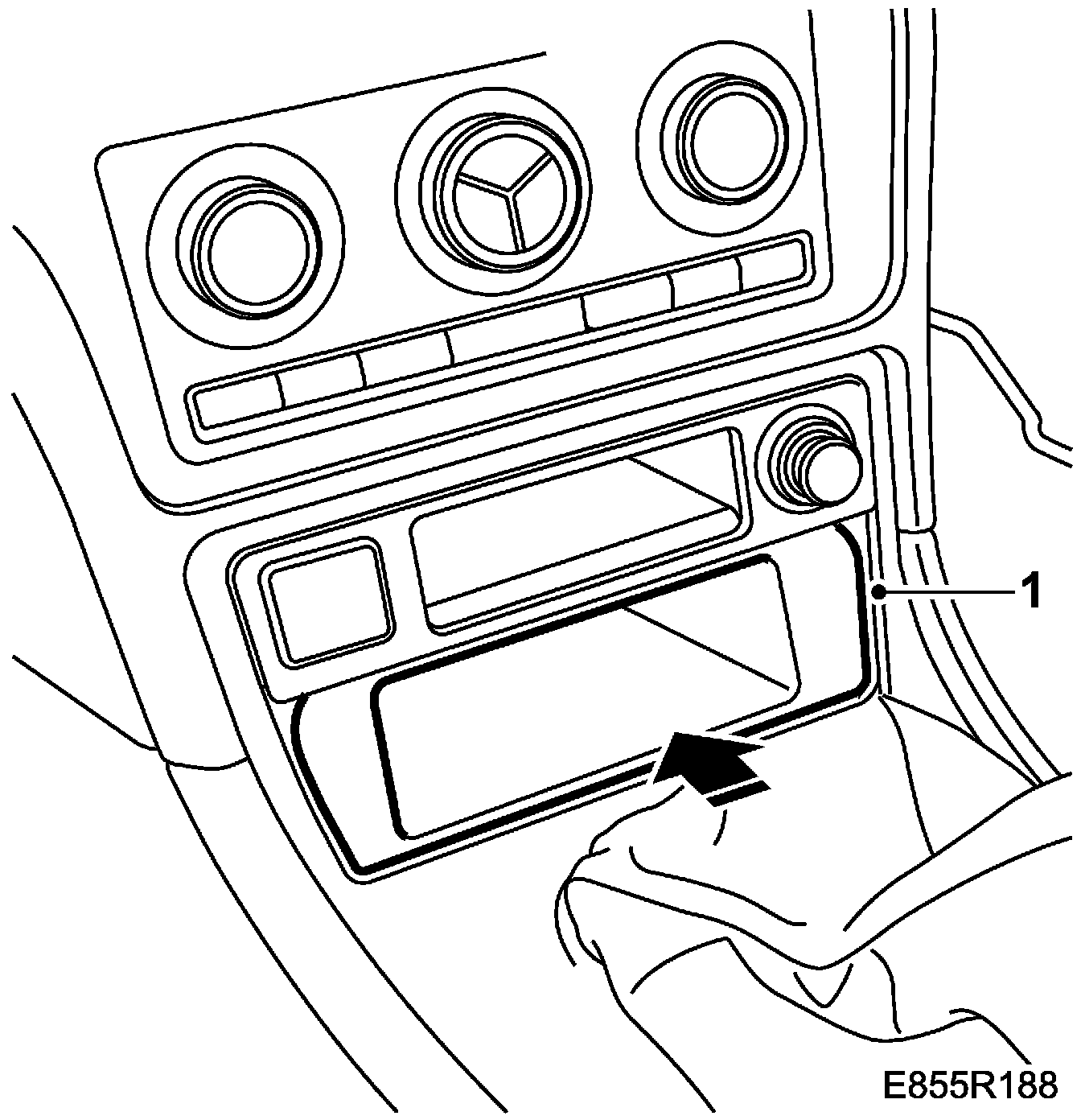

1. Press the ashtray holder into place.







2. Press the ashtray into place.
