Lower Outer Grille

Lower Outer Grille

Removing

1. Raise the car.

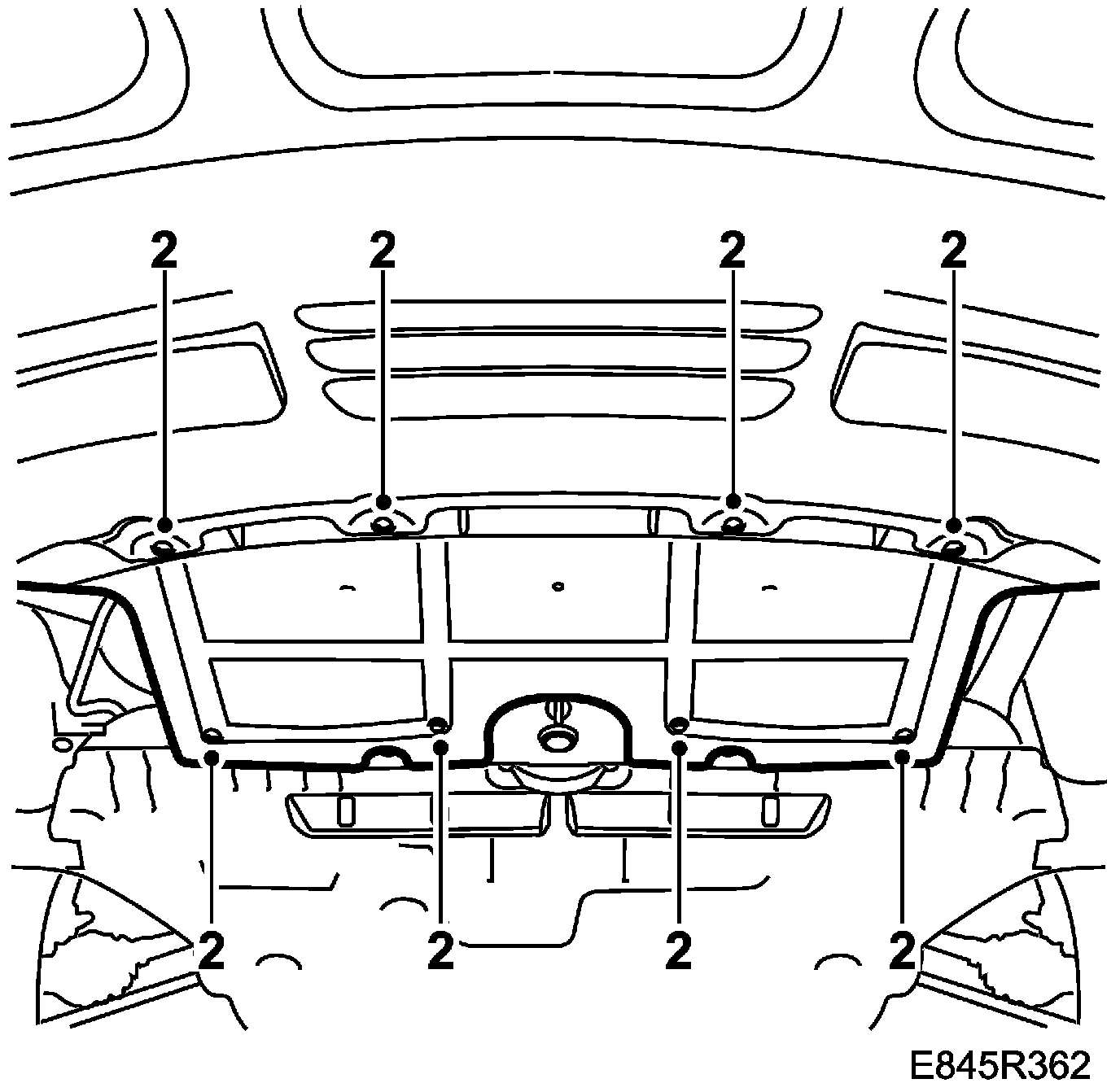

2. Remove the spoiler shield.

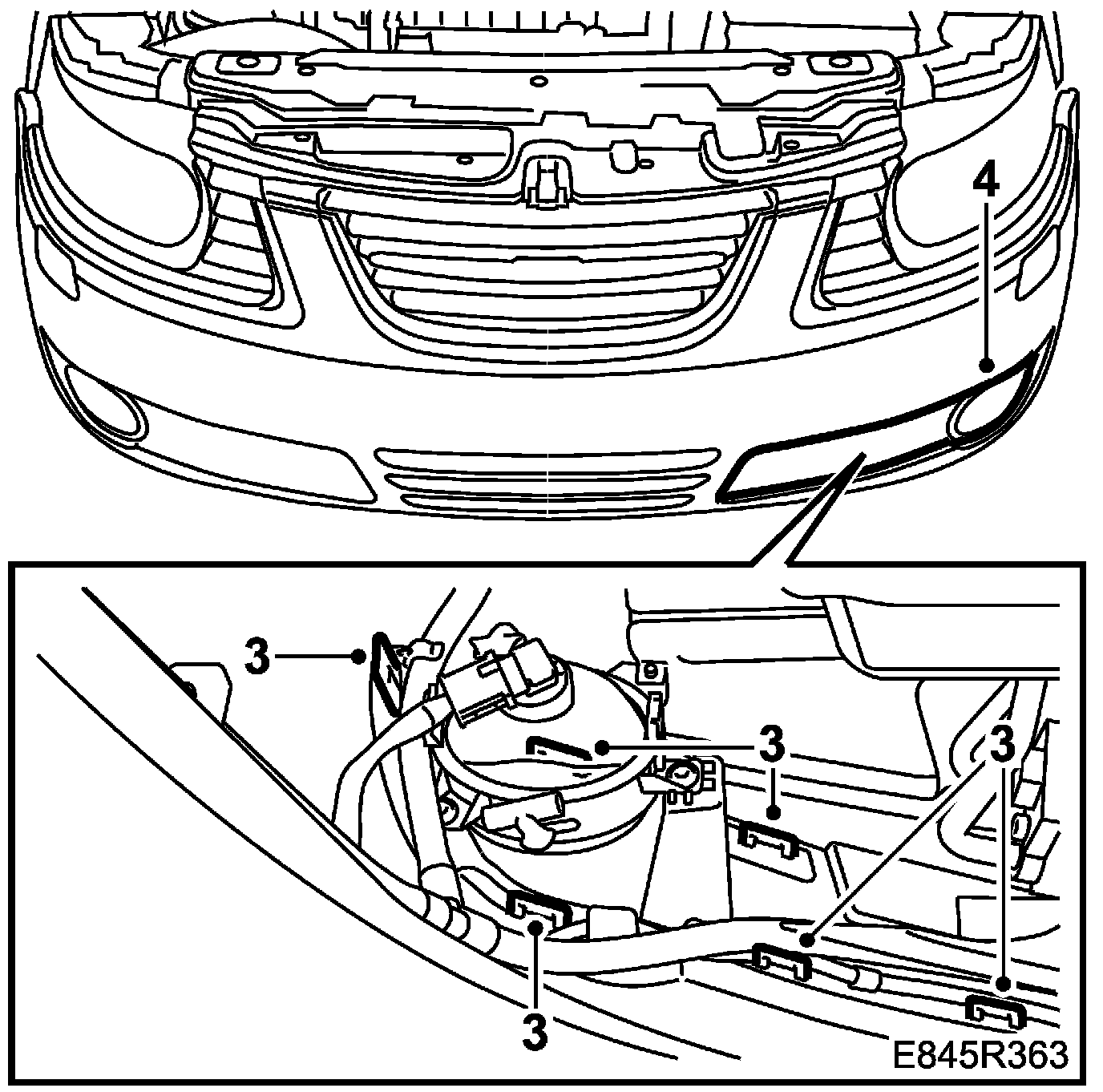

3. Remove the grille by pressing in the catches on the grille.







4. Carefully press out the grille.

Fitting

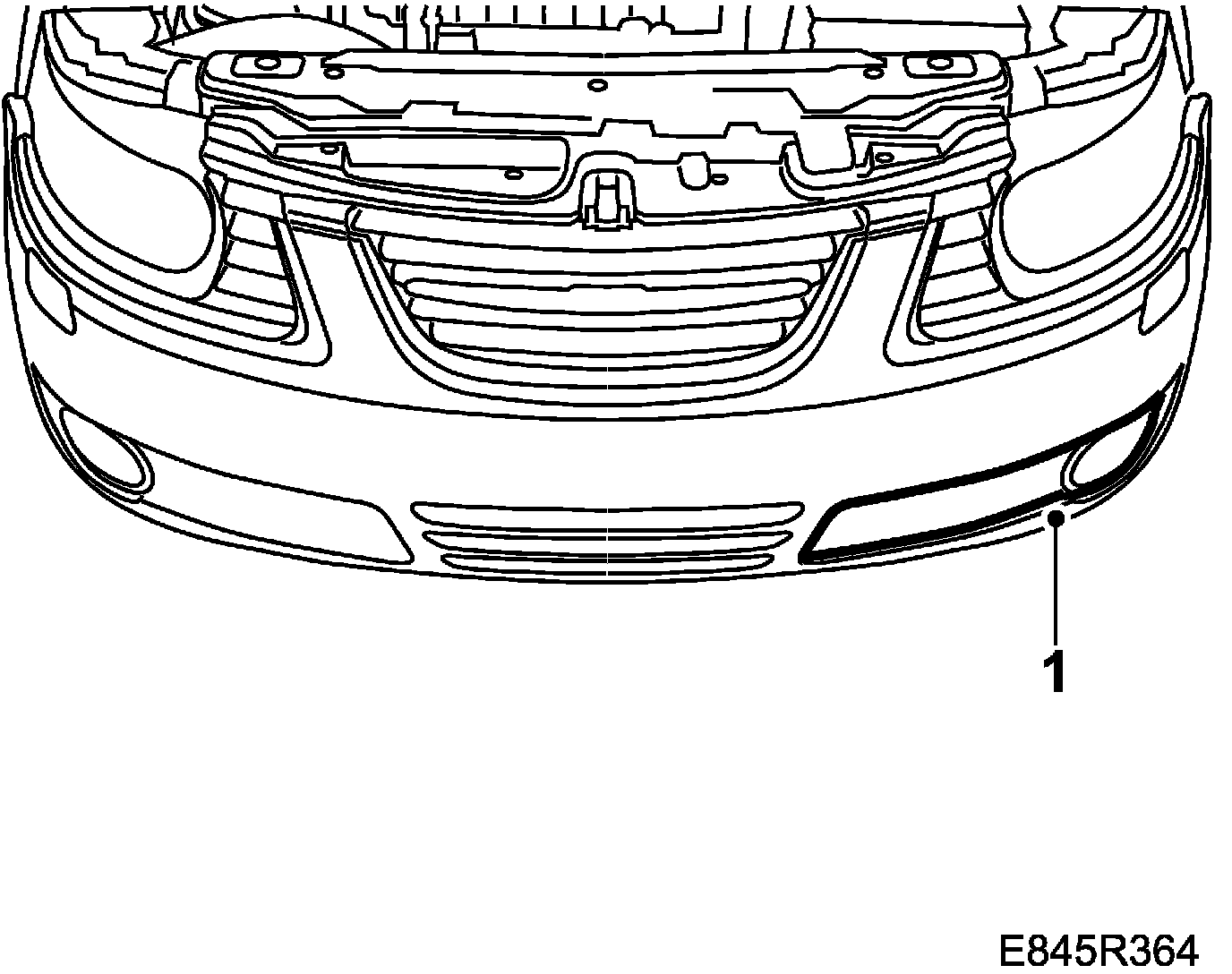

1. Press the grille back into place. Make sure that the catches engage.

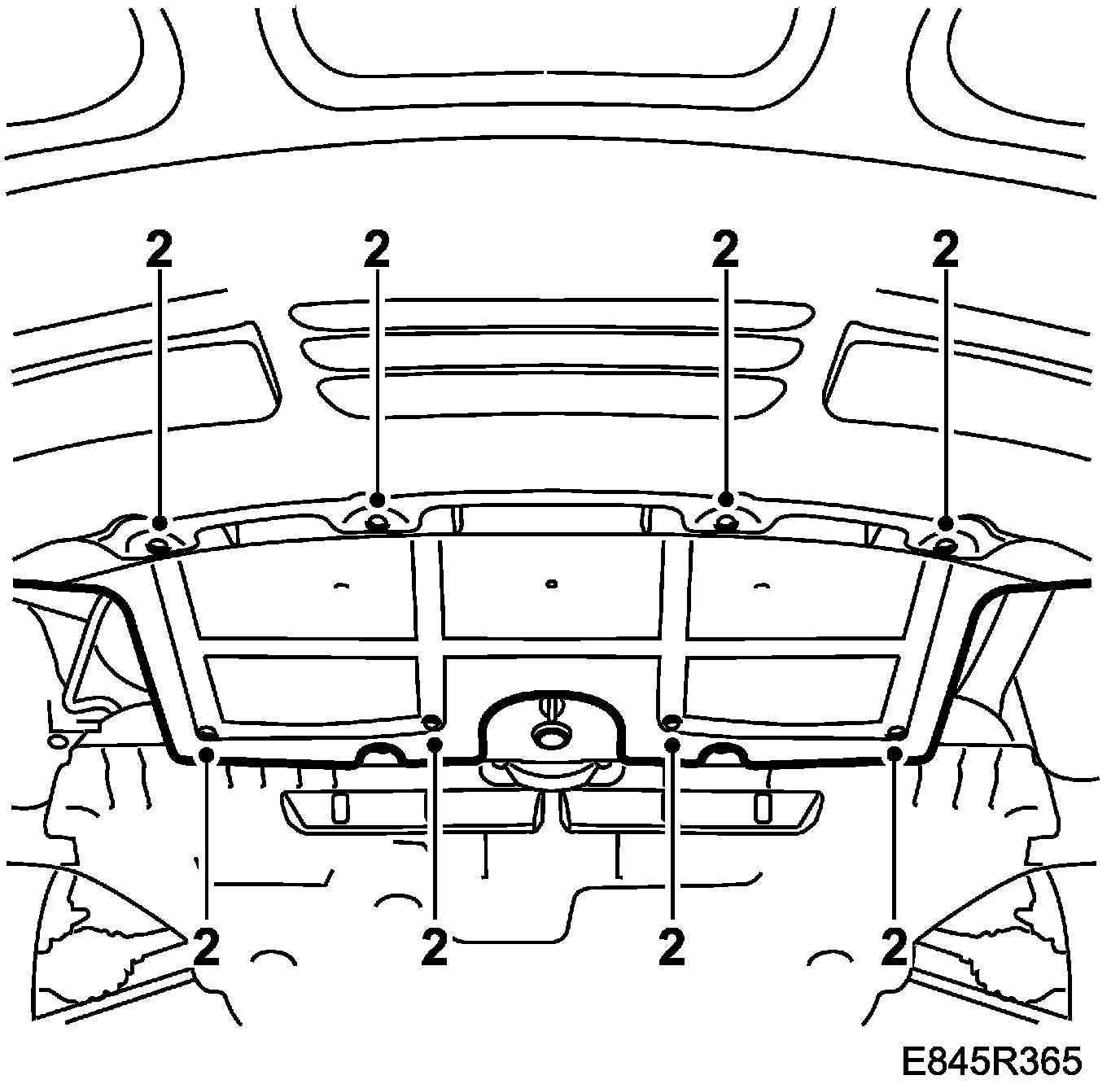

2. Fit the spoiler shield.







3. Lower the car to the floor.
