Centre Grille

Centre Grille

To remove

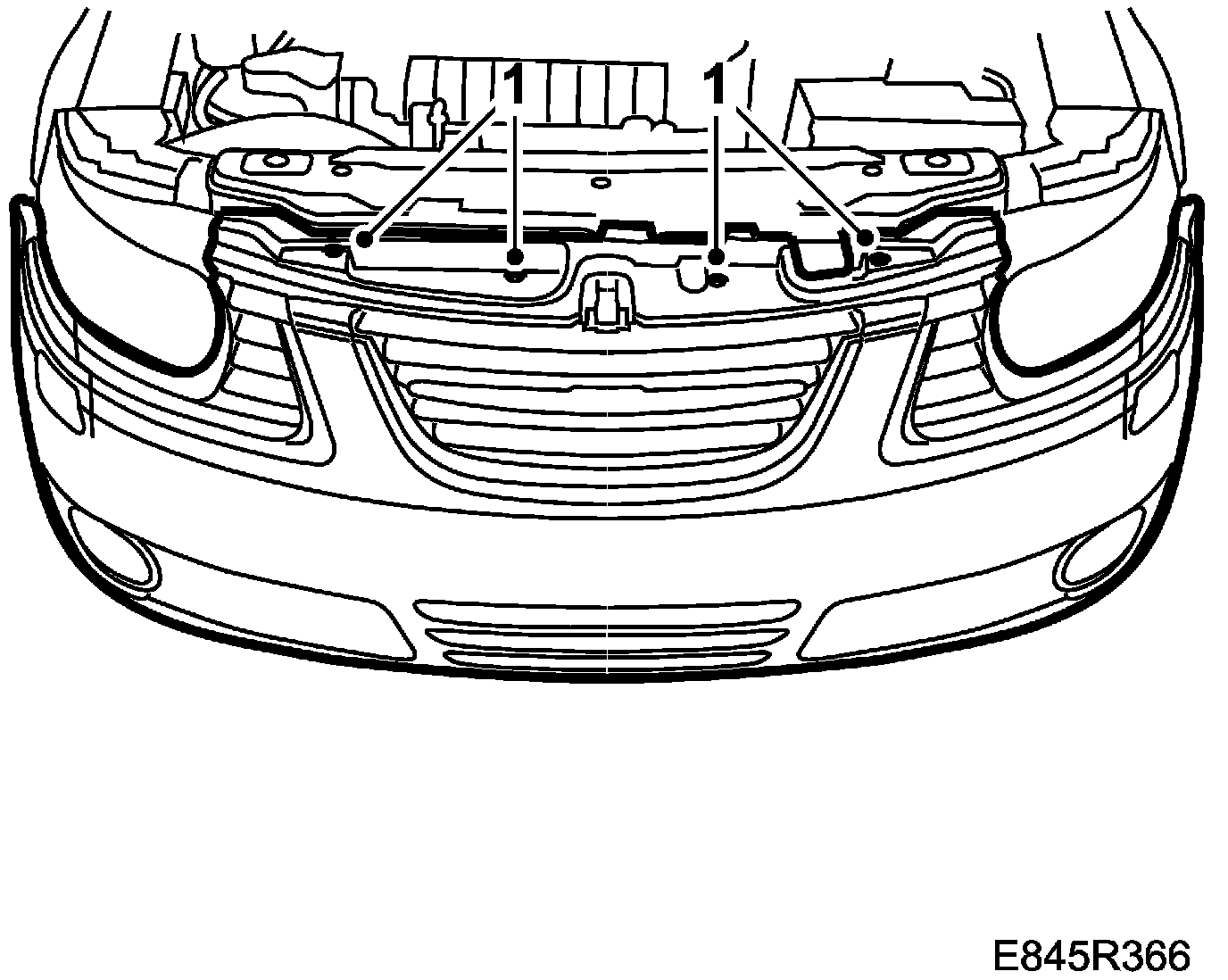

1. Remove the upper plastic clips.

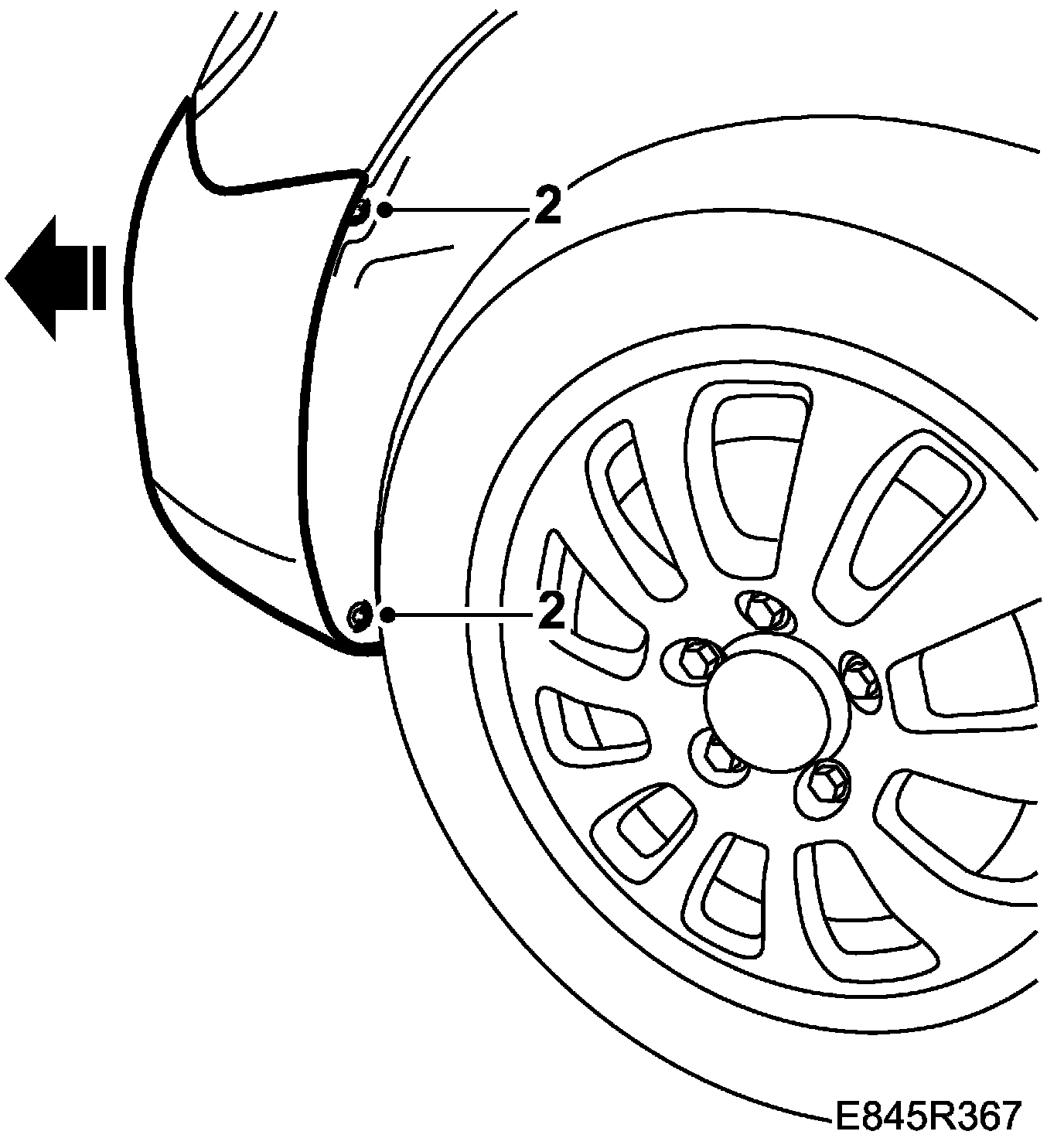

2. Remove the screws from the wing liners.

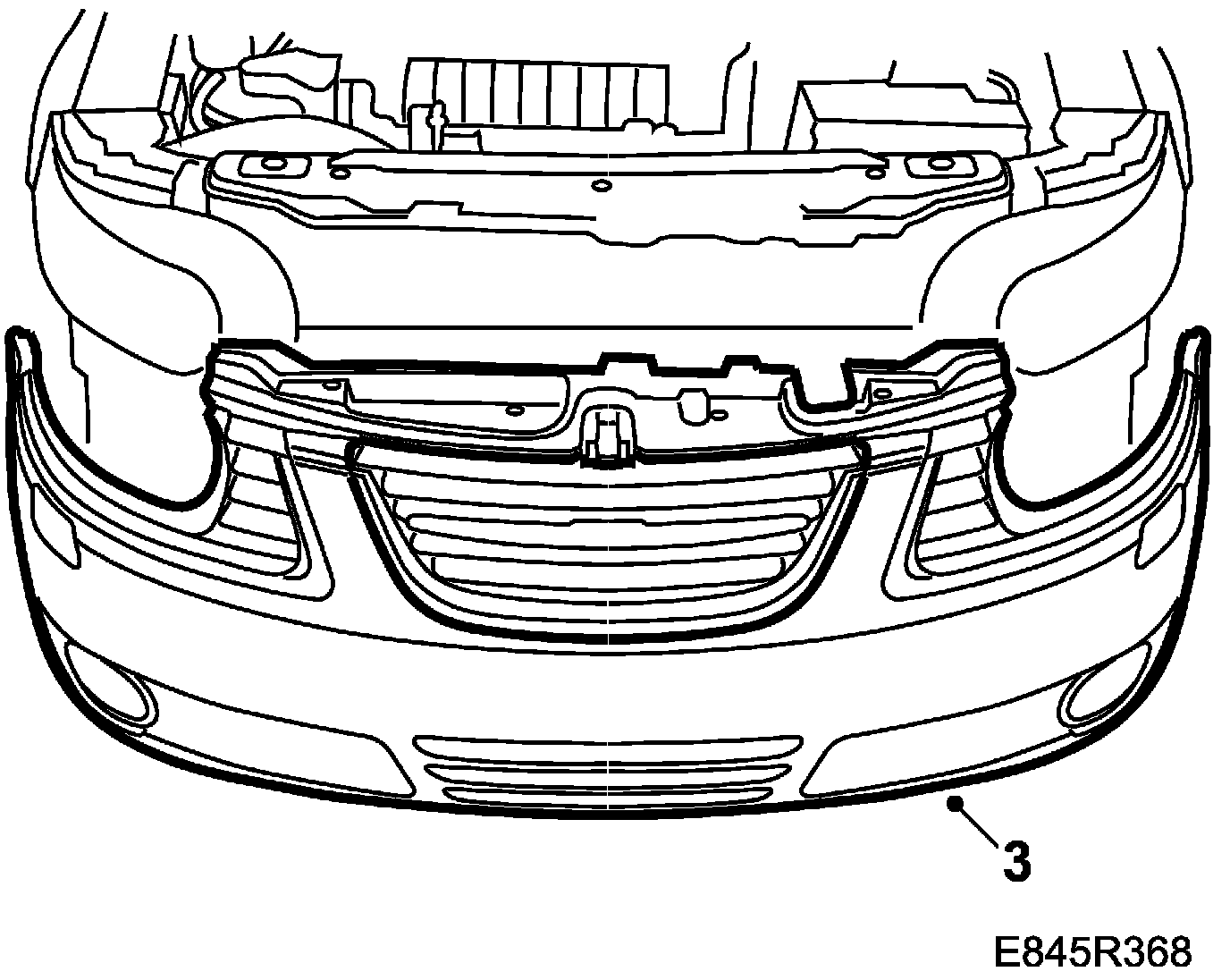

3. Detach the bumper shell by releasing the hooks with a screwdriver. Move the shell forward and place a support underneath it so it does not get damaged.

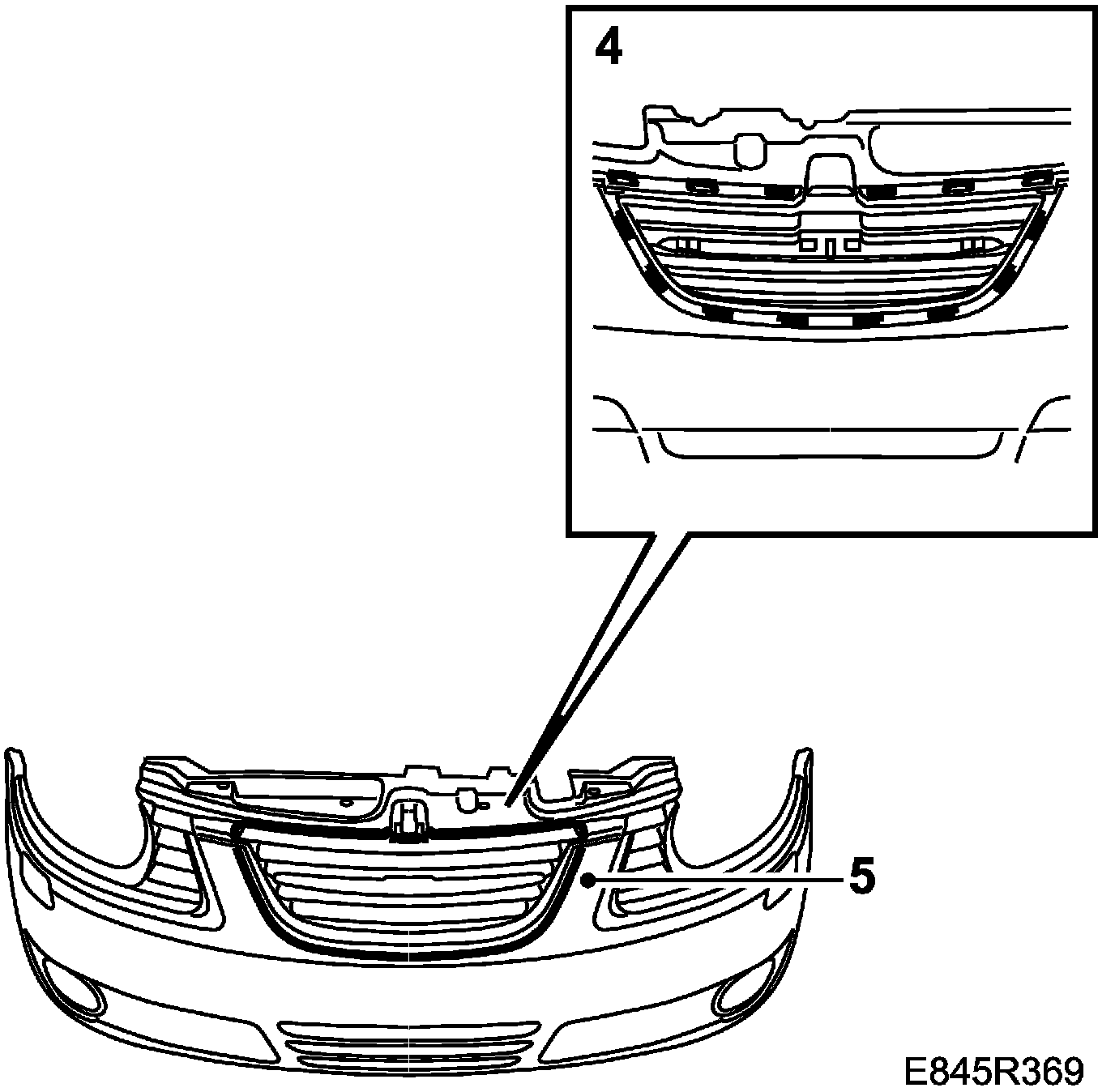

4. Release the grille catches.







5. Press out the grille.

To fit

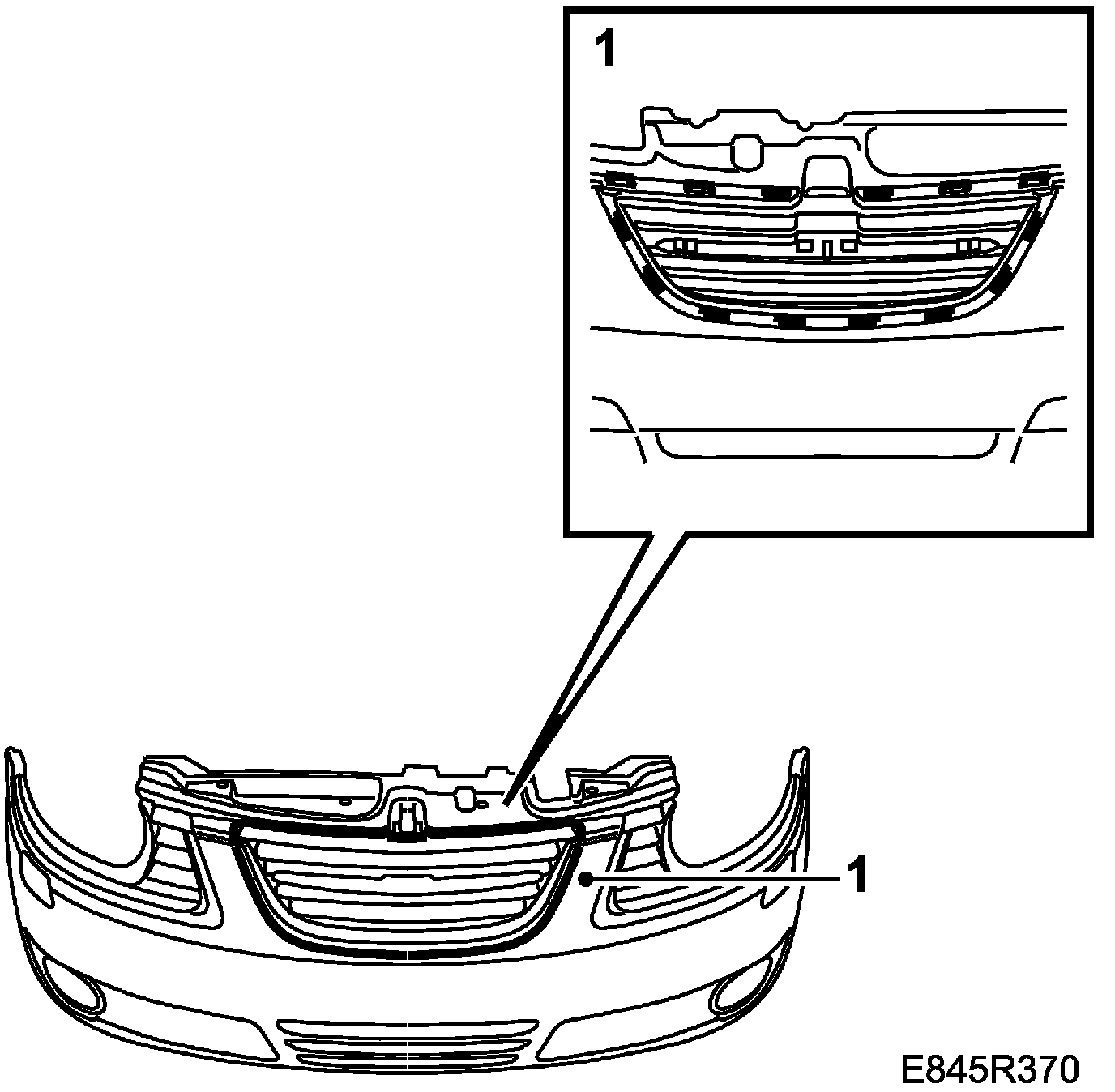

1. Fit the grille, making sure all catches engage.







2. Place the bumper shell in the correct position.

NOTE: Make sure that the connector is properly mounted in the holder.

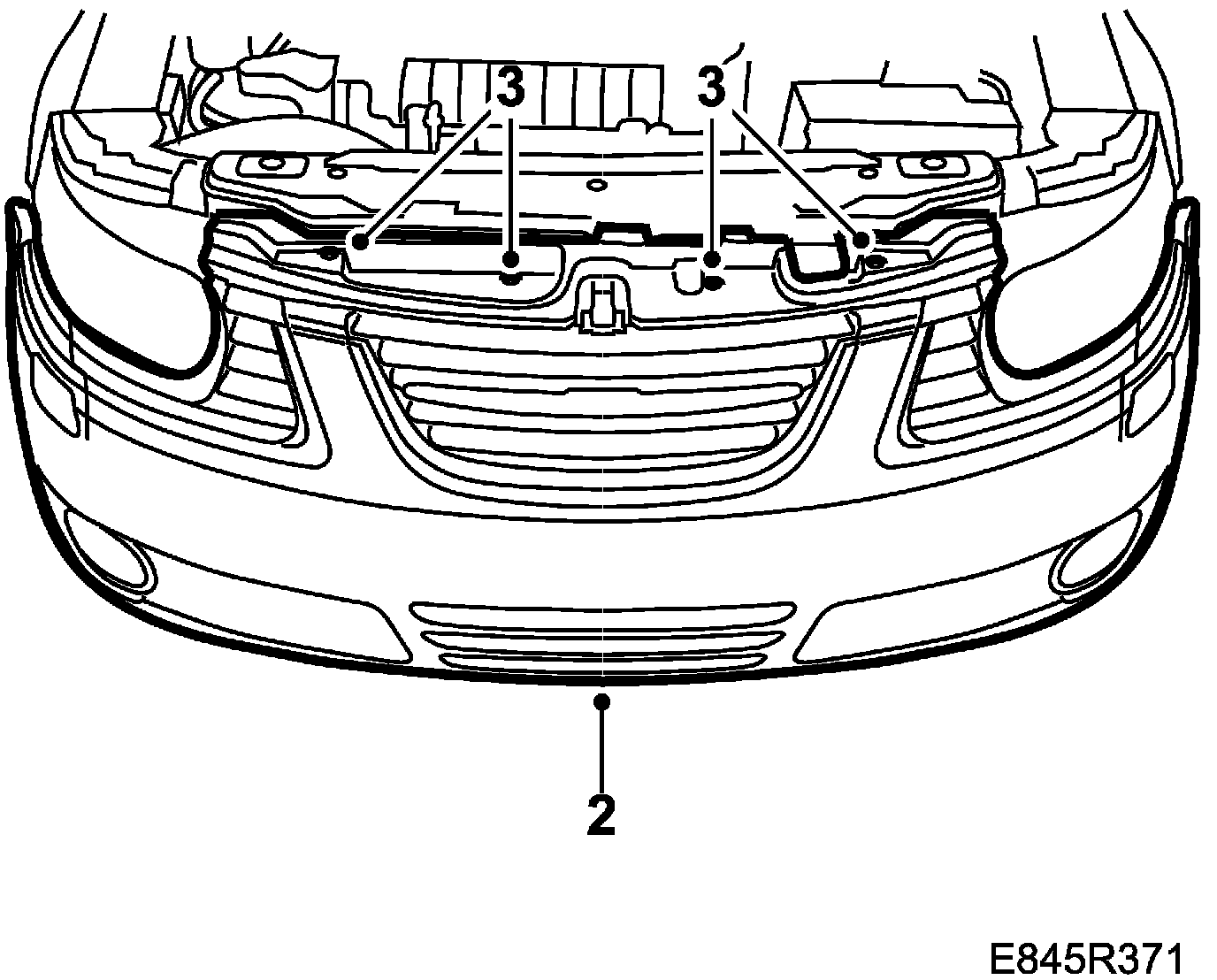

3. Fit the upper plastic clips.

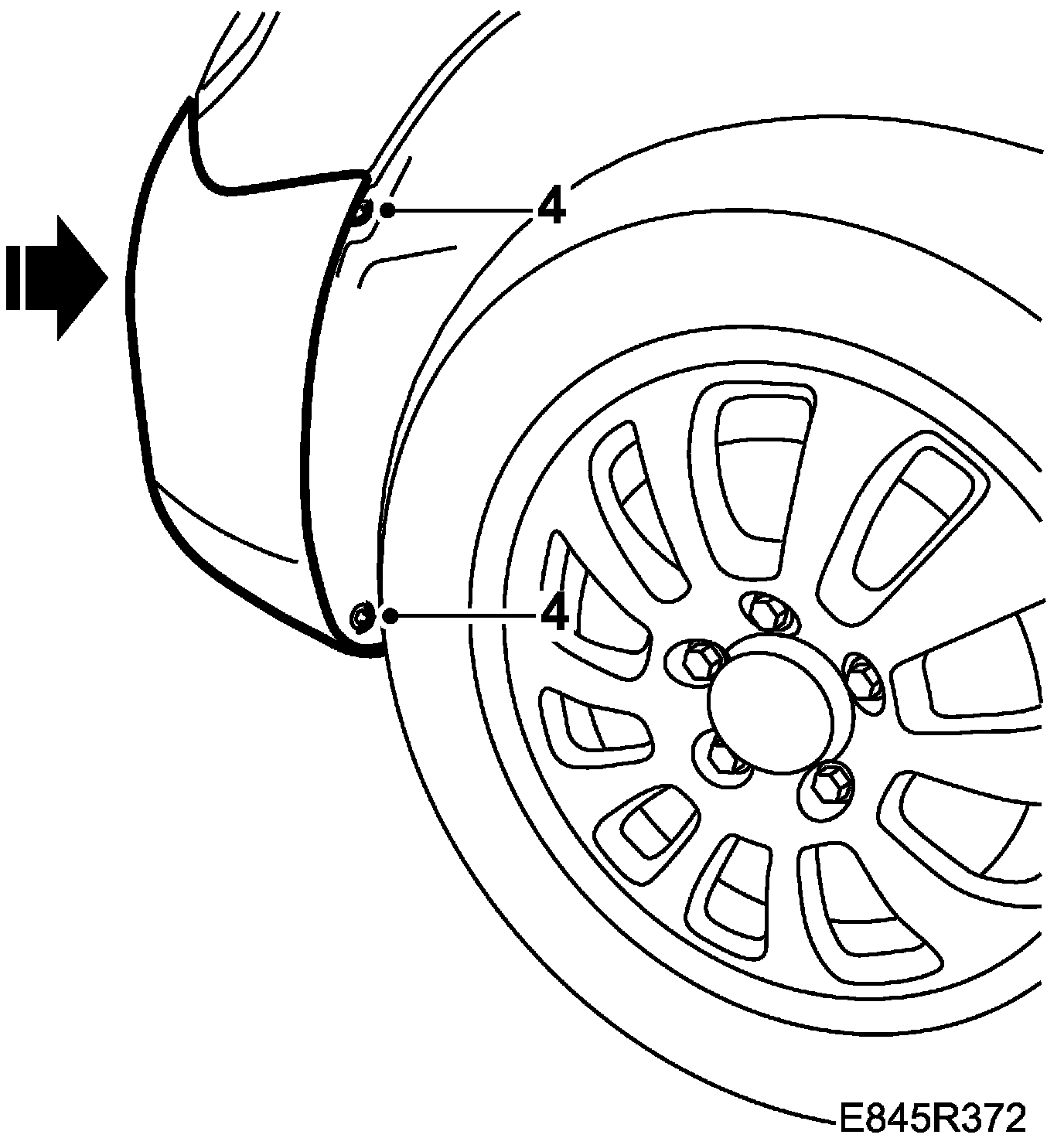

4. Fit the screws in the wing liner.
