Front Fender Liner: Service and Repair

Front Wing Liners

To remove

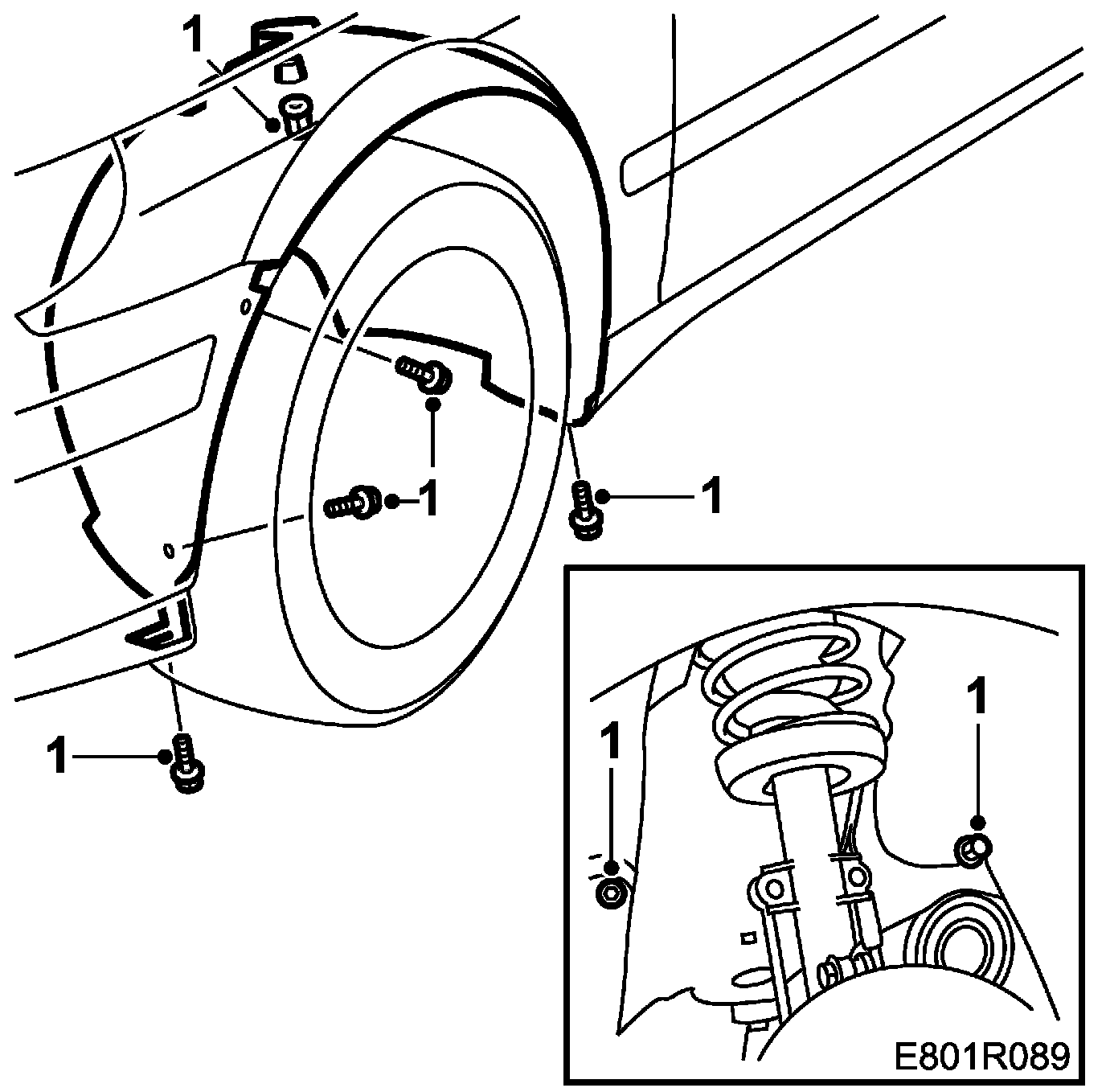

1. Remove the wing liner retaining bolts and plastic nuts.
2. Press in the wing liner so that it comes loose from the wheel arch.
3. Remove it from the wheel housing.

To fit

1. Insert the wing liner in the wheel housing.
2. Press in the wing liner so that it fastens to the edge of the wing.
3. Fit the nuts and bolts.
