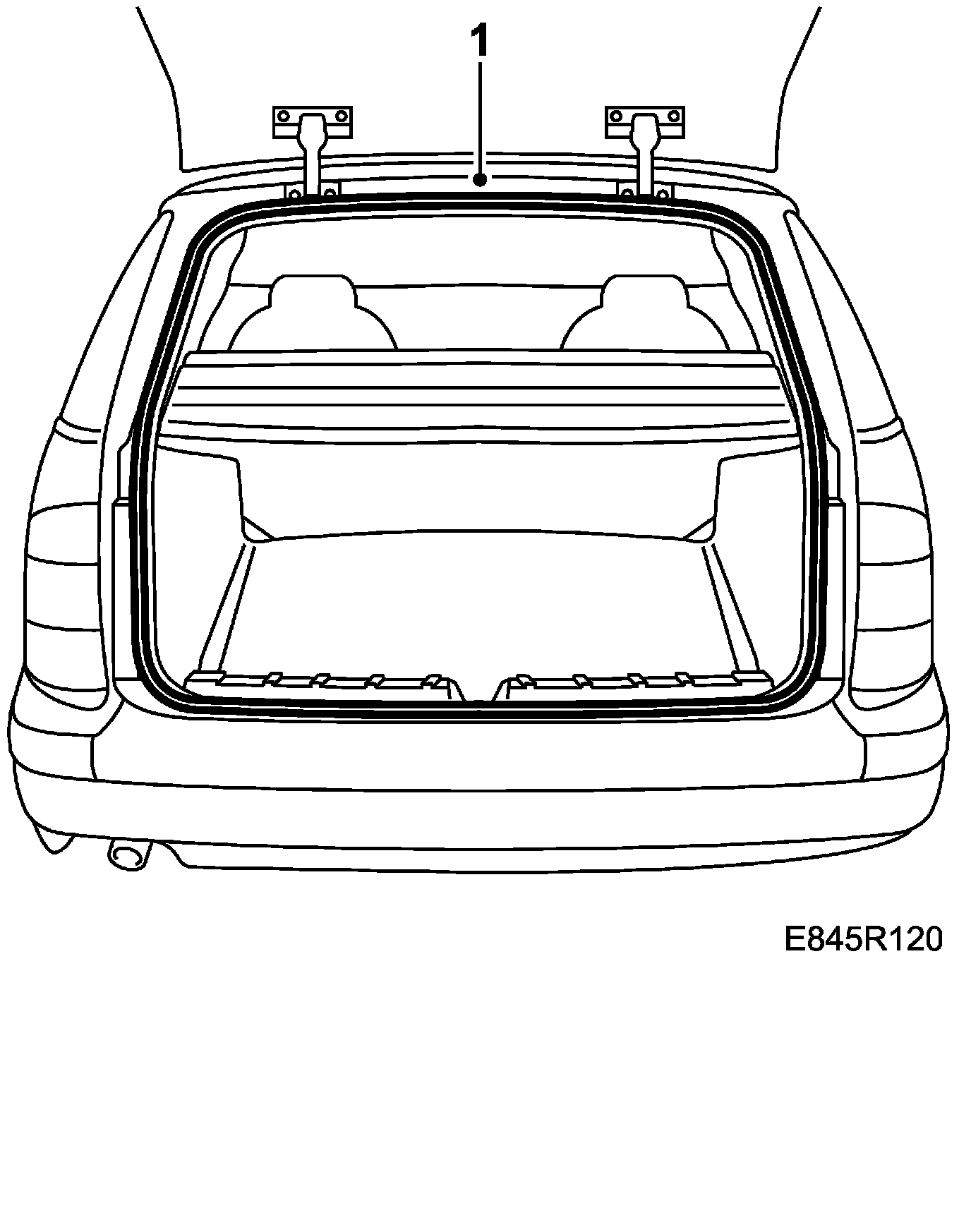

Weatherstrip, 5D Luggage Compartment Opening

Weatherstrip, 5D Luggage Compartment Opening

To remove







1. Pull the moulding away from the body.

To fit







1. Start by fitting the lower part of the moulding. Make sure that it is properly centered.
2. Press the moulding into place all round the opening.

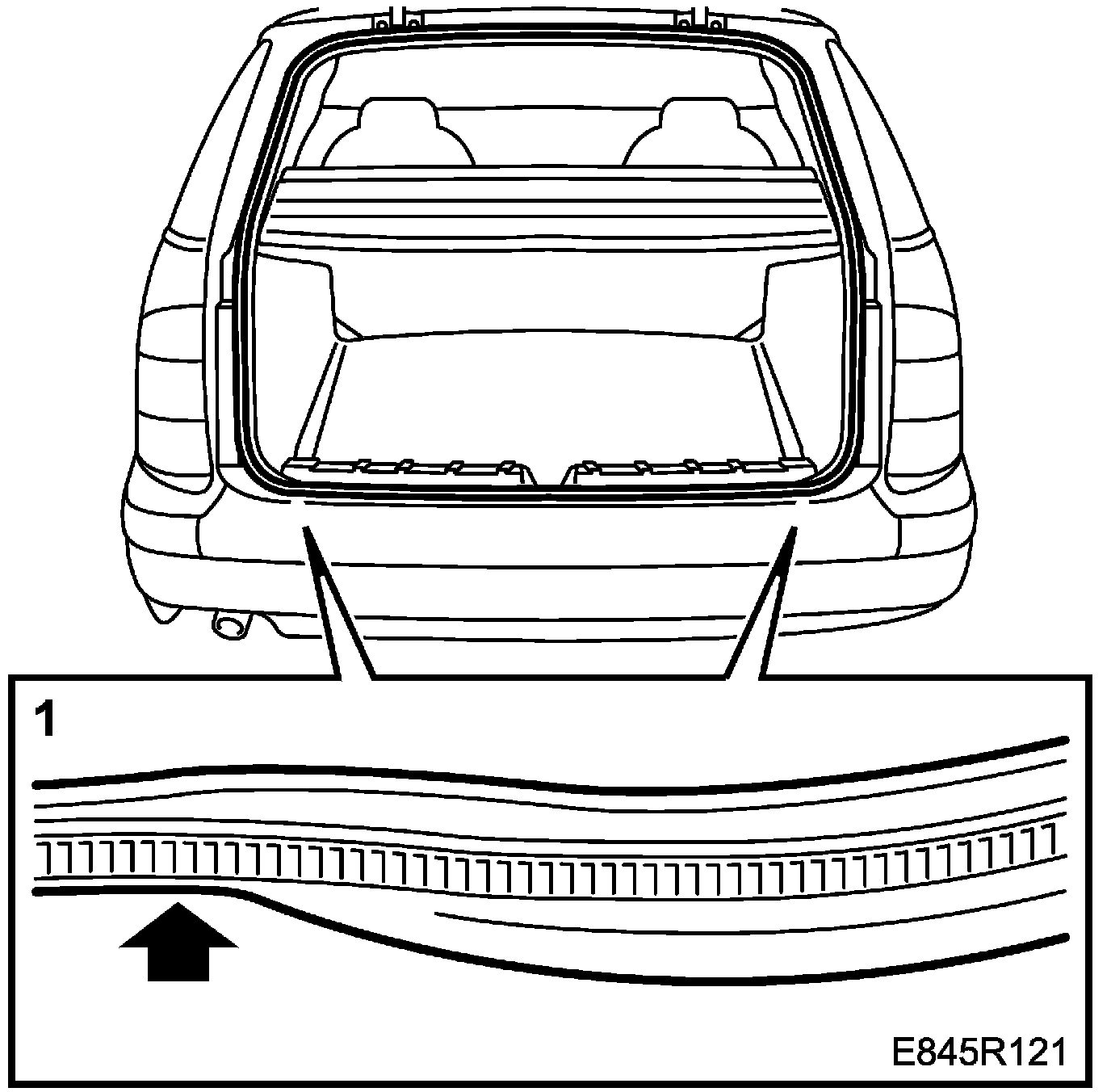

3. Check that the moulding's lower flange is on the inside of the bumper shell against the sheet metal.
