Weatherstrip Over Tailgate 5D



Weatherstrip Over Tailgate 5D

To remove







1. Open the tailgate.

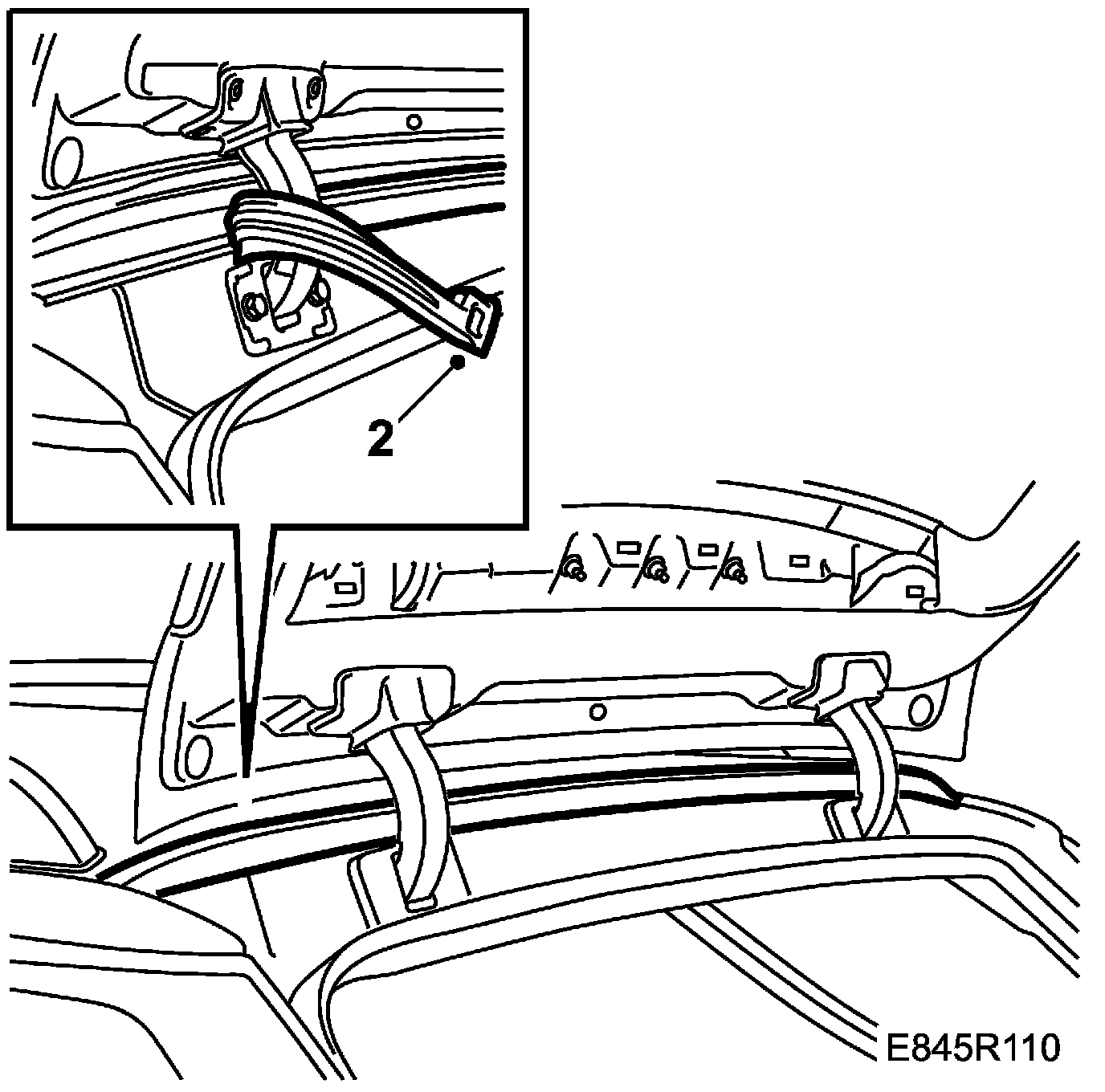

2. Pull the weatherstrip out of the C pillar channel.

To fit

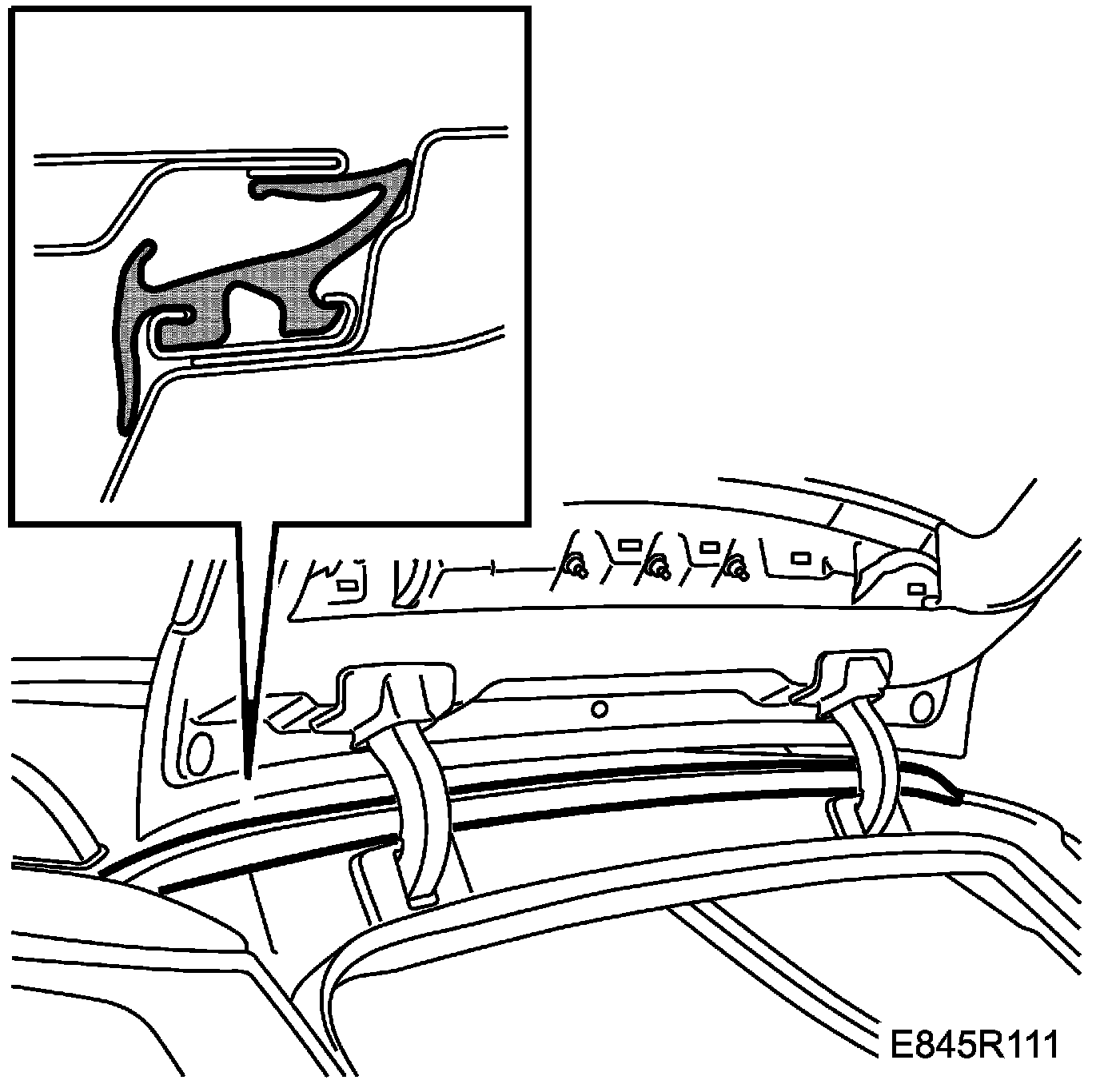

1. Press the weatherstrip down into the C pillar channel. Make sure that the flanges on the sides are correctly positioned inside the roof bar's moulding.
