Trim, Bonnet, Centre

Trim, Bonnet, Centre

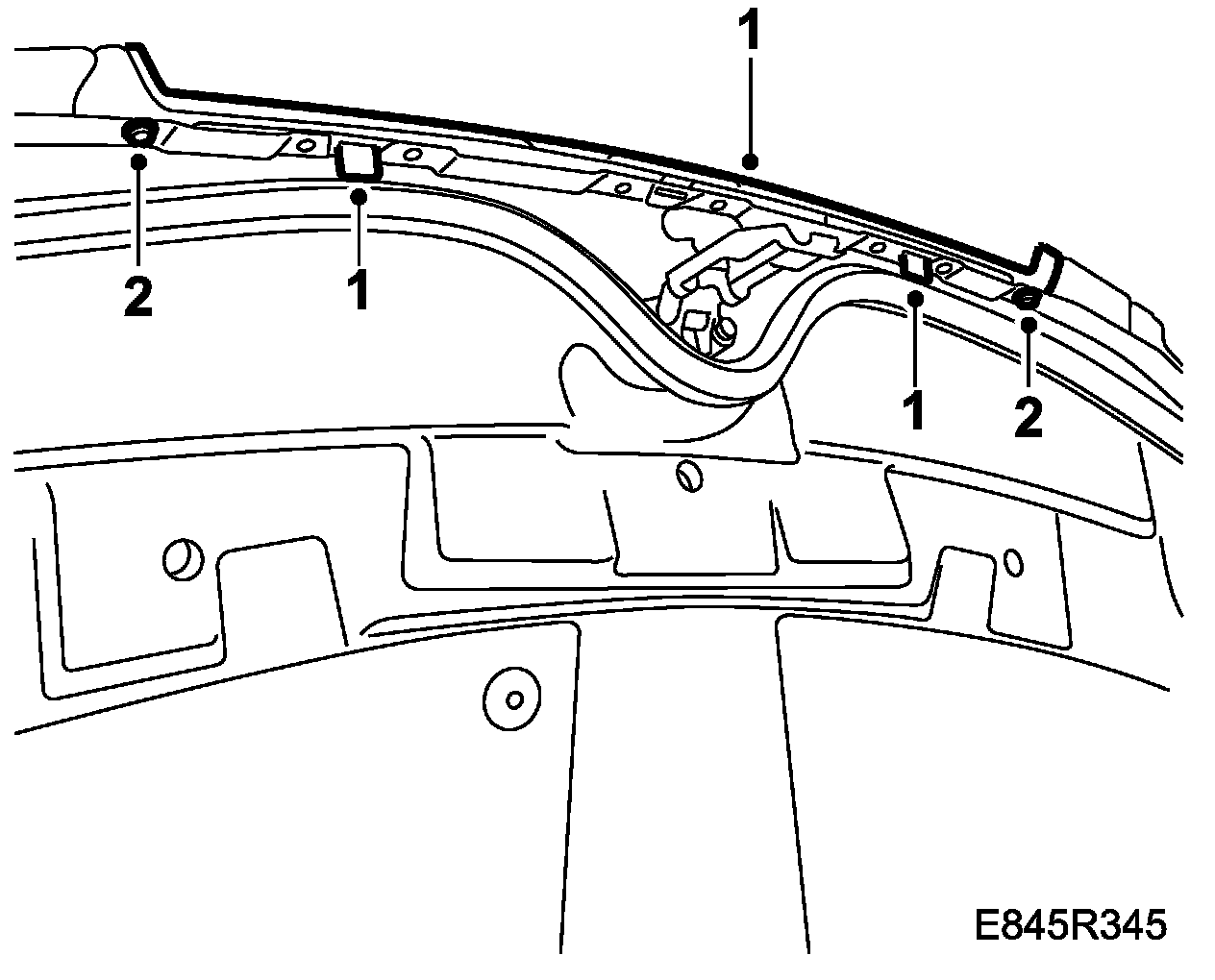

To remove

1. Open the bonnet.
2. Remove the screws.







3. Detach the trim from the clips. Use 82 93 474 Removal tool
4. Remove the trim.

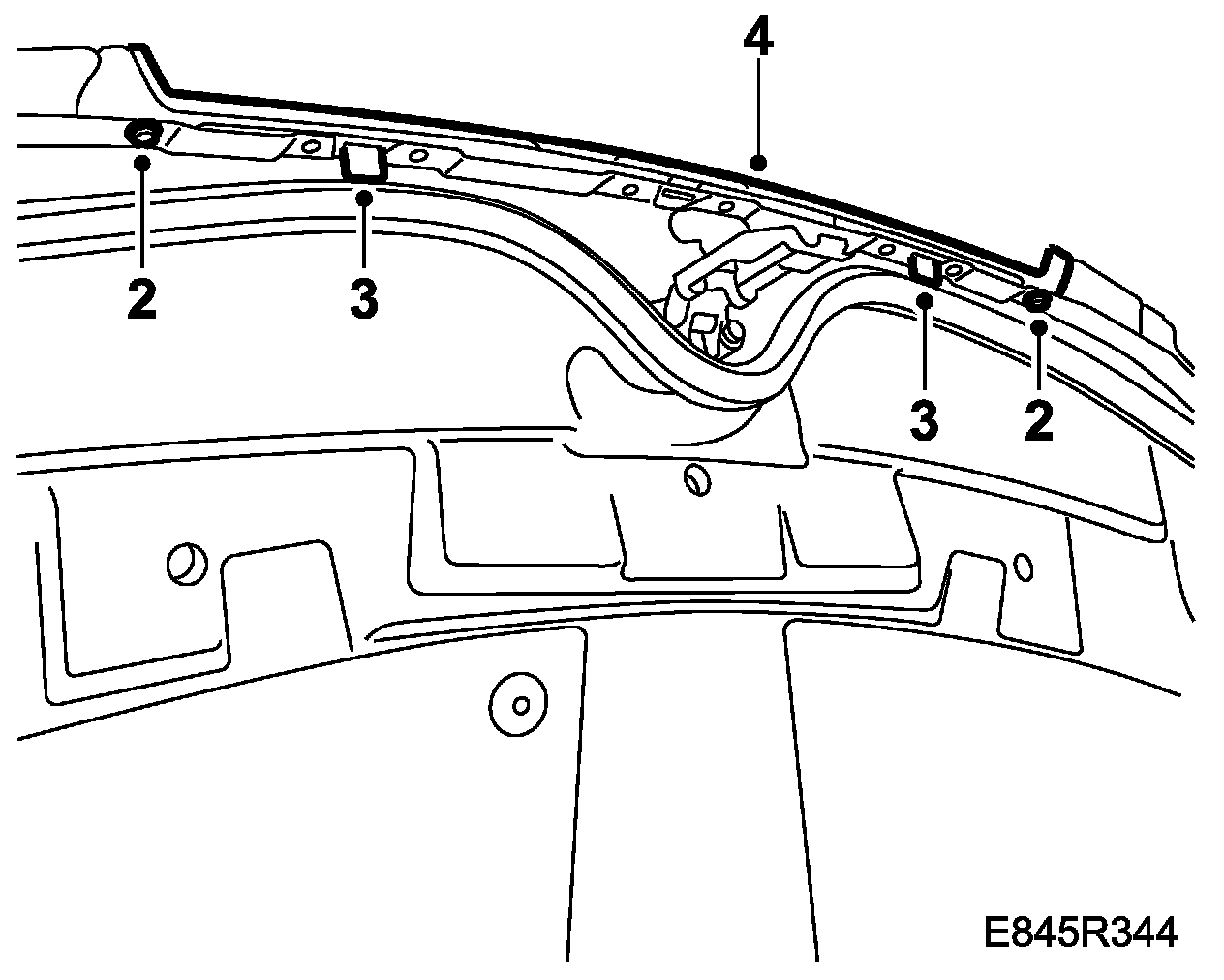

To fit

1. Fit the trim in place. Make sure that the trim engages in the clips.







2. Fit the bolts.
3. Close the bonnet.
