Boot Lid Trim, 4D

Boot Lid Trim, 4D

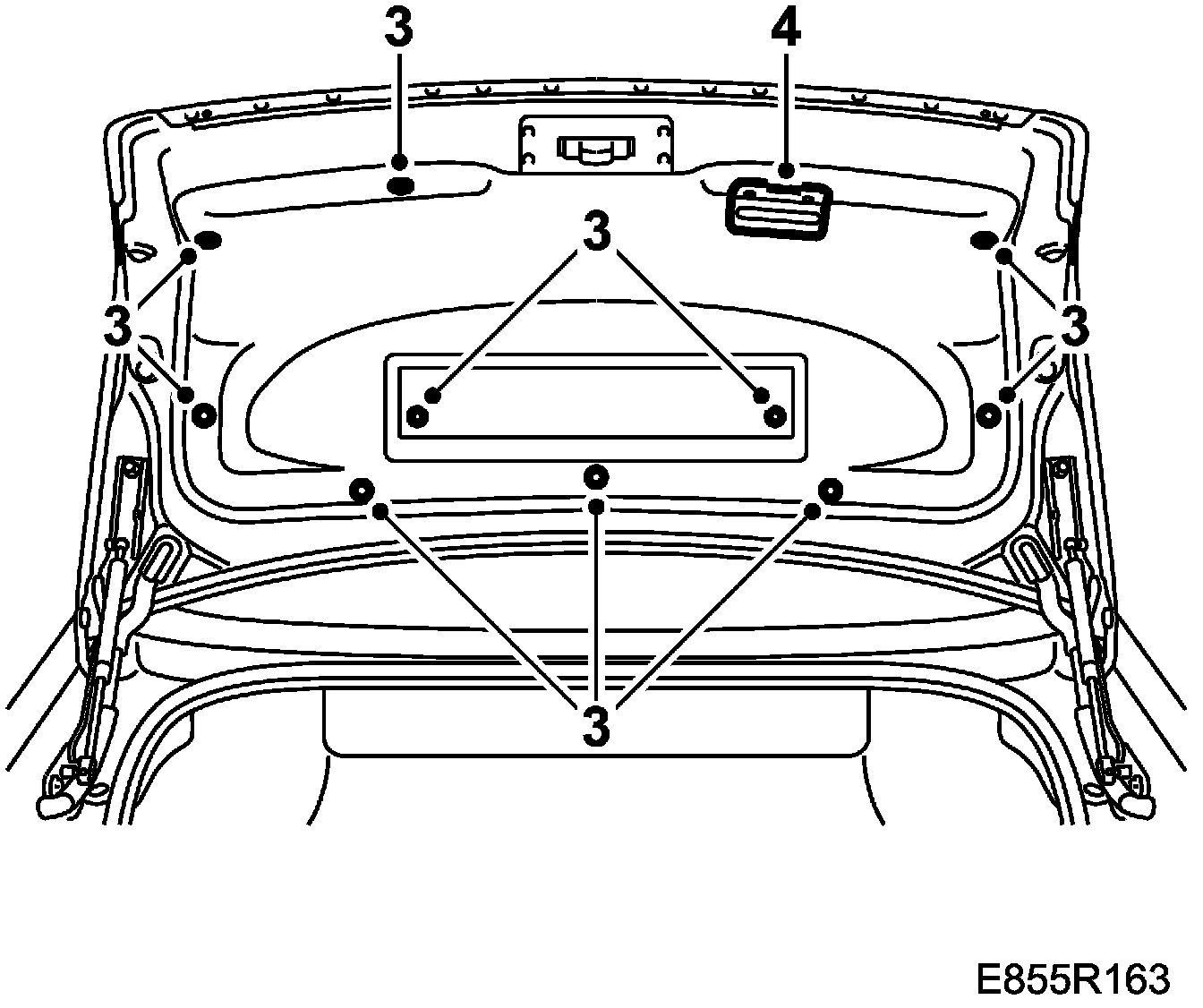

To remove

1. Remove the handle.







2. Remove the trim's clips.

US/CA cars: Insert the emergency handle through the hole in the trim.

3. Lift aside the trim.

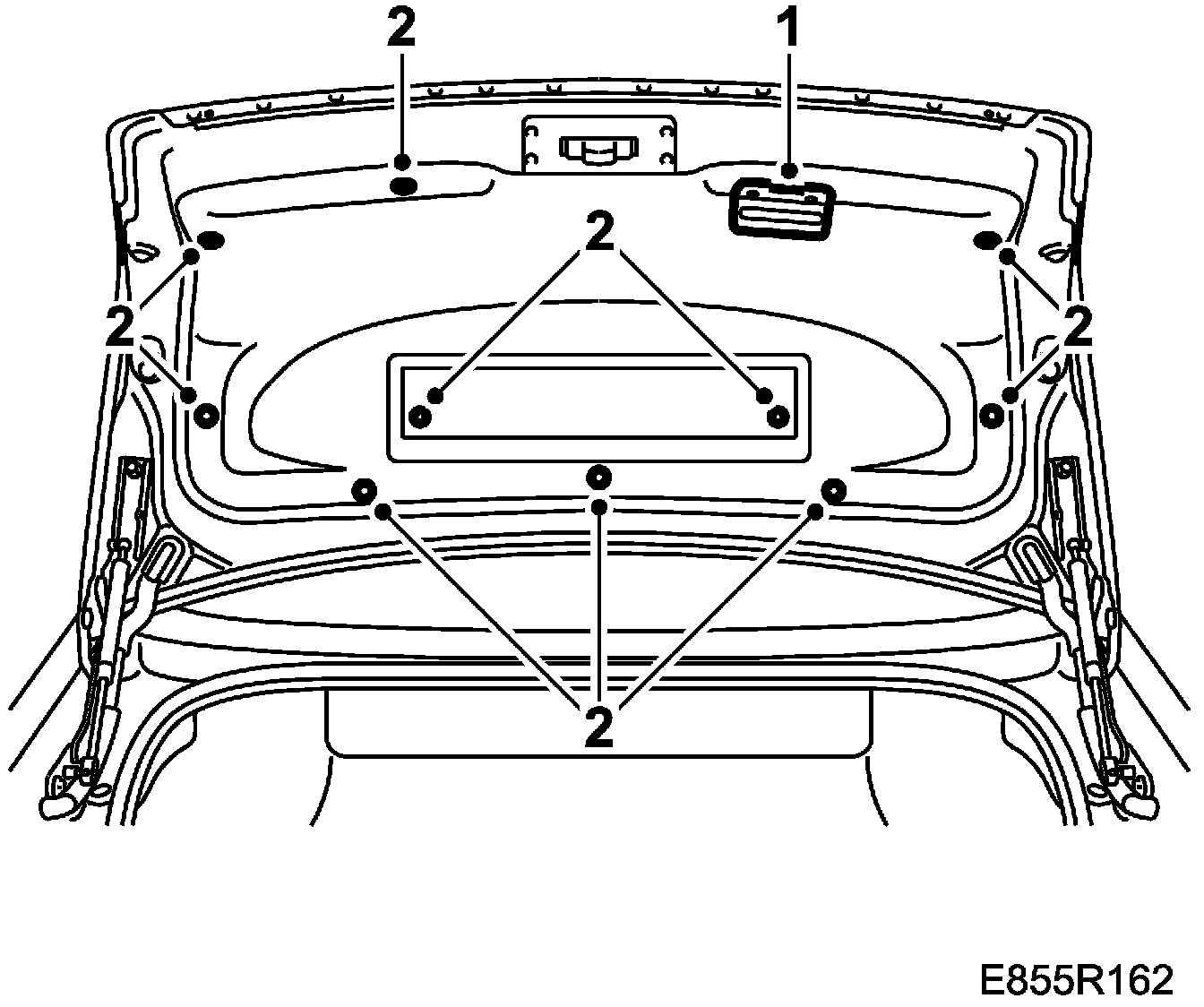

To fit

1. US/CA cars: Insert the emergency handle through the hole in the trim.
2. Fit the trim in place.
3. Fit the trim's clips.







4. Fit the handle.

US/CA: Fit the handle to the trim. Check the function of the emergency handle.
