Emergency Opening,
Tailgate
Procedure

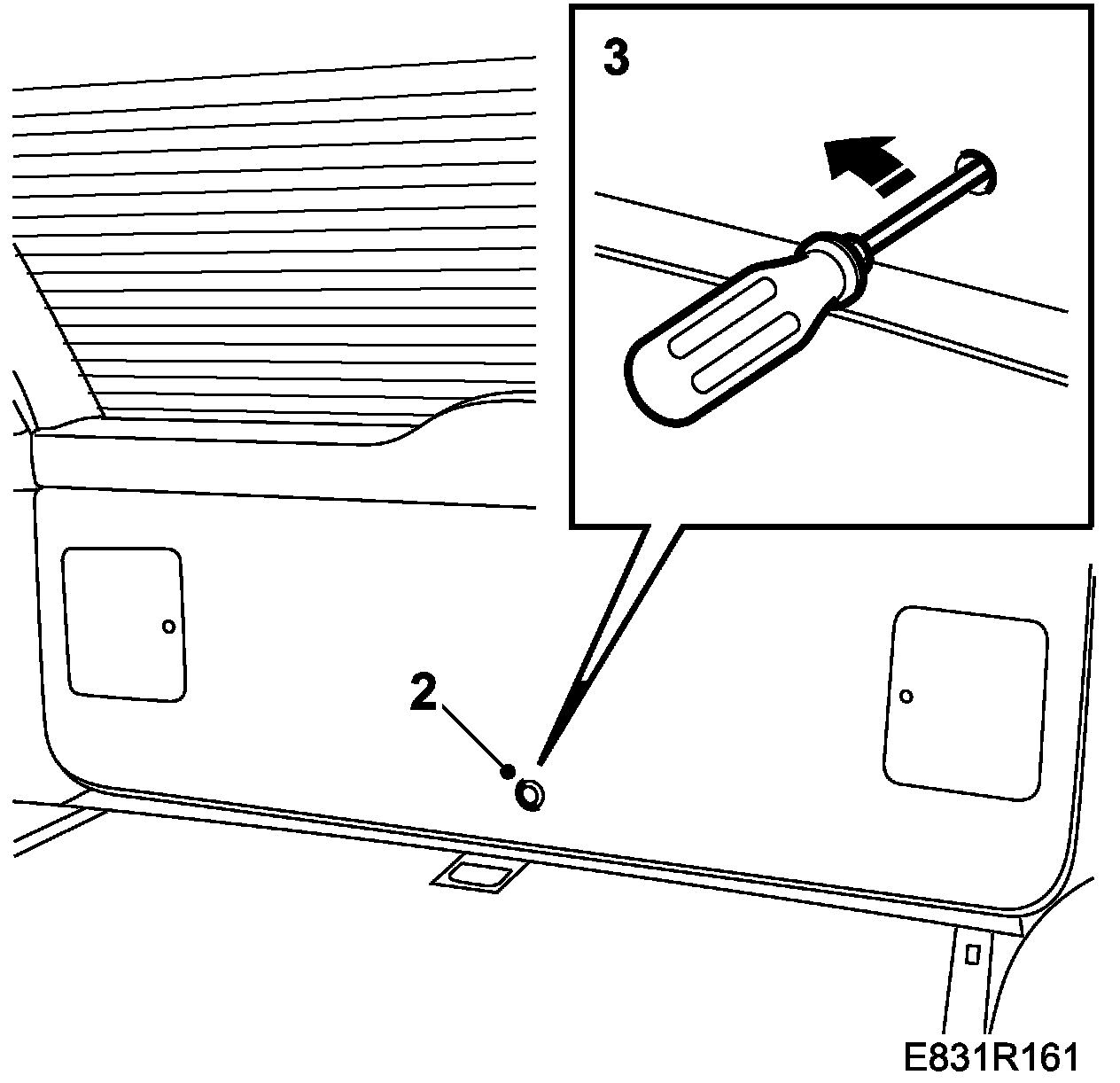

1.
Open the rear door and fold the backrest forward.
2.
Remove the rubber plug.
3.
Disengage it using a screwdriver.
4.
Open the
tailgate
.
