Electrical Opening of Tailgate Lock, 5D

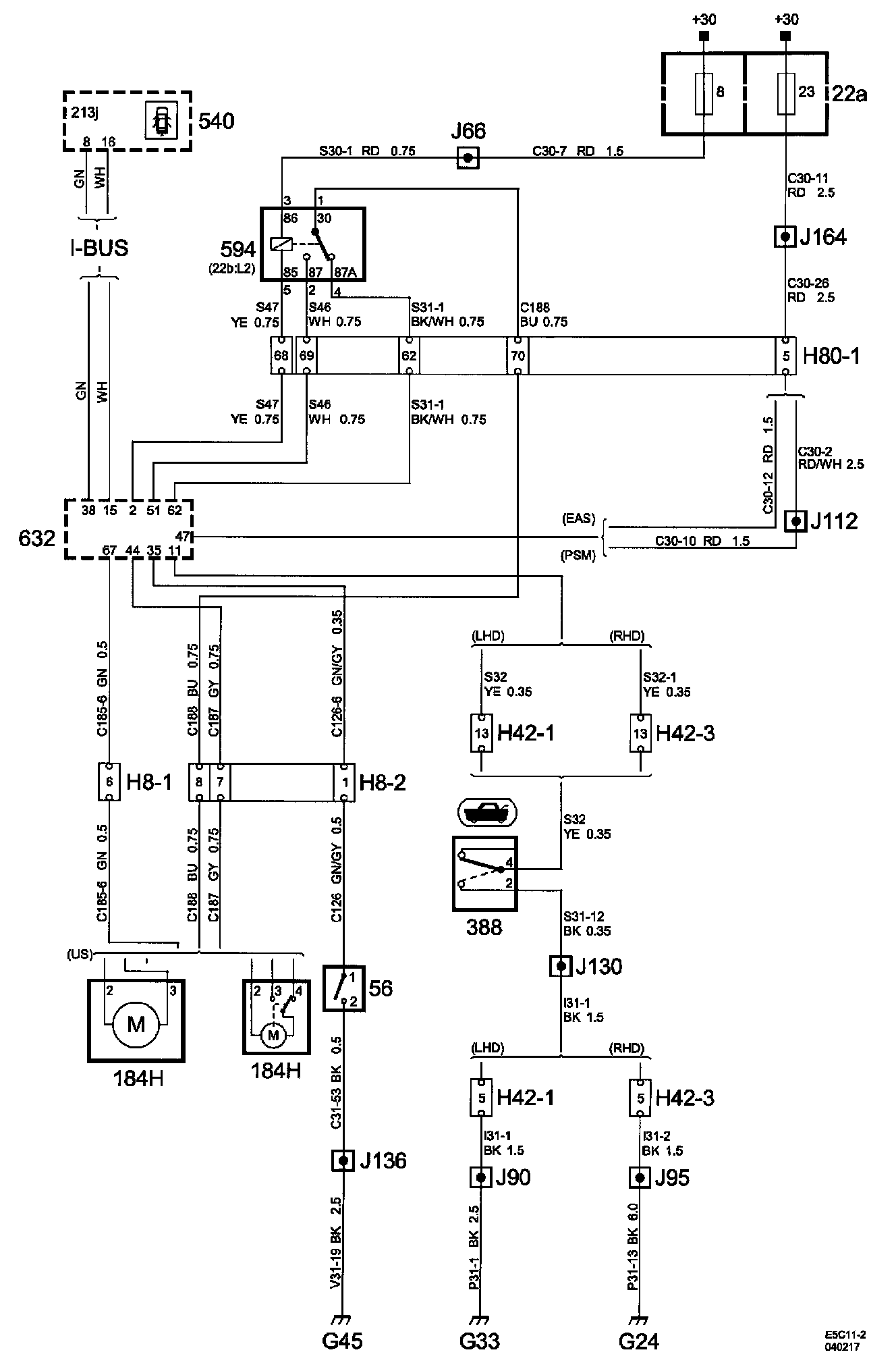

Electrical Opening Of Tailgate Lock, 5D:

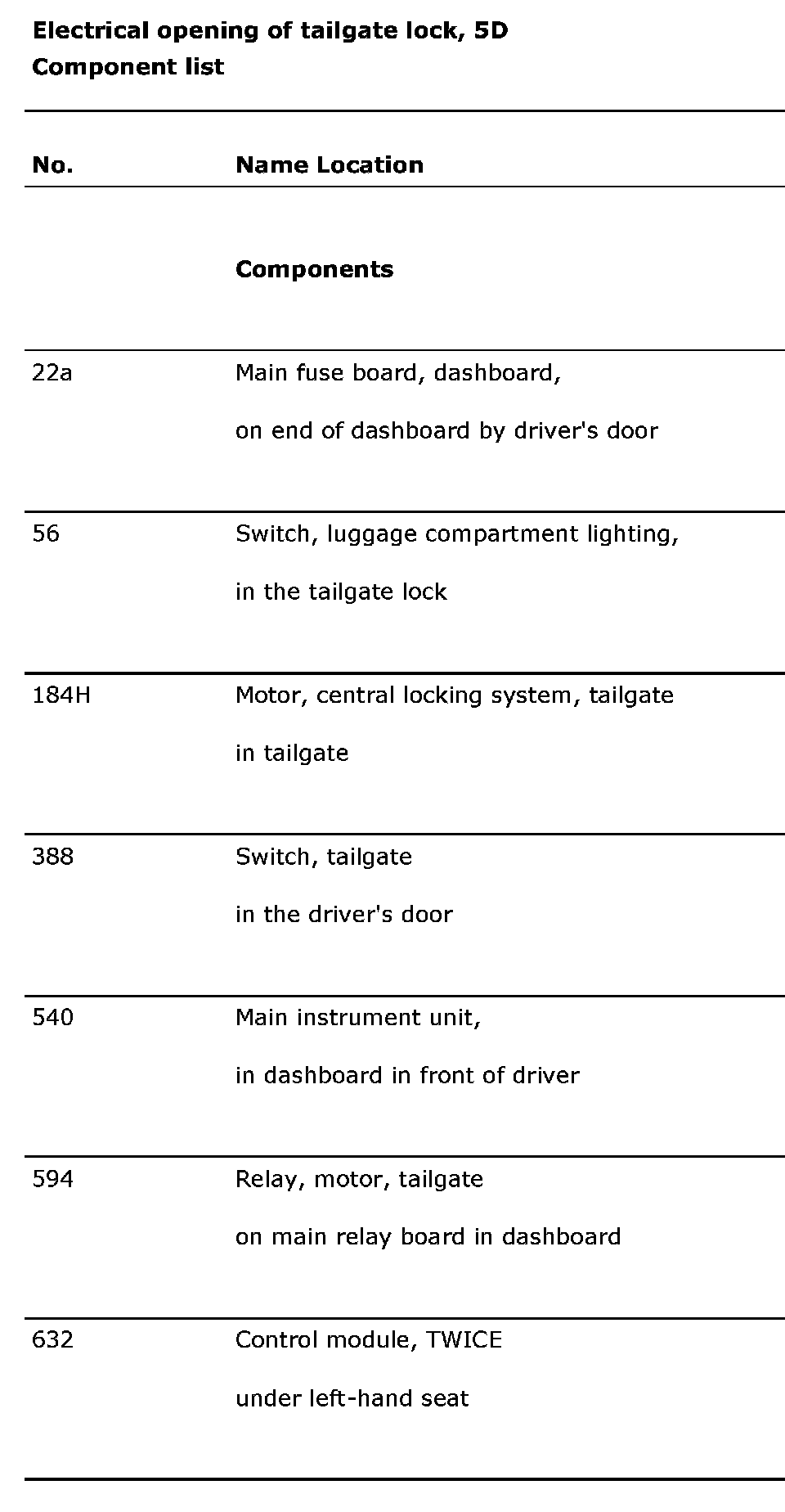

List Of Components (Part 1):

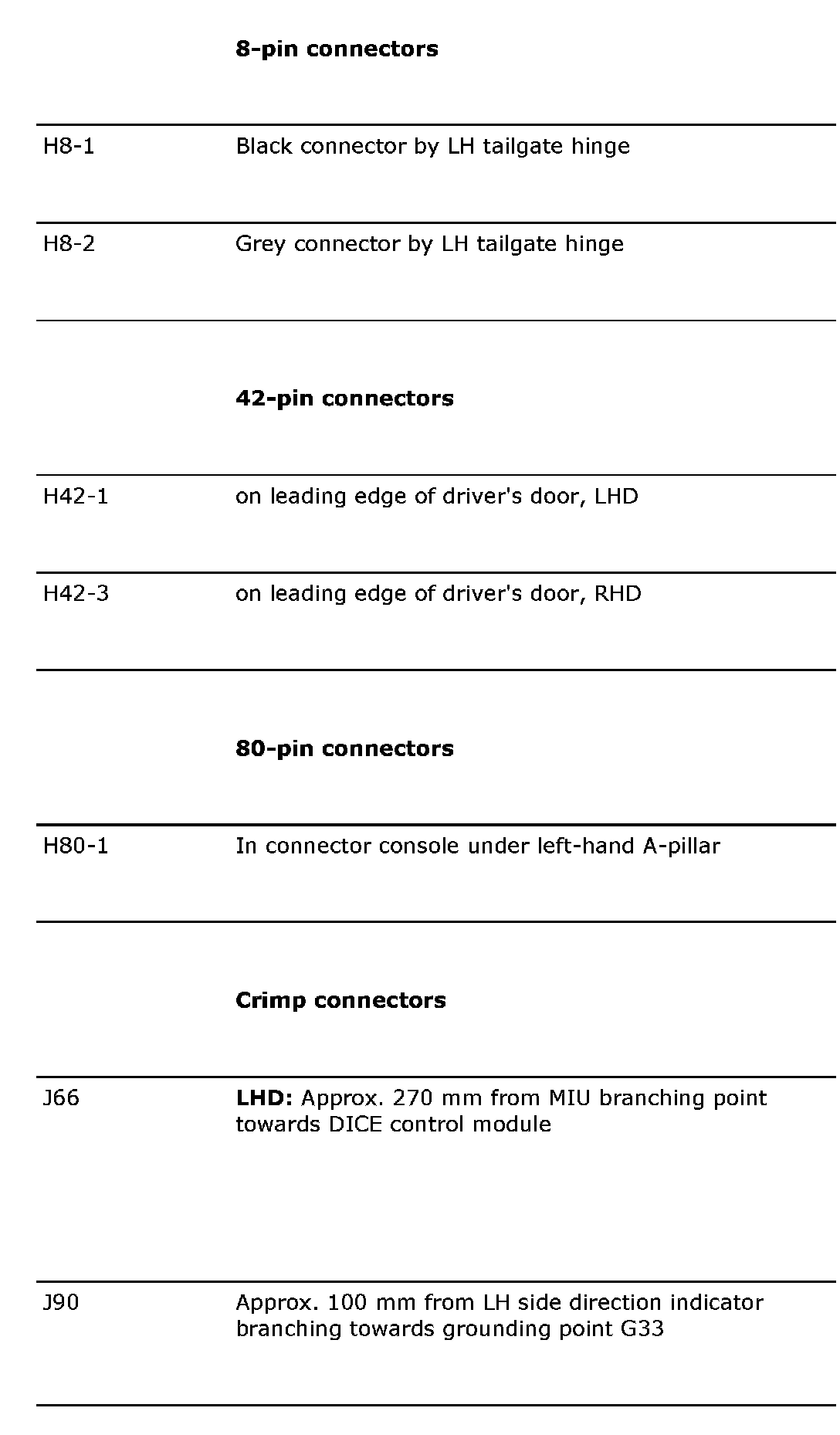

List Of Components (Part 2):

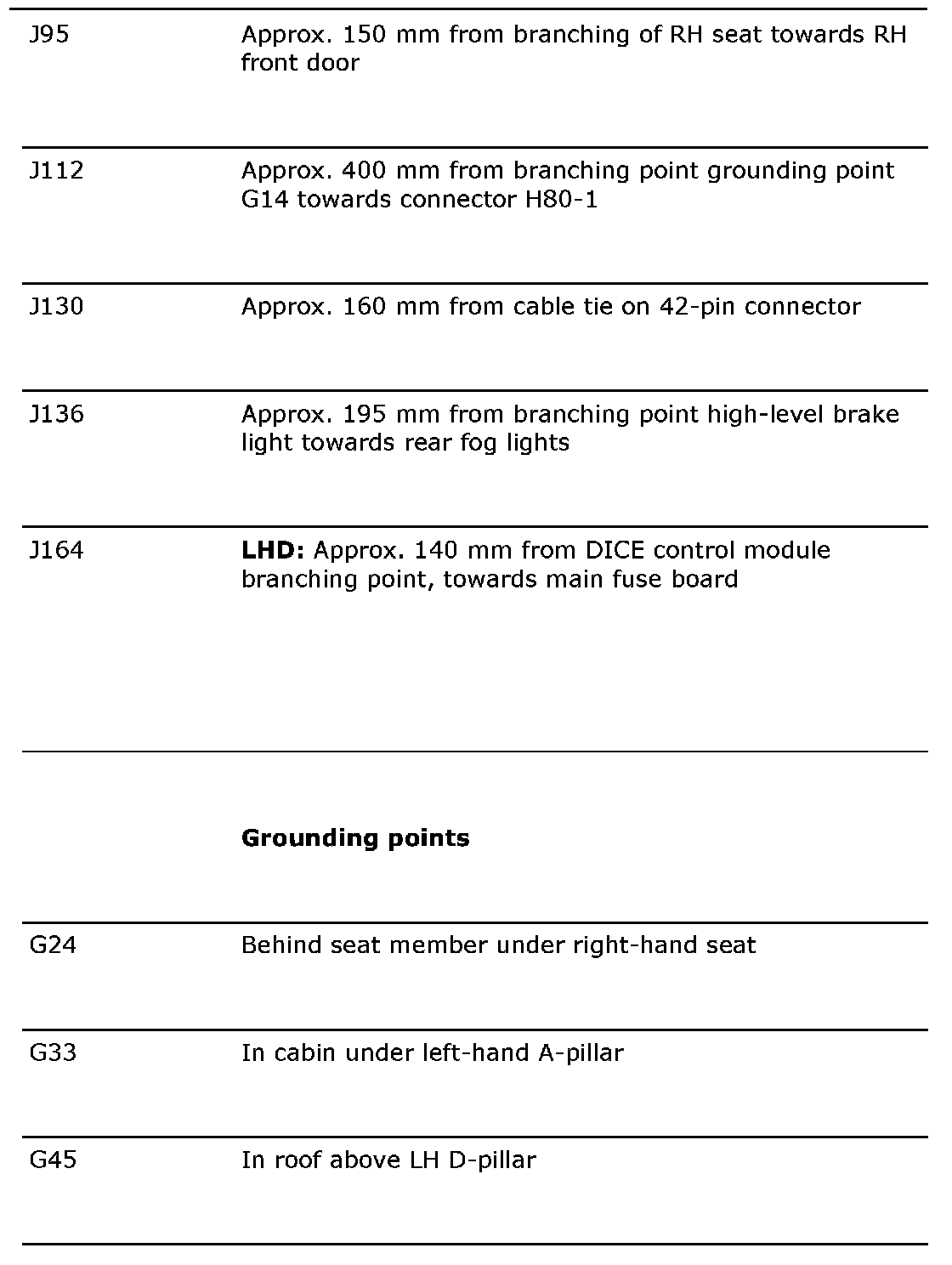

List Of Components (Part 3):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
