Lock Unit, Filler Flap, 4D

Lock Unit, Filler Flap, 4D

To remove

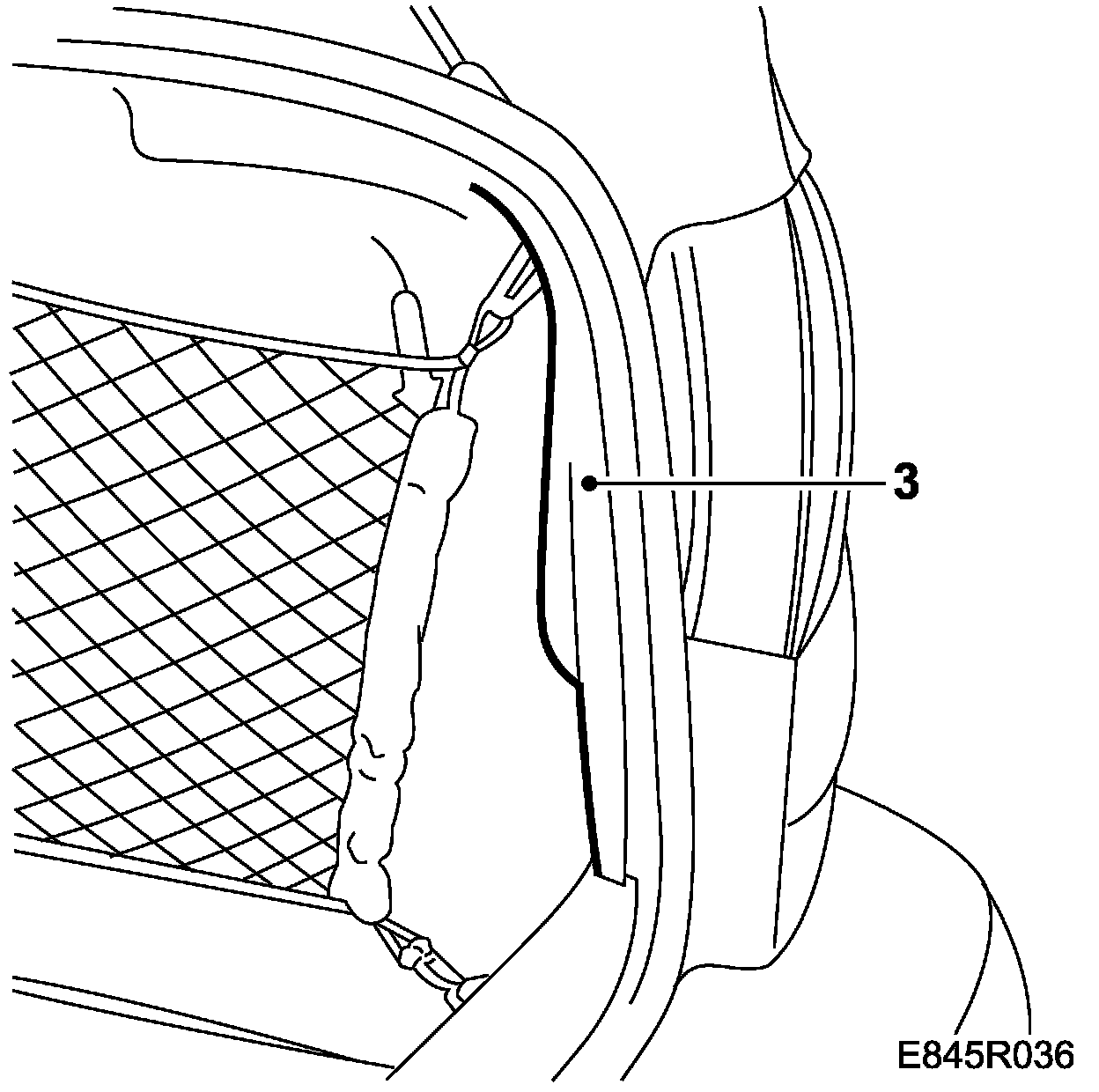

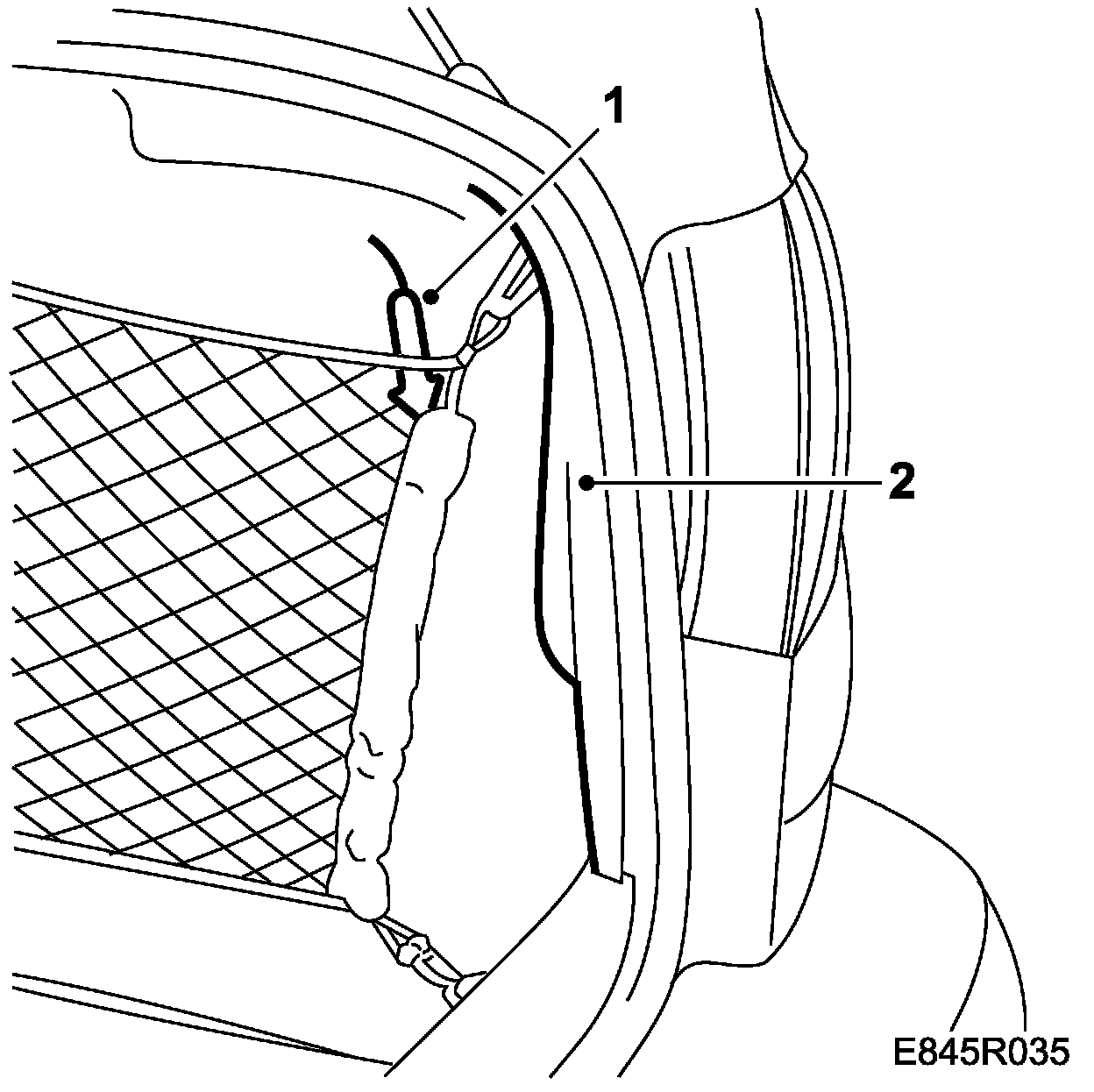

1. Open the hatch with the handle in the luggage compartment.
2. Remove the mat inside the fuel tank filler flap.

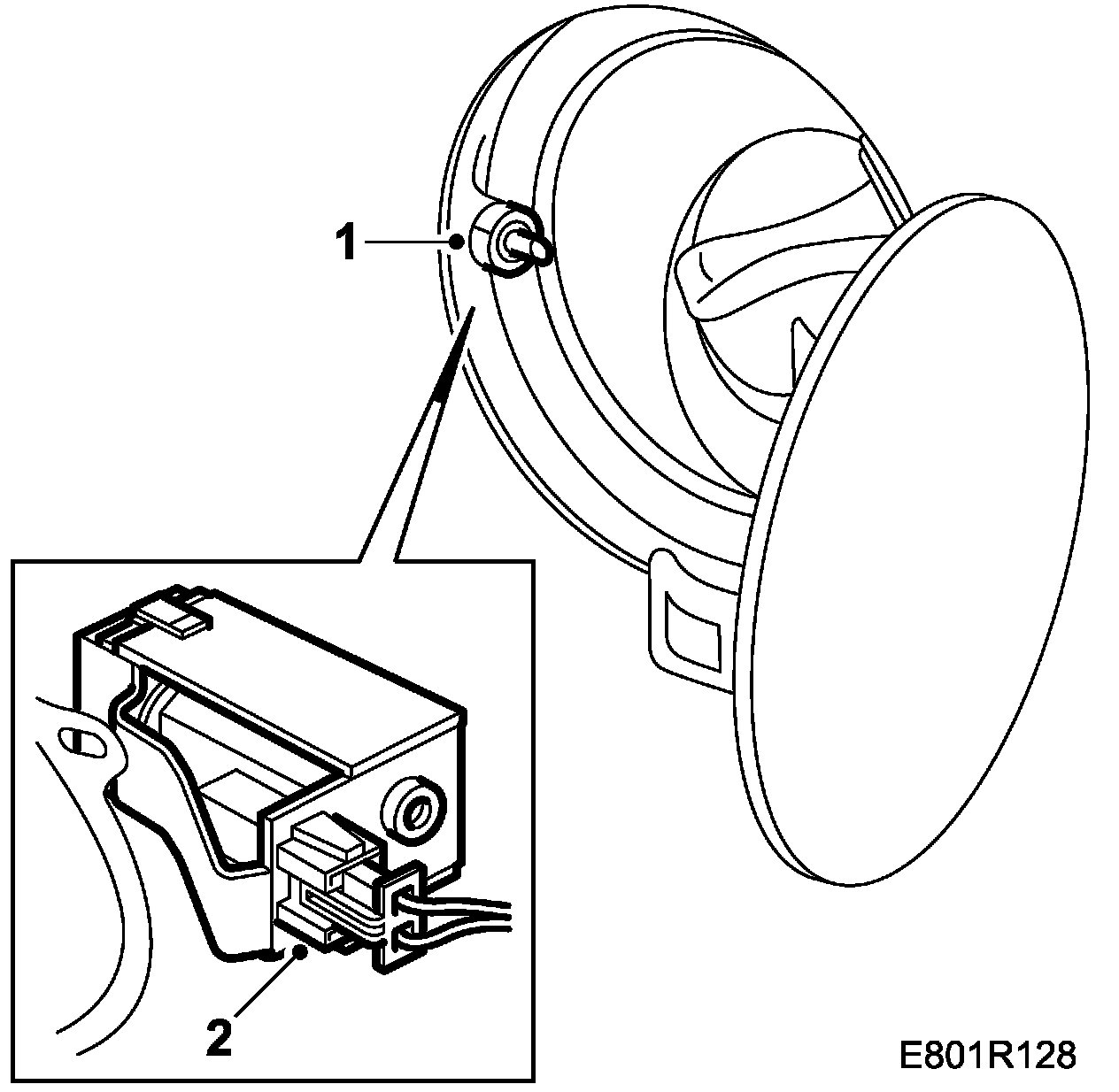

3. Unscrew the nut inside the fuel tank filler flap.







4. Unplug the connector on the lock unit and remove the lock.

To fit







1. Screw on the lock unit with the nut inside the tank hatch.
2. Plug in the connector on the lock unit.
3. Fold back the carpet.
