Rear Door Panel: Service and Repair

Door Trim, Rear

To remove

1. Open the window.

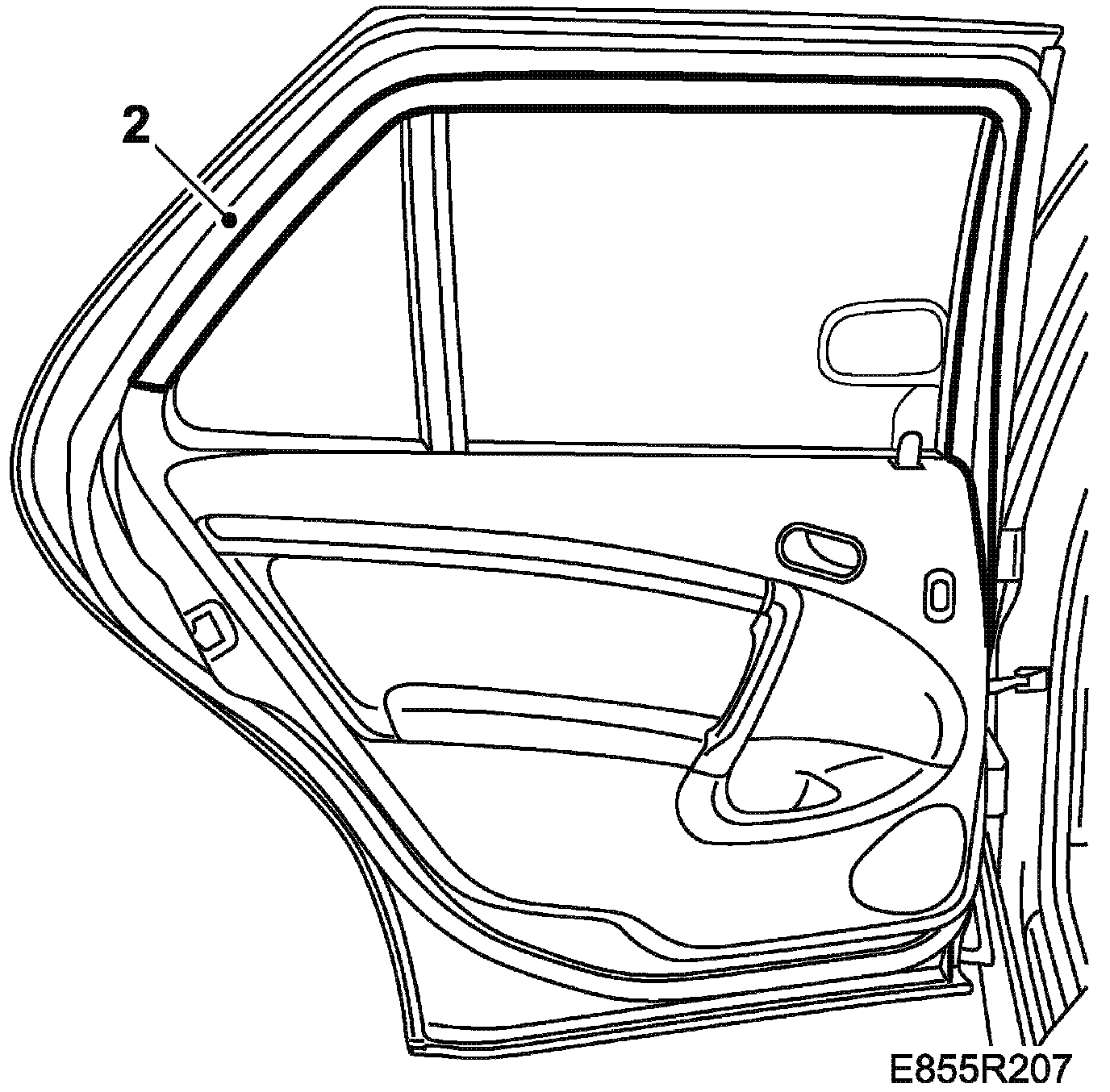

2. Remove the trim moulding for the door frame (secured with clips).







3. Remove the door opening handle cover and screw. Remove the door opening handle.

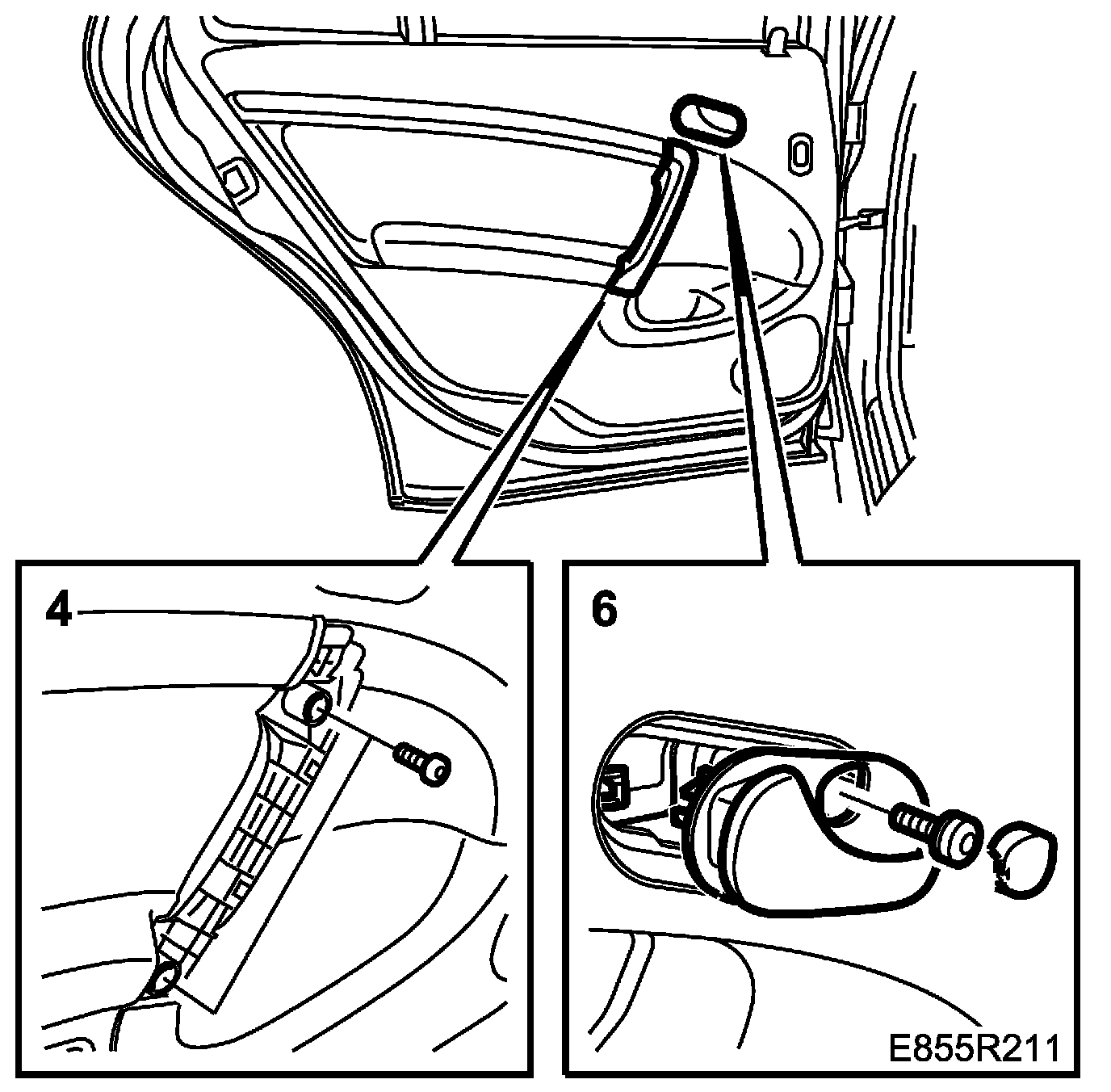

4. Remove the handle's cover. Prise off the cover using two screwdrivers.
5. Remove the screws on the handle.
6. Detach the door trim clips from the door.
7. Lift off the door trim from the door and lock button.

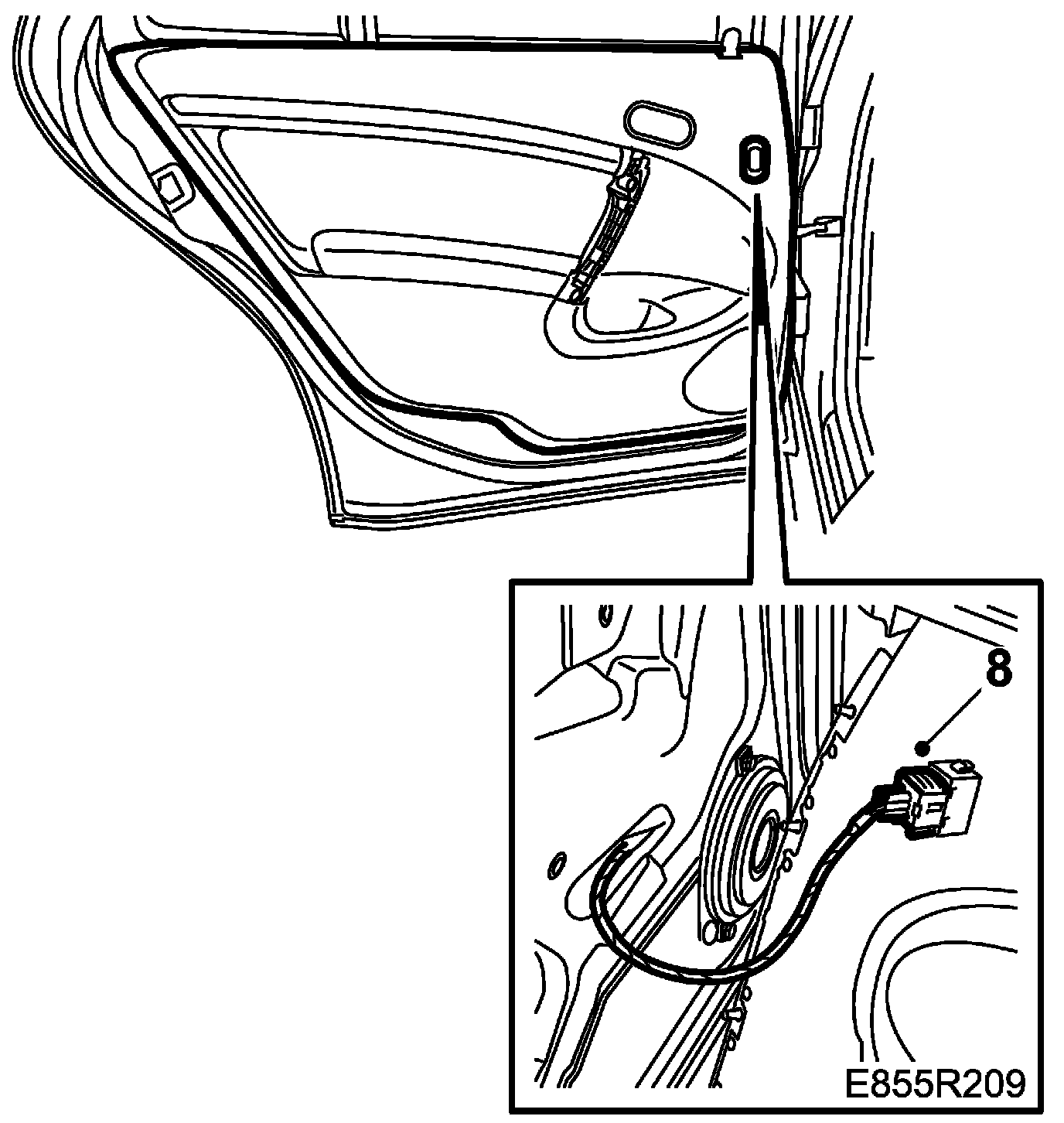

8. Remove the connector.







To fit

1. Plug in the connector.







2. Lift the door trim on the lock button and door.
3. Press in the door trim's clips.
4. Fit the screws on the handle.







5. Fit the handle's cover. Start with the upper section.
6. Fit the door opening handle as well as cover and screw.

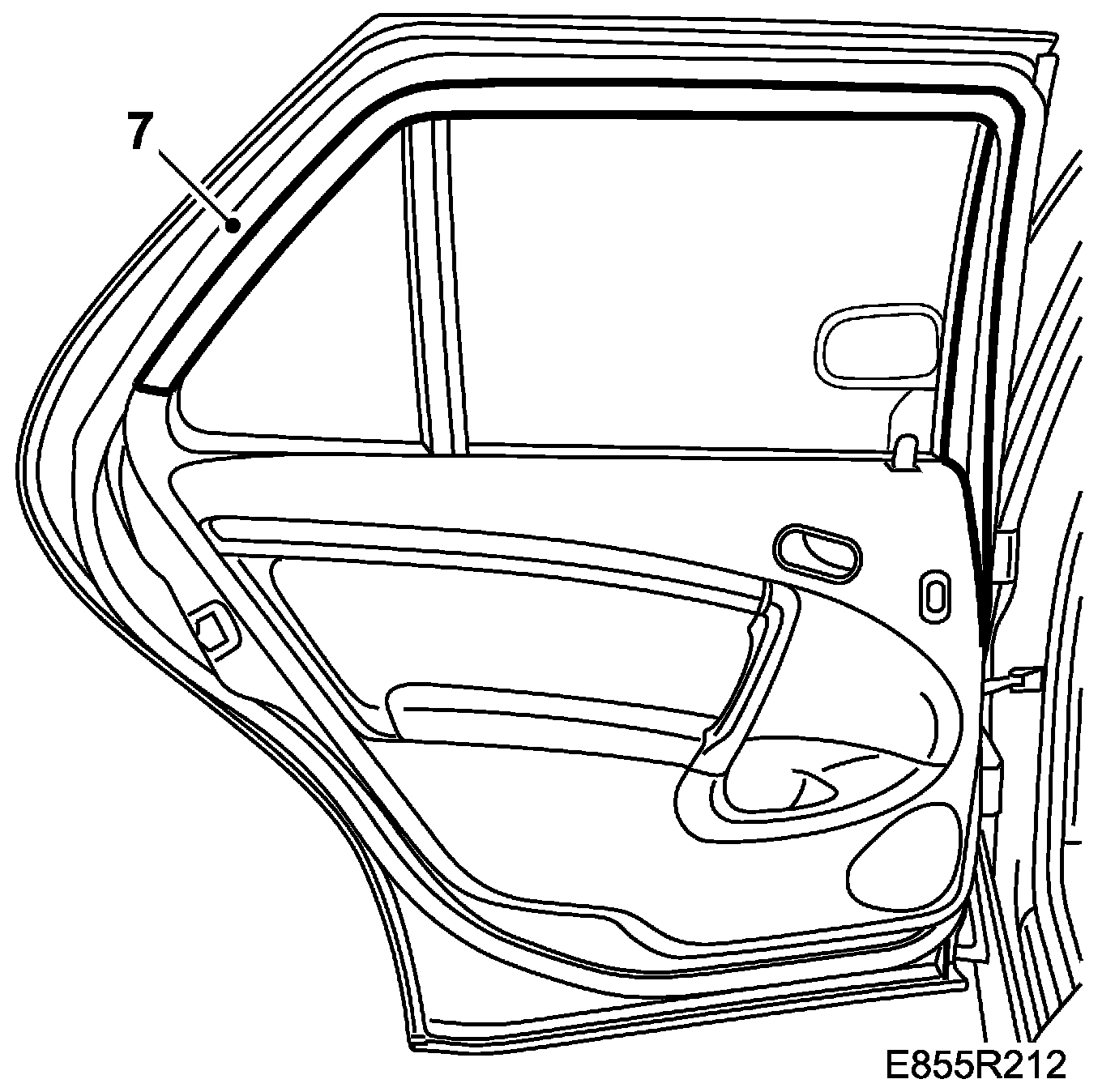

7. Fit the trim moulding for the door frame (secured with clips).







8. Close the window.
