Washer Fluid System

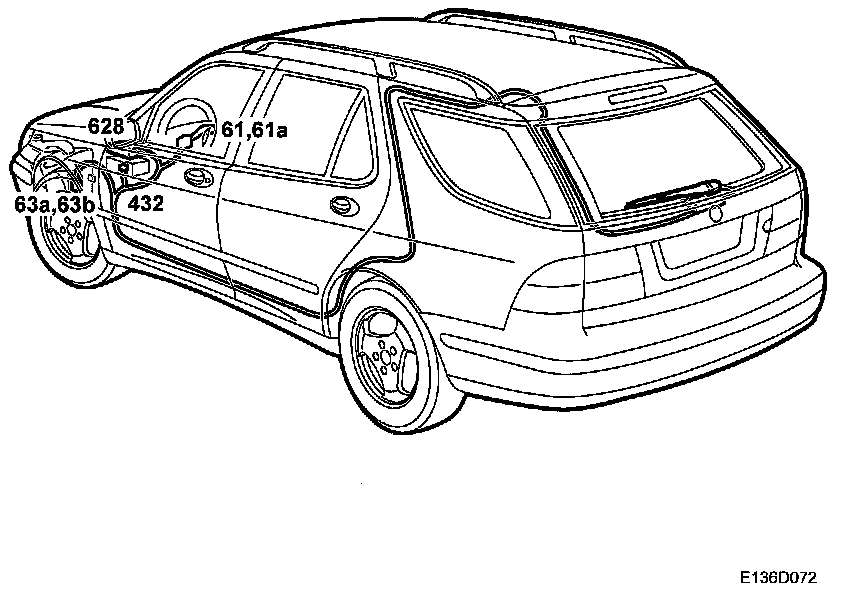

System Overview, Washer Fluid System







^ Control module, DICE (628)
^ Stalk switch, windscreen wipers (61)
^ Switch, rear window wiper 5D (61a)
^ Relay, washer fluid pump (432)
^ Motor, pump, washer fluid, rear window (63a)
^ Motor, pump, washer fluid, windscreen (63b)
